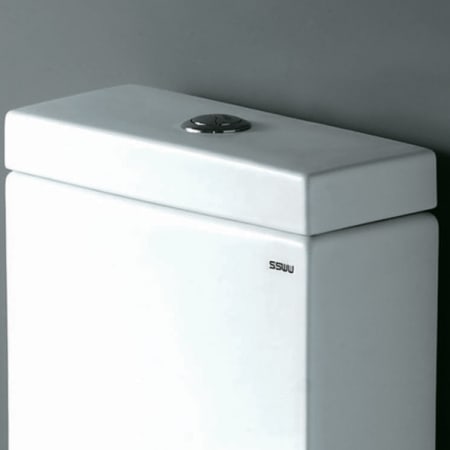

Top

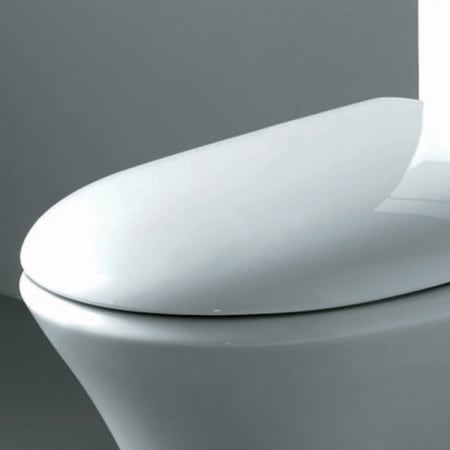

Side

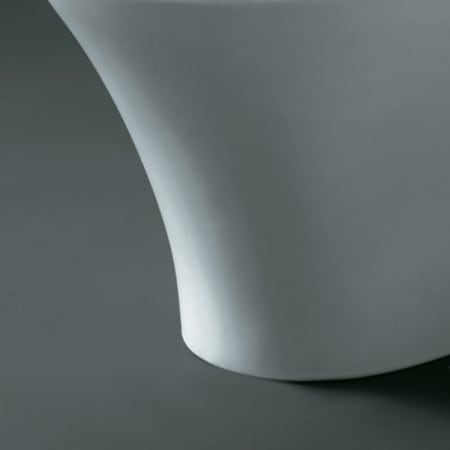

Bottom
Item # bci1882920

Ariel Milano Elongated One Piece Toilet with .8/1.6 GPF Dual Flush and Seat

Model:CO-1003

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Ariel CO1003 Features:

  • One-piece configuration provides a uniform look and simplifies installation
  • Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
  • Made from vitreous china and finished with a high quality glaze
  • Push button dual flush option
  • Floor mounted installation
  • Concealed trapway - provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
  • Toilet seat included

Ariel CO1003 Specifications:

  • Overall Height: 29" (measured from the bottom of the base to the highest point on the toilet)
  • Overall Length: 29" (measured from the back of the tank to the front of the rim)
  • Overall Width: 15" (measured from the furthest point on the left to the furthest on the right)
  • Bowl Height: 15" (measured from the bottom of the base to the rim)
  • Flow Rate: .8/1.6 gallons-per-flush
  • Tank Width: 13" (measured from left most to right most points on tank)
  • Tank Length: 7" (measured from back most to front most points on tank)
  • Trapway (Discharge Passageway) Size: 2"
  • Distance Between Toilet Seat Installation Holes: 6"

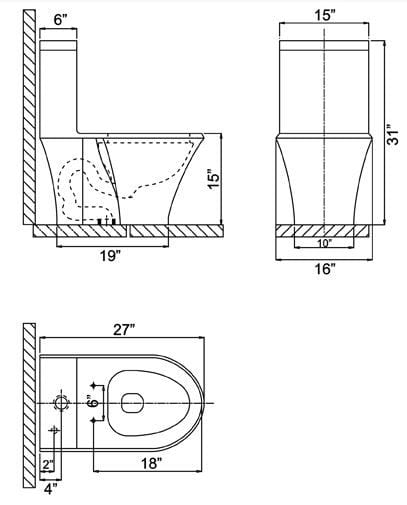

  • Dimensional specs

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Bowl Height
15 in.
Depth
29 in.
Gallons Per Flush
.8, 1.6
Height
29 in.
Length
29 in.
Product Weight
70 lbs.
Rough In
12 in.
Width
15 in.

Dimensions and Measurements

Bowl Height
15 in.
Depth
29 in.
Gallons Per Flush
.8, 1.6
Height
29 in.
Length
29 in.
Product Weight
70 lbs.
Rough In
12 in.
Width
15 in.

Included Components

Seat Included
Yes

Included Components

Seat Included
Yes

Characteristics and Features

Bowl Shape
Elongated
Configuration
One Piece
Design Features
Dual Flush, Concealed Trapway
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Theme
Modern
Trip Lever Placement
Top
Water Efficient
Yes

Characteristics and Features

Bowl Shape
Elongated
Configuration
One Piece
Design Features
Dual Flush, Concealed Trapway
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Theme
Modern
Trip Lever Placement
Top
Water Efficient
Yes

Warranty and Product Information

ADA
No
CA Drought Compliant
Yes
Country Of Origin
China
WaterSense Certified
Yes

Warranty and Product Information

ADA
No
CA Drought Compliant
Yes
Country Of Origin
China
WaterSense Certified
Yes
