Item # bci841968
The Kichler 15074AZT has been discontinued
** See similar or replacement items below **
Item # bci841968

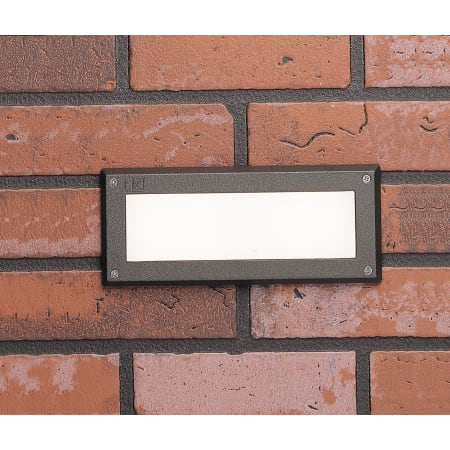

Kichler 9.5" Brick Light with White Glass Lens
Model:15074AZT
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Cast aluminum faceplate with white acrylic diffuser
- Fully sealed, heat-resistant glass lens
- Includes (2) 10W Halogen lamps
- Stainless steel mounting bracket
- For installation directly into masonry or concrete only
- Wire connection must be made inside fixture housing
- 75° supply wire required
- To upgrade your fixture to LED, purchase the 18042 or 18043 drop-in lamp
Dimensions:
- Height: 4"
- Width: 9.5"
- Extension: 3.25"
Electrical Specifications:
- Bulb Type: Halogen
- Bulb Socket Type: Bi-Pin
- Maximum Wattage: 10
- Bulb Shape: T3
- Voltage: 12 (Low Voltage)
- See the attached spec sheets and catalog pages for full photometric details
Dimensions and Measurements
Height | 4 in. |
Nominal Height | 4 in. |
Nominal Width | 10 in. |
Product Weight | 2.7 lbs. |
Width | 9.5 in. |
Dimensions and Measurements
Height | 4 in. |
Nominal Height | 4 in. |
Nominal Width | 10 in. |
Product Weight | 2.7 lbs. |
Width | 9.5 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Bulb Base | Bi Pin |
Bulb Shape | T3 |
Bulb Type | Halogen |
Hardscape Light Type | Brick Lights |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Theme | Transitional |
Characteristics and Features
Bulb Base | Bi Pin |
Bulb Shape | T3 |
Bulb Type | Halogen |
Hardscape Light Type | Brick Lights |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Theme | Transitional |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 12 |
Voltage Type | Low Voltage (12-24V) |
Wattage | 10 |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 12 |
Voltage Type | Low Voltage (12-24V) |
Wattage | 10 |
Warranty and Product Information
Collection | Brick Light |
Country Of Origin | China |
Location Rating | Wet Location |
Warranty and Product Information
Collection | Brick Light |
Country Of Origin | China |
Location Rating | Wet Location |
