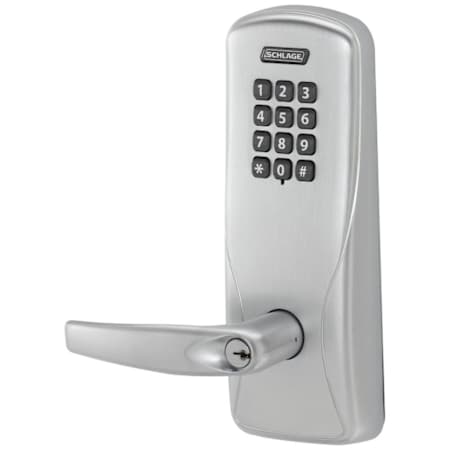

CO-Series Manually Programmable Classroom / Storeroom Commercial Electronic Mortise Lock with Keypad and Athens Lever
Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-100 is an offline keypad programmable lock, recommended for openings with a relatively small number of users. (Maximum of 500 Users.)
Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more.
In Classroom application, a toggle credential can be used to put the lock into a "locked" or "unlocked" state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.
- Standalone, offline, manually programmable lock
- User rights stored on the lock
- Normal, toggle, pass through, and freeze credential attributes available
- ANSI A156.25 / BHMA Grade 1
- Mechanical key override is standard and compatible with multiple cylinder types
- Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
- Mortise locking mechanism
- Schlage key-in-lever 6 pin cylinder
- 12 button keypad compatible with 3-6 digit PIN codes
- Athens Style Lever
- Maximum Users: 500
- Credential Verification Time: Less Than 1 Second
- Operating Temperature - Exterior: -31 to 151F (-35 to 66C)
- Operating Temperature - Interior: 32 to 120F (0 to 49C) due to battery
- Operating Humidity: 0 - 100% condensing
- Exterior Dimensions:
- Height: 9.46"
- Width: 3.44"
- Projection: 3.67"
- Interior Dimensions:
- Height: 10.69"
- Width: 3.44"
- Projection: 2.96"
- Door Thickness: 1-3/8" to 2-3/4"
- Backset: 2-3/4"
- Strike: 4-7/8" x 1-1/4" Square Corner T Strike with 1-3/16" Curved Lip and Dust Box
- Latch: Armor Front 1-1/4" Width Square Corner with Anti-Friction 3/4" Throw
There are industry standards, and then there are Schlage standards. If it has the Schlage name on it, you can be sure they put it through more punishment than you ever will. Schlage has a rich history in security. For over 90 years they've endeavored to develop a complete line-up of security solutions you can trust. Simply put, they believe everyone deserves peace of mind, every day.
Additional Schlage Links
This Schlage item can also be referenced by the following color/finish specific model #:
- Schlage CO100MS70KPATH643
- Schlage CO100MS70KPATH605
- Schlage CO100MS70KPATH625
- Schlage CO100MS70KPATH606
- Schlage CO100MS70KPATH612
- Schlage CO100MS70KPATH626
- Schlage CO100MS70KPATH619
