Big Ass Fans E-Series 12 Ft 6 Blade Commercial / Industrial Ceiling Fan

Model: F-ES2-1201A731C716S34
|
Item: bci4394391

$4,199.00
Finish: Black -
Made To Order
Finish: Black -
Made To Order
placeholder
Free Shipping!
Leaves the Warehouse in 2 to 3 weeks
-
Return & Shipping Details

Details

Want superior air movement minus all the noise? You got it. The E12 is a money-saving, statement-making, air-moving machine. The 12-ft (3.7-m) wingspan creates serious airflow for spaces up to 3,600 square feet — perfect for keeping guests and workers comfortable in shops, gyms, warehouses and spaces of all types. The E12 increases comfort and decreases energy bills year-round (yep, even in the winter) with air movement you will feel but never hear.

Features

  • Provides cooling over the same area as 42 standard ceiling fans
  • Ideal for usage in spaces up to 60 x 60 ft and ceiling height of 14-25 ft
  • Silent and energy efficient gearless, direct drive DC motor (<35 dBA)
  • Patented airfoil system maximizes performance and efficiency with six airfoils and cuffed winglets
  • Fully adjustable airflow with variable speed controller
  • Reduced heating energy consumption by up to 30% on lowest setting

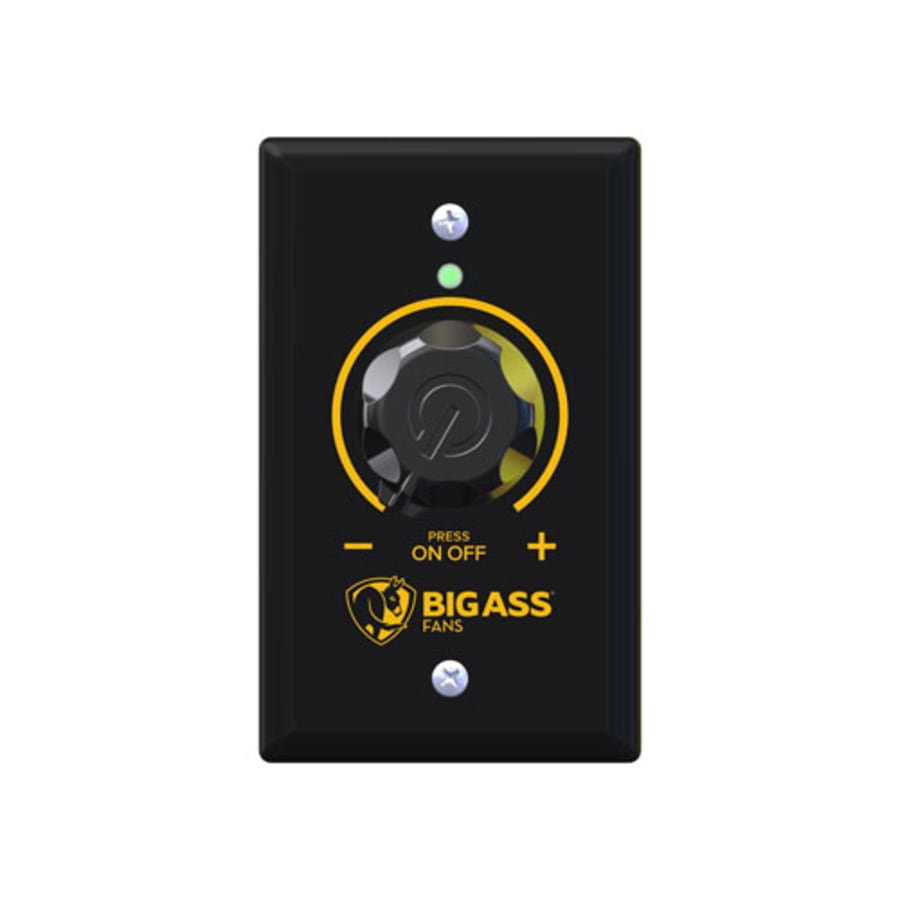

  • Includes: wired wall control
    • mounts in single-gang junction box or to wall surface
  • Can be installed on sloped ceilings
    • Includes:  (1) 36" extension tube
  • Manufactured in the United States
    • Intended for commercial use
    • UL and CSA rated for dry locations
    • 1 year warranty on motor, drive, controller, electrical, and all other components

Dimensions

  • Height: 44"
  • Width: 144"
  • Product Weight: 79.0 lbs

Blade Specifications

  • Number of Blades: 6
  • Blade Span: 144"
  • Blades Included: Yes
  • Reversible Blades: No
  • Fan Blade Material: Metal

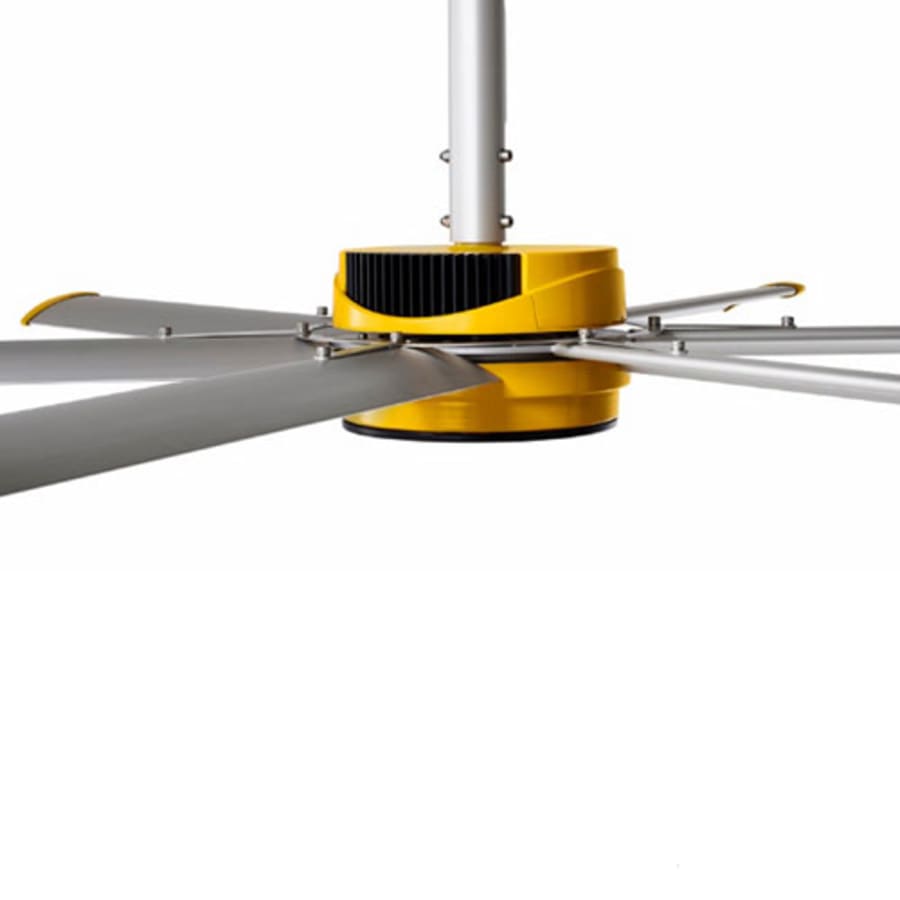

Motor Specifications

  • Speeds: Variable
  • Max RPM: 85
  • Reversible Motor: Yes

Electrical Specifications

  • Voltage: uses 110-125 VAC, 10 A circuit (minimum)
  • Rated Current: 4.1 A

Dimensions and Measurements

Blade Span
144 in.
Downrod Size(s)
36 in.
Height
44 in.
Product Weight
79 lbs.
Width
144 in.

Dimensions and Measurements

Blade Span
144 in.
Downrod Size(s)
36 in.
Height
44 in.
Product Weight
79 lbs.
Width
144 in.

Included Components

Blades Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Light Kit Included
No

Included Components

Blades Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Light Kit Included
No

Characteristics and Features

Blade Finish
Gray
Bulb Visible
No
Control Type
Wall
Energy Efficient
Yes
Fan Blade Material
Metal
Fan Type
Hanging
Light Kit Compatible
No
Low Ceiling Adaptable
No
Material
Aluminum
Motor
DC Motor
Number of Blades
6
Reversible Blades
No
Reversible Motor
Yes
Sloped Ceiling Compatible
Yes
Theme
Contemporary

Characteristics and Features

Blade Finish
Gray
Bulb Visible
No
Control Type
Wall
Energy Efficient
Yes
Fan Blade Material
Metal
Fan Type
Hanging
Light Kit Compatible
No
Low Ceiling Adaptable
No
Material
Aluminum
Motor
DC Motor
Number of Blades
6
Reversible Blades
No
Reversible Motor
Yes
Sloped Ceiling Compatible
Yes
Theme
Contemporary

Electrical and Operational Information

Power Source
Hardwired
RPM (High)
85
Voltage
110, 125
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)

Electrical and Operational Information

Power Source
Hardwired
RPM (High)
85
Voltage
110, 125
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
ETL, CSA
Collection
E-Series
Country Of Origin
USA
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
Series
Industrial, Commercial

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
ETL, CSA
Collection
E-Series
Country Of Origin
USA
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
Series
Industrial, Commercial
