CLIP top BLUMOTION was designed with you in mind. The CLIP technology makes cabinet doors easy to snap on and off for quick installations. Compatible with virtually any cabinet, your designs can range from face frame to frameless styled cabinets.
CLIP top BLUMOTION has three-dimensional adjustments. In this video you will see how to make a side adjustment, height adjustment, and depth adjustment.
Nickel
CLIP top BLUMOTION was designed with you in mind. The CLIP technology makes cabinet doors easy to snap on and off for quick installations. Compatible with virtually any cabinet, your designs can range from face frame to frameless styled cabinets.
CLIP top BLUMOTION has three-dimensional adjustments. In this video you will see how to make a side adjustment, height adjustment, and depth adjustment.

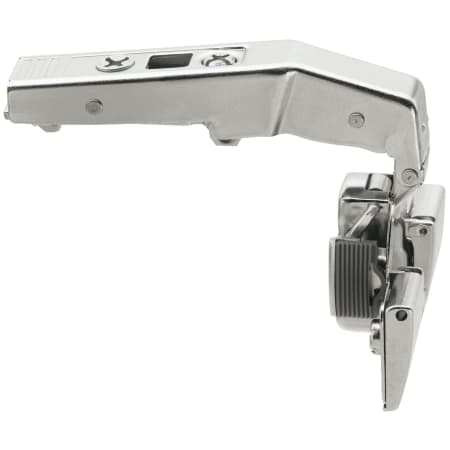

Blum CLIP Top Inset INSERTA Blind Corner Cabinet Door Hinge with 95-Degree Opening Angle and Self Close Function

Model: 79T9590B
|
Item: bci1672765

$6.05
Finish: Nickel -
81 In Stock
placeholder
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

Features:

  • Includes a single (1) hinge in each order
  • Constructed of high quality steel for durability and dependability
  • Covered by Blum's limited lifetime manufacturer warranty
  • Self closing function will allow your cabinet door to close firmly and securely
  • 3-way adjustable hinge for easy and customizable installation
  • Designed for a 95 degree opening angle
  • Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
  • All necessary mounting hardware is included

Specifications:

  • Hinge Mount: Full Inset, Full Overlay
  • Opening Angle: 95
  • Material: Steel
  • Installation Type: Clip On
  • Cup Diameter: 1-3/8"
  • Bore Distance Min/Max: 3", 7"
  • Cup Depth: 1/2"
  • Mount Centers: 1-3/4"

Product Technologies:

  • Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It's important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you'll be amazed at the big difference a small upgrade can make.
  • Material - Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
  • BLUMOTION: BLUMOTION is the soft close system from Blum. Whether large or small, heavy or light, BLUMOTION soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use.
  • Mounting Type - INSERTA™: Blum’s unique INSERTA™ system simplifies installation by using specialized expanding dowels with a push down lever and pre-drilled holes. Once the dowel have been inserted into the holes, just push down the lever to cause the dowels to expand and create a secure fitting. No tools needed once the holes have been drilled.

Dimensions and Measurements

Angle
95 Degrees
Boring Distance
3, 7 mm
Cup Depth
0.5 in.
Cup Depth mm
12.6 mm
Cup Diameter
1.38 in.
Cup Diameter mm
35 mm
Inset
Full
Max Cabinet Door Thickness
0.9375 in.
Max Cabinet Door Thickness mm
24 mm
Mount Centers
1.77 in.
Mount Centers mm
45 mm
Opening Angle
95
Overlay
Inset
Quantity
1

Dimensions and Measurements

Angle
95 Degrees
Boring Distance
3, 7 mm
Cup Depth
0.5 in.
Cup Depth mm
12.6 mm
Cup Diameter
1.38 in.
Cup Diameter mm
35 mm
Inset
Full
Max Cabinet Door Thickness
0.9375 in.
Max Cabinet Door Thickness mm
24 mm
Mount Centers
1.77 in.
Mount Centers mm
45 mm
Opening Angle
95
Overlay
Inset
Quantity
1

Included Components

Installation Hardware Included
Yes

Included Components

Installation Hardware Included
Yes

Characteristics and Features

3-Way Adjustable
Yes
Adjustable
Yes
Adjustable Depth
Yes
Adjustable Height
Yes
Adjustable Side to Side
Yes
Arm Type
Straight Arm
Assembly Required
No
Bulk Pack
No
Cabinet Type
Face Frame, Panel (Frameless)
Demountable
Yes
Hinge Mount
Full Inset, Full Overlay
Hinge Type
Angled, Concealed Euro, Inset
Installation Type
Clip On
Material
Steel
Push to Open
No
Self Closing
Yes
Soft Close
No

Characteristics and Features

3-Way Adjustable
Yes
Adjustable
Yes
Adjustable Depth
Yes
Adjustable Height
Yes
Adjustable Side to Side
Yes
Arm Type
Straight Arm
Assembly Required
No
Bulk Pack
No
Cabinet Type
Face Frame, Panel (Frameless)
Demountable
Yes
Hinge Mount
Full Inset, Full Overlay
Hinge Type
Angled, Concealed Euro, Inset
Installation Type
Clip On
Material
Steel
Push to Open
No
Self Closing
Yes
Soft Close
No

Warranty and Product Information

Approved for Commercial Use
No
BHMA Certification
Grade 1
Collection
CLIP Top BLUMOTION
Country Of Origin
Austria, Brazil, USA
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
Series
CLIP Top 95°, INSERTA

Warranty and Product Information

Approved for Commercial Use
No
BHMA Certification
Grade 1
Collection
CLIP Top BLUMOTION
Country Of Origin
Austria, Brazil, USA
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
Series
CLIP Top 95°, INSERTA
