Chicago Faucets
Rough Chrome

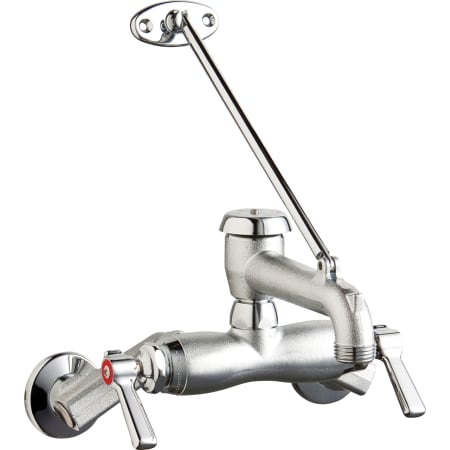

Chicago Faucets Wall Mounted Hot and Cold Water Service Faucet with Brace Rod

Model: 445-VBRRCF
|
Item: bci2225229

$397.29
Finish: Rough Chrome -
2 In Stock
placeholder
Free Shipping!
Delivered to 43026 by Tuesday, November 5th
-
Return & Shipping Details

Details

Product Features:

  • Manufactured and assembled in the United States of America
  • Faucet body and handles are covered under Chicago Faucet's limited lifetime warranty
  • Constructed of solid brass
  • High quality chrome plated finish - finishes are covered under warranty for a year
  • Wall mounted hot and cold water mixing faucet
  • Double handle operation - handles rest on 1/4 turn valve seats
  • Quaturn compression operating cartridge - covered under warranty for 5 years
  • ADA compliant
  • All hardware required for faucet installation is included

Technologies and Benefits:

  • Commercial Grade Faucet: When a product is marked as "commercial grade" it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry's highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
  • Quaturn Cartridge: The Quaturn cartridge was the industries first replaceable, completely self-contained valve cartridge. The cartridge allows the user to turn the water from full flow to off in just a quarter-turn. This unique cartridge was designed to close with the flow of the water rather than against it which reduces washer ware and virtually eliminates faucet drips. Although the Quaturn cartridge has been updated over the years to incorporate new technologies and materials it still holds true to its principals and is completely interchangeable with any Quaturn manufactured since 1913.

Product Specifications:

  • Overall Height: 6" (measured from mounting surface to highest point on faucet)
  • Spout Height: 1" (measured from mounting surface to spout outlet)
  • Spout Reach: 5-3/4" (measured from center of faucet body to center of spout outlet)
  • Required Installation Holes: 2
  • Faucet Centers: 8" (center-to-center distance between installation holes)
  • Unrestricted flow rate allows for rapid filling of sink or basin
  • Rated Operating Pressure: 20 - 125 PSI
  • Rated Operating Temperature: 40 - 140 degrees Fahrenheit
  • 2 Lever handles included with faucet
  • 1/2" connection - designed for use with standard U.S. plumbing supply bibs

Codes and Compliance:

  • ASME A112.18.1/CSA B125.1
  • Certified to NSF/ANSI 61, Section 9 by CSA
  • California Health and Safety Code 116875 (AB1953-2006)
  • Vermont Bill S.152
  • NSF/ANSI 372 Low Lead Content
  • ADA ANSI/ICC A117.1

Additional Chicago Faucets Links

Manufacturer Resources

Specification SheetExploded Parts

Dimensions and Measurements

Faucet Centers
8 in.
Height
6 in.
Product Weight
4.62 lbs.
Spout Height
1 in.
Spout Reach
5.75 in.
Water Connection
1/2"
Width
10.31 in.

Dimensions and Measurements

Faucet Centers
8 in.
Height
6 in.
Product Weight
4.62 lbs.
Spout Height
1 in.
Spout Reach
5.75 in.
Water Connection
1/2"
Width
10.31 in.

Included Components

Drain Assembly Included
No
Escutcheon Included
No
Handles Included
Yes

Included Components

Drain Assembly Included
No
Escutcheon Included
No
Handles Included
Yes

Characteristics and Features

Faucet Holes
2
Handle Material
Brass
Handle Style
Lever
Installation Type
Wall Mounted
Material
Brass
Number Of Handles
2
Spout Type
Fixed
Valve Type
Ceramic Disc

Characteristics and Features

Faucet Holes
2
Handle Material
Brass
Handle Style
Lever
Installation Type
Wall Mounted
Material
Brass
Number Of Handles
2
Spout Type
Fixed
Valve Type
Ceramic Disc

Warranty and Product Information

ADA
Yes
Application
Laundry, Shop
Approved for Commercial Use
Yes
Country Of Origin
USA
Eco Friendly
No
Lead Leaching Certified NSF/ANSI 61
Yes
Low Lead Compliant
No
Manufacturer Warranty
Limited Lifetime, 1 Year Finish, 5 Year Cartridge

Warranty and Product Information

ADA
Yes
Application
Laundry, Shop
Approved for Commercial Use
Yes
Country Of Origin
USA
Eco Friendly
No
Lead Leaching Certified NSF/ANSI 61
Yes
Low Lead Compliant
No
Manufacturer Warranty
Limited Lifetime, 1 Year Finish, 5 Year Cartridge
