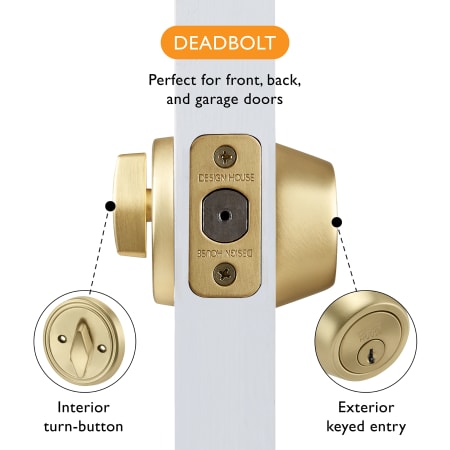

Design House Single Cylinder Keyed Entry Deadbolt

Model: 728923
|
Item: bci4647983

$22.01
Finish: Satin Gold -
327 In Stock
placeholder
Free Shipping on orders over $49.00!
Leaves the Warehouse in 2 to 4 business days
-
Return & Shipping Details

Details

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

The Design House Single Cylinder 2-Way Latch Deadbolt with Adjustable Backset provides homeowners with a superior door deadbolt with its elegant and classic style. The lockset adds a touch of elegance to any home decor. This product is available for both left and right handed doors and has an intuitive, ergonomic design. This item is fitted for doors of 1-3/8-inches to 1-3/4-inches thick and has an adjustable 2-3/8-inch to 2-3/4-inch backset. By installing the Design House Deadbolt Lockset in your home, you gain a sense of security and comfort. The 1/2-inch, nickel plated latch bolt is nearly impenetrable and hard to break! The finish gives your home a refined sense of elegance and class.

single-cylinder-functionSingle Cylinder: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

Features:

  • Tested to exceed ANSI/BHMA Grade 3 security requirements
  • Constructed of high quality brass and steel for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Anti-bump pins provide extra security
  • Covered by Design House's 5 year limited manufacturer warranty

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Interior Height: 2-1/2"
  • Interior Width: 2-1/2"
  • Interior Projection: 15/16"
  • Exterior Height: 2-1/2"
  • Exterior Width: 2-1/2"
  • Exterior Projection: 15/16"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin KW1
Additional Design House Links

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Exterior Height
2.5 in.
Exterior Projection
0.9375 in.
Exterior Width
2.5 in.
Interior Height
2.5 in.
Interior Projection
0.9375 in.
Interior Width
2.5 in.
Product Weight
1.08 lbs.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Exterior Height
2.5 in.
Exterior Projection
0.9375 in.
Exterior Width
2.5 in.
Interior Height
2.5 in.
Interior Projection
0.9375 in.
Interior Width
2.5 in.
Product Weight
1.08 lbs.

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin KW1
Cylinder Type
Single Cylinder
Function
Deadbolt, Keyed Entry, Single Cylinder
Handing
Left, Reversible, Right
Keyway
KW1
Latch Faceplate
Round Corner
Material
Brass, Steel
Number of Keys
2
Rosette Shape
Round
Theme
Traditional

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin KW1
Cylinder Type
Single Cylinder
Function
Deadbolt, Keyed Entry, Single Cylinder
Handing
Left, Reversible, Right
Keyway
KW1
Latch Faceplate
Round Corner
Material
Brass, Steel
Number of Keys
2
Rosette Shape
Round
Theme
Traditional

Manufacturer Technology

SmartKey
No

Manufacturer Technology

SmartKey
No

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 3
Certifications
BHMA
Fire Rated
No
Manufacturer Warranty
5 Year Limited

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 3
Certifications
BHMA
Fire Rated
No
Manufacturer Warranty
5 Year Limited
