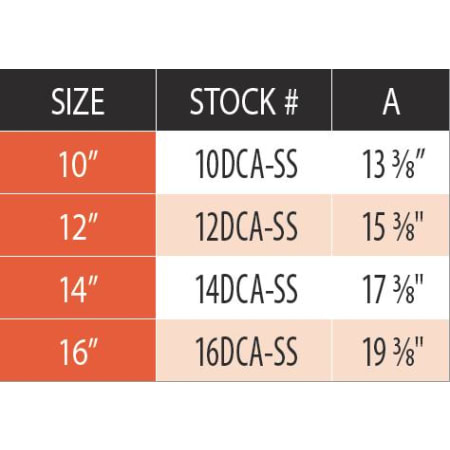

Measurement Chart

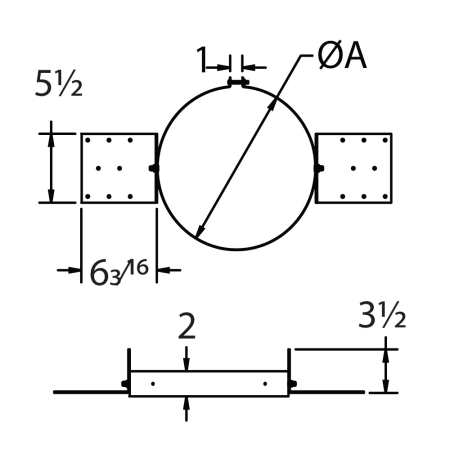

Line Image
Finish: Galvanized Steel
Measurement Chart
Line Image
Item # bci1761204

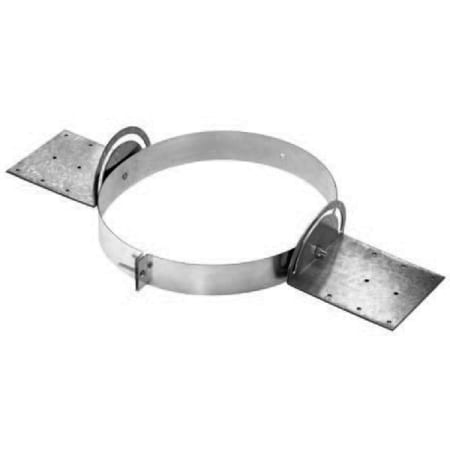

DuraVent 10" Inner Diameter - DuraChimney II Class A Chimney Pipe - Double Wall - Strap/Bracket

Model:10DCA-SS

$235.99
Finish: Galvanized Steel -
1 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

DuraChimney II Collection Stainless Steel Supplementary Support with 10 Inch Inner Diameter

The DuraChimney II Stainless Steel Supplementary Support with 10 Inch Inner Diameter is a component that is used in a typical venting installation. This supplementary support is used to help support weight of DuraChimney II. Supports a maximum of 25’ of chimney. Use additional Supplementary Supports as needed.

Features:

  • Inner Diameter: Sta
  • Use to Help Support Weight of DuraChimney II
  • Supports 25' of Chimney
  • Height: 3-1/2"
  • UL Listed

DuraChimney II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design which eliminatesthe need for field assembly of pipe sections, allowing for faster installation. DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside and to provide a fire-safe design that protects both the chimney and the building. The double-wall, air-cooled design allows the chimney to expand both radially and lengthwise under high temperatures.

Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company's research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.

Additional DuraVent Links

Dimensions and Measurements

Depth
13.375 in.
Height
3.5 in.
Inner Pipe Gauge
27
Outer Pipe Gauge
26
Pipe Inside Diameter
10 in.
Product Weight
3 lbs.
Width
25.5625 in.

Dimensions and Measurements

Depth
13.375 in.
Height
3.5 in.
Inner Pipe Gauge
27
Outer Pipe Gauge
26
Pipe Inside Diameter
10 in.
Product Weight
3 lbs.
Width
25.5625 in.

Characteristics and Features

Configuration
Bracket
Inner Pipe Material
Stainless Steel
Insulation Type
Air
Outer Pipe Material
Galvanized Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Characteristics and Features

Configuration
Bracket
Inner Pipe Material
Stainless Steel
Insulation Type
Air
Outer Pipe Material
Galvanized Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Electrical and Operational Information

Fuel Type
All Fuel, Coal, Gas, Oil, Wood

Electrical and Operational Information

Fuel Type
All Fuel, Coal, Gas, Oil, Wood

Warranty and Product Information

Application
Masonry Fireplace
Approved for Commercial Use
No
Certifications
UL
Collection
DuraChimney II
Manufacturer Warranty
Limited Lifetime
UL Listing Number
UL 103, ULC S604

Warranty and Product Information

Application
Masonry Fireplace
Approved for Commercial Use
No
Certifications
UL
Collection
DuraChimney II
Manufacturer Warranty
Limited Lifetime
UL Listing Number
UL 103, ULC S604
