Hafele Woodflex 80 Sliding Door Hardware Set for One Door
Model: 403.50.941|Item: bci3106647
from theWoodflex Collection
$122.35
1 In Stock
Details
Features:
- Suitable for one door up to 176 lbs per kit
- Can be used for doors between 7/8" and 1-7/16" thick
- Works with doors between 19-11/16" and 23-5/8" wide
- Allows for +3/16"/-1/4" height adjustment
Specifications:
- Length: 3-5/16" (84.5 mm)
- Number of Doors: 1
- Door Thickness: 7/8" to 1-7/16"
- Door Width: 19-11/16" to 23-5/8"
- Height Adjustment: +3/16" and -1/4"

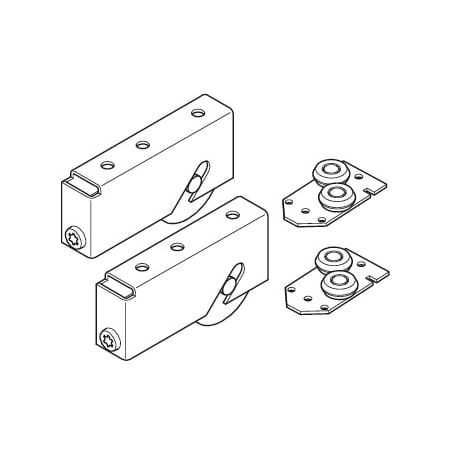

Set Includes:

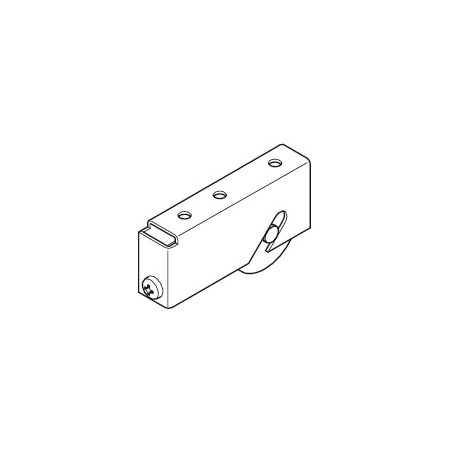

- 2 Running Gears

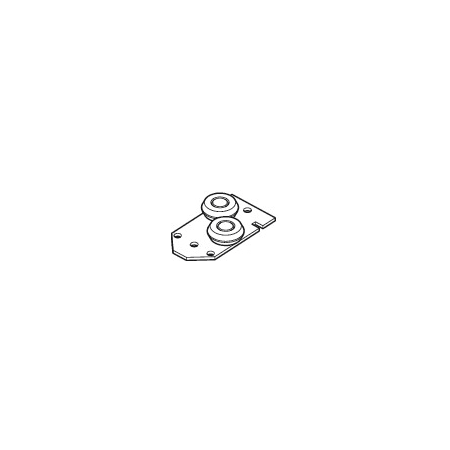

- 2 Guides
Dimensions and Measurements
Door Thickness | 7/16", 1/2", 5/8", 3/4", 7/8", 1" |
Length | 3.32 in. |
Length mm | 84.5 mm |
Max Door Weight | 176 lbs. |
Max Door Width | 23.62 in. |
Dimensions and Measurements
Door Thickness | 7/16", 1/2", 5/8", 3/4", 7/8", 1" |
Length | 3.32 in. |
Length mm | 84.5 mm |
Max Door Weight | 176 lbs. |
Max Door Width | 23.62 in. |
Characteristics and Features
Adjustable Height | Yes |
Number Of Doors | 1 |
Characteristics and Features
Adjustable Height | Yes |
Number Of Doors | 1 |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Woodflex |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Woodflex |
Manufacturer Warranty | 1 Year Limited |
