Hafele HAWA Pivot Door Set for Single 176 Lb. Pivot Door without Guide Channel
Model: 943.29.015|Item: bci1785574
Details
HAWA Collection Pivot Door Set for Single 176 Lb. Pivot Door without Guide Channel

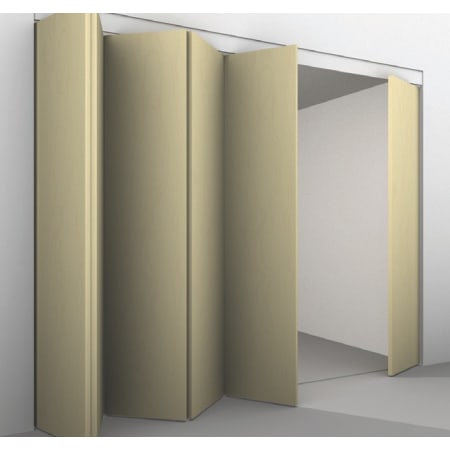

Create a functional sliding door system with this fitting set for sliding/folding door panels. The lower guide serves to secure the door, while the upper track (not included) provides the support for the door. The running gears, door stoppers and support pieces complete the system.
The HAWA 80/H series provides folding/sliding hardware for wall partitions with 2 to 7 panels. The upper track and lower guide channel are made of anodized aluminum, and it features dual running gear with ball bearings for quiet, smooth operations. Minimal space is required in the stacking area for a greater opening.
Features:
- For wall mounted pivot door
- Guide channel not included
- Minimal space required in stacking area
- Extremely quiet and smooth
- Upper track and lower guide channel not included
- Includes:
- Upper pivot
- Door stopper
- 3 carrier profiles
- Thrust bearing
- 3 cover caps
Specifications:
- Maximum door weight 176 lbs. (80 kg)
- For door thickness 1-3/8" to 1-3/4" (35 - 45 mm)
- Door width: 19.75" - 35.5" (500 - 900 mm)
- Height adjustable +/- 1/8" (3 mm)
Hafele is committed to finding better ways and it shows in their innovative and beautiful line of door hardware products. These products will lead to better organization and the peace of mind that comes with Hafele brand products. In addition to quality and beauty, Hafele is committed to reducing their environmental impact, so you can buy these products with confidence in every aspect.
Dimensions and Measurements
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Max Door Weight | 176 lbs. |
Max Door Width | 35.5 in. |
Dimensions and Measurements
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Max Door Weight | 176 lbs. |
Max Door Width | 35.5 in. |
Characteristics and Features
Number Of Doors | 1 |
Characteristics and Features
Number Of Doors | 1 |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | HAWA |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | HAWA |
