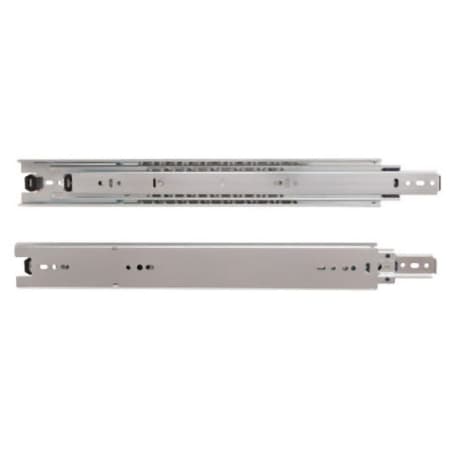

Knape and Vogt 8810 Series 20 Inch Full Extension Side Mount Ball Bearing Drawer Slide with 200 lbs. Weight Capacity - Set of 2
Model: 8810B 20|Item: bci4273477
from the8810 Collection
$42.96
Finish: Zinc -
Special Order
Details
Features:
- Designed to support up to 200 lbs of weight
- Mounts to the side of the drawer for easy installation
- Provides easy access to the drawer with full extension slides
- Butterfly lever disconnect allows for easy removal of entire drawer system
- Slides can be installed in either panel (frameless) or face frame cabinets
- Meets the minimum requirements for BHMA Grade 1 Certification
- Includes a limited lifetime manufacturer warranty
- Mounting hardware is not included
- Requires #8 or #10 x 5/8" Phillips flathead screws for installation
Product Technologies:
- Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
- Side Length: 19-11/16"
- Nominal Length: 20"
- Weight Capacity: 200 lbs.
- Recommended Drawer Length: 20-1/2"
- Maximum Drawer Width: 42"
- Minimum Clearance: 3/4"
- Quantity: 2
Dimensions and Measurements
Drawer Length | 20.5 in. |
Extension | 20 in. |
Height | 2.09 in. |
Length | 19.69 in. |
Max Capacity (Pounds) | 200 lbs. |
Maximum Drawer Width | 42 in. |
Minimum Clearance | 0.78 in. |
Nominal Length | 20 in. |
Product Weight | 7.25 lbs. |
Quantity | 2 |
Width | 0.75 in. |
Dimensions and Measurements
Drawer Length | 20.5 in. |
Extension | 20 in. |
Height | 2.09 in. |
Length | 19.69 in. |
Max Capacity (Pounds) | 200 lbs. |
Maximum Drawer Width | 42 in. |
Minimum Clearance | 0.78 in. |
Nominal Length | 20 in. |
Product Weight | 7.25 lbs. |
Quantity | 2 |
Width | 0.75 in. |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | Yes |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Side Mount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | No |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | Yes |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Side Mount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | No |
Warranty and Product Information
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Manufacturer Warranty | Limited Lifetime |
Series | 8810 |
Warranty and Product Information
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Manufacturer Warranty | Limited Lifetime |
Series | 8810 |
