Item # bci4161373

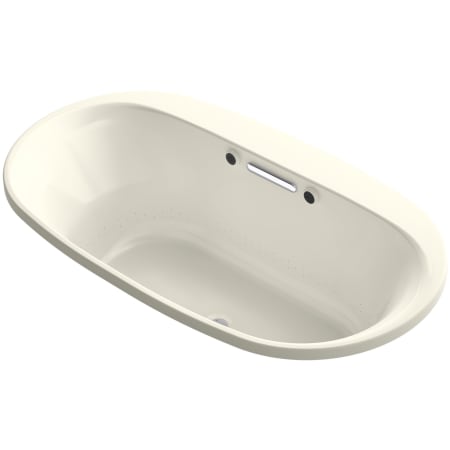

Kohler Underscore Oval 66" Drop In Acrylic Air Tub with Center Drain and Overflow

Model:K-5716-GHW-96

$4,257.60
Finish: Biscuit -
Special Order
Finish: Biscuit -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

With clean, smooth lines, the Underscore heated Bubblemassage air bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger.

Kohler K-5716-GHW Features:

  • Covered under Kohler's hydrotherapy component 5 year limited warranty, and tub limited lifetime warranty
  • Acrylic construction maintains heat longer and is easy to clean
  • Air bath – air injection system gives the user a unique, relaxing bathing experience

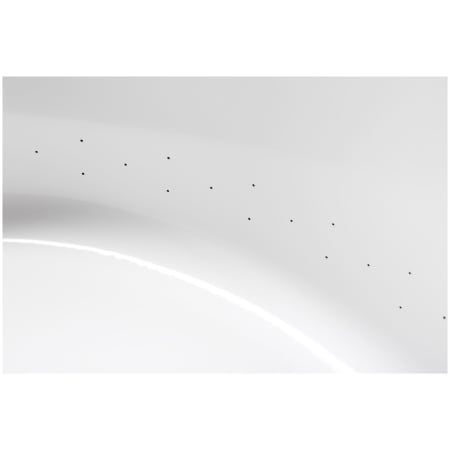

  • 122 Airjets release thousands of heated bubbles that surround, support, and massage the body
  • Variable-speed blower lets you adjust massage intensity to 18 levels
  • Automatic and manual purge cycles remove residual water from air channels after use

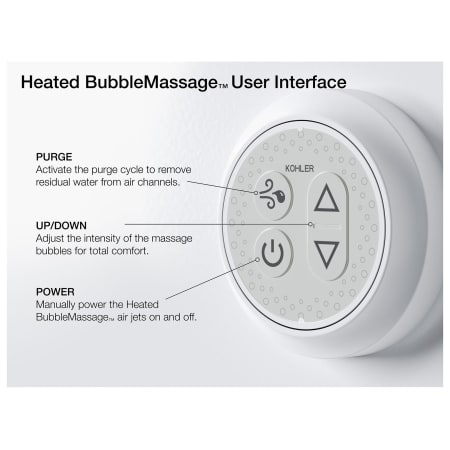

  • Control all features of your experience tub with a gentle touch of the keypad
  • 60-minute automatic shutoff timer
  • Installs in a drop in or undermount configuration
  • An ultra-quiet variable-speed left-side blower allows you to adjust the air injection intensity
  • Tub features a heater that maintains water temperature for constant bathing comfort
  • Drain assembly sold separately
  • Pump is located on the left side
  • Slotted overflow allows for deep soaking
  • Integral lumbar support for added bathing comfort
  • Wide ledge on one side is ideal for deck-mount faucet and/or handshower
  • Oval-shaped basin offers a graceful and spacious bathing experience
  • Generous 66-in length provides spacious bathing for up to two people
  • Made in America

Kohler K-5716-GHW Technologies and Benefits:

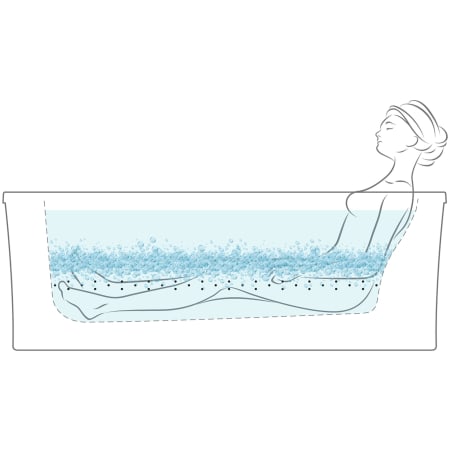

  • BubbleMassage™: BubbleMassage hydrotherapy delivers thousands of bubbles that thoroughly support and massage your body for an invigorating, blissful experience. The strategic placement of the BubbleMassage air jets on the lower perimeter of the bath create a luxurious bathing experience that stimulates the release of muscle tension and helps center the mind.
  • Bask®: Kohler tubs with the Bask heated surface warm your shoulders, back and neck as you bathe, creating a soothing, spa-like environment.

Kohler K-5716-GHW Specifications:

  • Overall Height: 22" (bottom to top of tub)
  • Overall Length: 66" (left to right of tub)
  • Overall Width: 36" (front to back of tub)
  • Basin Length: 47" (left to right of bottom basin)
  • Basin Width: 26-1/4" (front to back of bottom basin)
  • Basin Depth: 21-3/16" (top to bottom of basin)
  • Maximum Water Capacity: 85-1/2 gallons
  • Water Depth: 17-9/16"
  • Amperage: 15 A
  • Number of Jets: 122
Additional Kohler Links

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Capacity (Gallons)
85.5
Depth
21.1875 in.
Height
22 in.
Length
66 in.
Nominal Length
66 in.
Nominal Width
36 in.
Product Weight
90 lbs.
Water Depth
17.5625 in.
Width
36 in.

Dimensions and Measurements

Capacity (Gallons)
85.5
Depth
21.1875 in.
Height
22 in.
Length
66 in.
Nominal Length
66 in.
Nominal Width
36 in.
Product Weight
90 lbs.
Water Depth
17.5625 in.
Width
36 in.

Included Components

Drain Assembly Included
No
Faucet Included
No
Handshower Included
No
Light Included
No

Included Components

Drain Assembly Included
No
Faucet Included
No
Handshower Included
No
Light Included
No

Characteristics and Features

Accepts Deck Mount Faucet
Yes
Control Type
Electronic
Drain Placement
Center
Installation Type
Undermount, Drop In
Material
Acrylic
Number Of Bathers
1
Number of Jets
122
Overflow
Yes
Pump Placement
Left
Slip Resistant
Yes
Theme
Transitional
Tub Shape
Oval

Characteristics and Features

Accepts Deck Mount Faucet
Yes
Control Type
Electronic
Drain Placement
Center
Installation Type
Undermount, Drop In
Material
Acrylic
Number Of Bathers
1
Number of Jets
122
Overflow
Yes
Pump Placement
Left
Slip Resistant
Yes
Theme
Transitional
Tub Shape
Oval

Manufacturer Technology

Chromatherapy
No

Manufacturer Technology

Chromatherapy
No

Electrical and Operational Information

Amperage
15
Voltage
120

Electrical and Operational Information

Amperage
15
Voltage
120

Warranty and Product Information

ASME Code
A112.19.7
Certifications
ASME
Collection
Underscore Oval
CSA Code
B45.10, B45.5, C22.2
Made in America
Yes
Manufacturer Warranty
5 Year Limited, Limited Lifetime

Warranty and Product Information

ASME Code
A112.19.7
Certifications
ASME
Collection
Underscore Oval
CSA Code
B45.10, B45.5, C22.2
Made in America
Yes
Manufacturer Warranty
5 Year Limited, Limited Lifetime
