Item # bci4153047
LG
Finish: N/A
Item # bci4153047

LG 24000 BTU Cooling / 26000 BTU Heating 21 SEER 208/230 Volt Single Zone Mini Split Package with Wall Mount Evaporator

Model:L2L24W09120000

$3,988.00
14 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, December 12th
-
Return & Shipping Details

Details

Please Note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

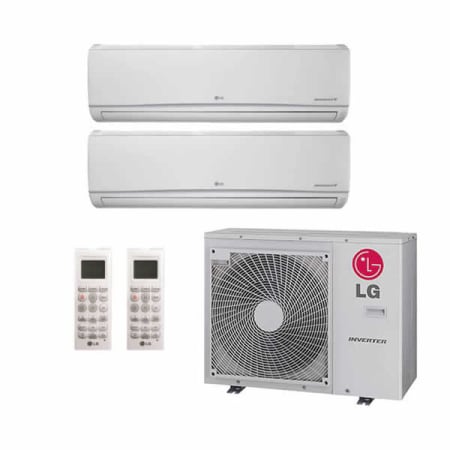

Package Includes:

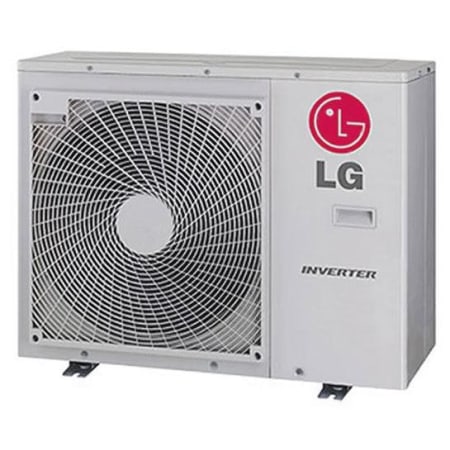

  • One (1) LMU240HHV Outdoor Condenser
  • One (1) LSN090HSV5 Wall Evaporator Unit
  • One (1) LSN120HSV5 Wall Evaporator Unit

LMU240HHV Specifications:

  • Cooling BTU Capacity: 24000
  • Heating BTU Capacity: 26000
  • Cooling Area: 1500 Sq. Ft.
  • SEER: 21
  • Depth: 13"
  • Height: 32-13/16"
  • Width: 37-7/16"
  • Amperage: 25A
  • Voltage: 208/230V
  • Manufacturer Warranty: 5 Year Parts, 7 Year Condenser

LSN090HSV5 Specifications:

  • Zone Cooling BTUs: 9000
  • Zone Heating BTUs: 10900
  • Cooling Area: 400 Sq. Ft.
  • Remote Included: Yes
  • Depth: 8-1/4"
  • Height: 12-1/8"
  • Width: 32-15/16"
  • Amperage: 15
  • Voltage: 208/230V
  • Manufacturer Warranty: 5 Year Parts

LSN120HSV5 Specifications:

  • Zone Cooling BTUs: 12000
  • Zone Heating BTUs: 13600
  • Cooling Area: 550 Sq. Ft.
  • Remote Included: Yes
  • Depth: 8-1/4"
  • Height: 12-1/8"
  • Width: 32-15/16"
  • Amperage: 15
  • Voltage: 208/230V
  • Manufacturer Warranty: 5 Year Parts

Required Components:

  • Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
  • Drain Line: The drain line removes the condensate from your system and connects it to the drain location of your choosing
  • Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
  • Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit provides an easy way to connect your outdoor condenser to your fuse box
  • Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
  • Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
  • Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Dimensions and Measurements

CFM (High)
268, 282
CFM (Low)
177, 169
Cooling Area
400, 550, 1500 sq. ft.
Depth (Condenser)
13 in.
Depth (Evaporator)
8.25 in.
Height (Condenser)
32.84 in.
Height (Evaporator)
12.13 in.
Maximum Line Set Length
246.1 ft.
Product Weight
20, 152.1 lbs.
Width (Condenser)
37.41 in.
Width (Evaporator)
32.94 in.

Dimensions and Measurements

CFM (High)
268, 282
CFM (Low)
177, 169
Cooling Area
400, 550, 1500 sq. ft.
Depth (Condenser)
13 in.
Depth (Evaporator)
8.25 in.
Height (Condenser)
32.84 in.
Height (Evaporator)
12.13 in.
Maximum Line Set Length
246.1 ft.
Product Weight
20, 152.1 lbs.
Width (Condenser)
37.41 in.
Width (Evaporator)
32.94 in.

Included Components

Branch Box Required
No
Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Includes Timer
Yes
Line Set Included
No
Mini Split Configuration
Package

Included Components

Branch Box Required
No
Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Includes Timer
Yes
Line Set Included
No
Mini Split Configuration
Package

Characteristics and Features

Auto Restart
Yes
Control Type
Remote
Evaporator Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A
Wireless Communication
WiFi

Characteristics and Features

Auto Restart
Yes
Control Type
Remote
Evaporator Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A
Wireless Communication
WiFi

Electrical and Operational Information

Amperage
25, 15
Auto Shut Off
Yes
Cooling BTU Capacity
24000
EER
13.5
Fan Speeds
3
Frequency
60 Hertz
Heating BTU Capacity
26000
Number of Zones
2
Power Source
Hardwired
Voltage
208, 230
Zone Capacity
3
Zone Cooling BTU
12000, 9000
Zone Heating BTU
13600, 10900

Electrical and Operational Information

Amperage
25, 15
Auto Shut Off
Yes
Cooling BTU Capacity
24000
EER
13.5
Fan Speeds
3
Frequency
60 Hertz
Heating BTU Capacity
26000
Number of Zones
2
Power Source
Hardwired
Voltage
208, 230
Zone Capacity
3
Zone Cooling BTU
12000, 9000
Zone Heating BTU
13600, 10900

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
ETL, UL
Collection
Multi F
Energy Star
Yes
Manufacturer Warranty
5 Year Parts, 7 Year Condenser
SEER Cooling
21

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
ETL, UL
Collection
Multi F
Energy Star
Yes
Manufacturer Warranty
5 Year Parts, 7 Year Condenser
SEER Cooling
21
