LG 28400 BTU Cooling / 28600 BTU Heating 20 SEER 208/230 Volt Two Zone Mini Split Package with Wall Mount Evaporators

Please Note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

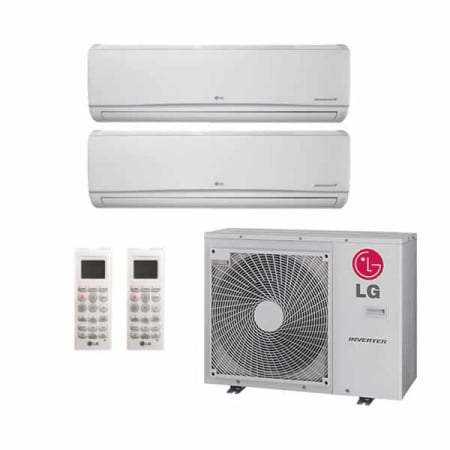

Package Includes:

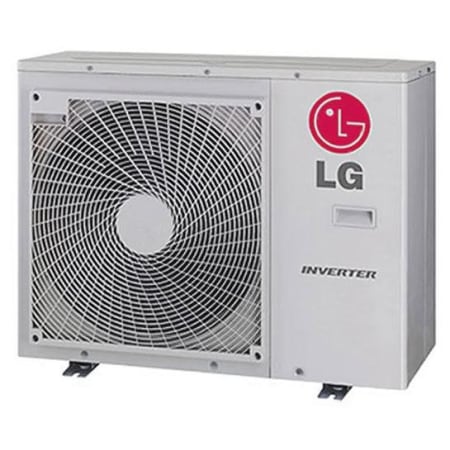

• One (1) LMU300HHV Outdoor Condenser

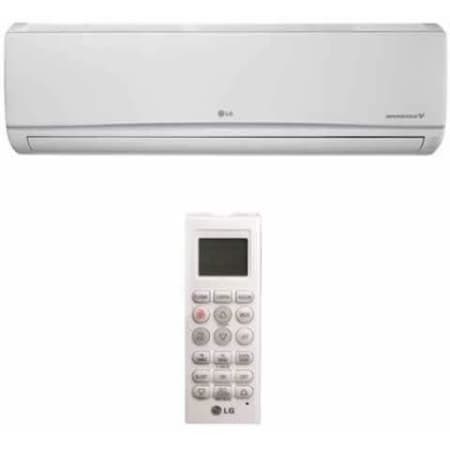

• Two (2) LMN159HVT Wall Evaporator Units

LMU300HHV Specifications:

• Cooling BTU Capacity: 28400
• Heating BTU Capacity: 28600
• Cooling Area: 1750 Sq. Ft.
• SEER: 20
• Depth: 13"
• Height: 32-13/16"
• Width: 37-7/16"
• Amperage: 25A
• Voltage: 208/230V
• Manufacturer Warranty: 5 Year Parts, 7 Year Condenser

LMN159HVT Specifications:

• Zone Cooling BTUs: 15000
• Zone Heating BTUs: 15600
• Cooling Area: 800 Sq. Ft.

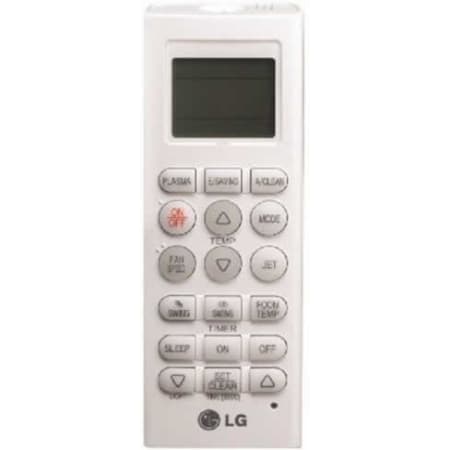

• Remote Included: Yes
• Depth: 8-1/4"
• Height: 11-1/4"
• Width: 34-7/8"
• Voltage: 208/230V
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system and connects it to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit provides an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
