LG 28400 BTU Cooling / 28600 BTU Heating 20 SEER 208/230 Volt Four Zone Mini Split Package with Wall Mount Evaporators
Model:L4L30W07070718
$5,558.00
2 In Stock
This package includes the following items
Details
Please Note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty
For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

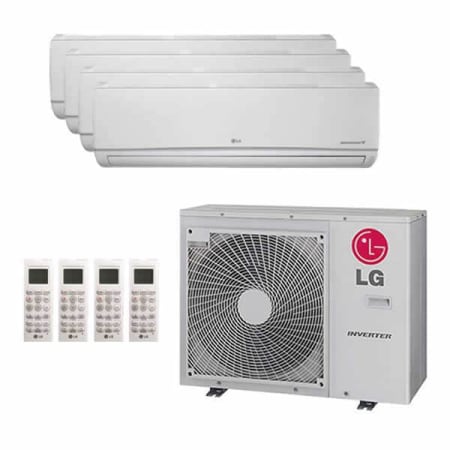

Package Includes:

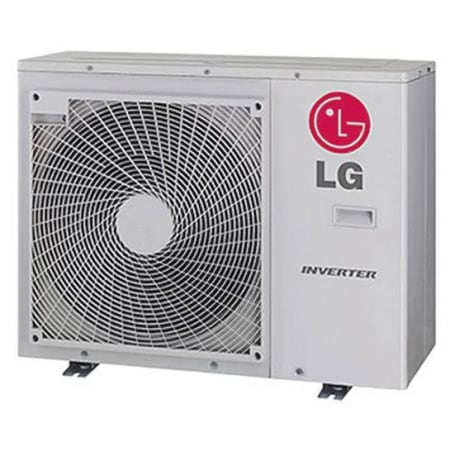

- One (1) LMU300HHV Outdoor Condenser

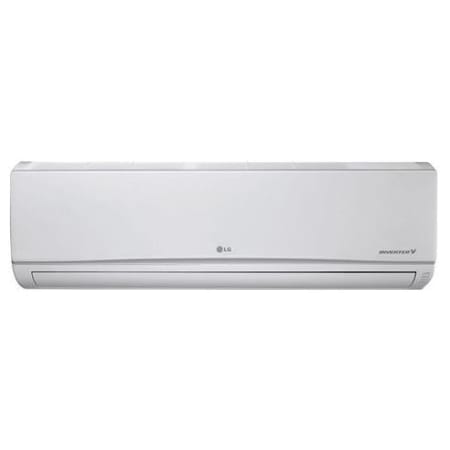

- Three (3) LMN079HVT Wall Evaporator Units

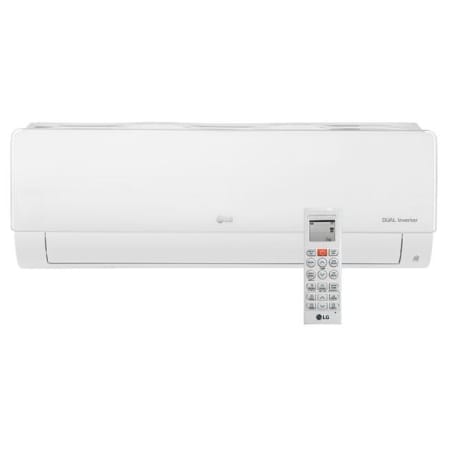

- One (1) LSN180HSV5 Wall Evaporator Unit
LMU300HHV Specifications:
- Cooling BTU Capacity: 28400
- Heating BTU Capacity: 28600
- Cooling Area: 1750 Sq. Ft.
- SEER: 20
- Depth: 13"
- Height: 32-13/16"
- Width: 37-7/16"
- Amperage: 25A
- Voltage: 208/230V
- Manufacturer Warranty: 5 Year Parts, 7 Year Condenser
LMN079HVT Specifications:
- Zone Cooling BTUs: 7000
- Zone Heating BTUs: 8100
- Cooling Area: 300 Sq. Ft.

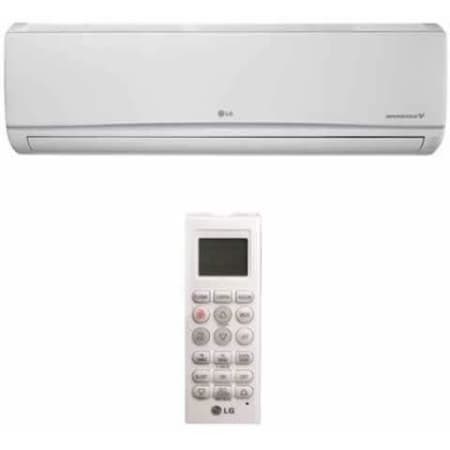

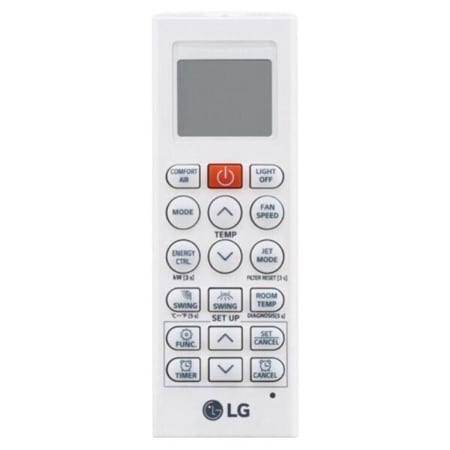

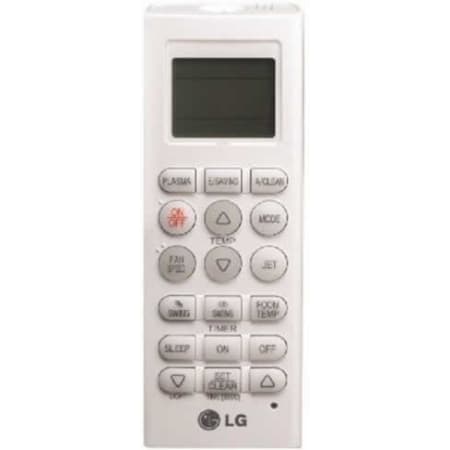

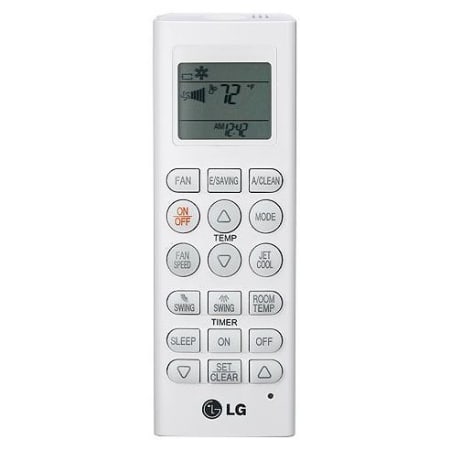

- Remote Included: Yes
- Depth: 7-7/16"
- Height: 12-1/8"
- Width: 32-15/16"
- Voltage: 208/230V
- Manufacturer Warranty: 5 Year Parts
LSN180HSV5 Specifications:
- Zone Cooling BTUs: 18000
- Zone Heating BTUs: 21600
- Cooling Area: 1000 Sq. Ft.
- Remote Included: Yes
- Depth: 9-13/16"
- Height: 13-9/16"
- Width: 40-9/16"
- Amperage: 20
- Voltage: 208/230V
- Manufacturer Warranty: 5 Year Parts
Required Components:
- Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
- Drain Line: The drain line removes the condensate from your system and connects it to the drain location of your choosing
- Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
- Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit provides an easy way to connect your outdoor condenser to your fuse box
- Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
- Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
- Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
Manufacturer Resources
Specification Sheet - LMN079HVTSpecification Sheet - LMU300HHVSpecification Sheet - LSN180HSV5Dimensions and Measurements
CFM (High) | 558, 254 |
CFM (Low) | 148, 353 |
Cooling Area | 1750, 1000, 300 sq. ft. |
Depth (Condenser) | 13 in. |
Depth (Evaporator) | 9.81, 7.44 in. |
Height (Condenser) | 32.84 in. |
Height (Evaporator) | 12.13, 13.59 in. |
Maximum Line Set Length | 246.1 ft. |
Product Weight | 152.1, 23, 31 lbs. |
Width (Condenser) | 37.41 in. |
Width (Evaporator) | 32.94, 40.56 in. |
Dimensions and Measurements
CFM (High) | 558, 254 |
CFM (Low) | 148, 353 |
Cooling Area | 1750, 1000, 300 sq. ft. |
Depth (Condenser) | 13 in. |
Depth (Evaporator) | 9.81, 7.44 in. |
Height (Condenser) | 32.84 in. |
Height (Evaporator) | 12.13, 13.59 in. |
Maximum Line Set Length | 246.1 ft. |
Product Weight | 152.1, 23, 31 lbs. |
Width (Condenser) | 37.41 in. |
Width (Evaporator) | 32.94, 40.56 in. |
Included Components
Branch Box Required | No |
Heater Included | Yes |
Includes Remote | Yes |
Includes Thermostat | Yes |
Includes Timer | Yes |
Line Set Included | No |
Mini Split Configuration | Package |
Included Components
Branch Box Required | No |
Heater Included | Yes |
Includes Remote | Yes |
Includes Thermostat | Yes |
Includes Timer | Yes |
Line Set Included | No |
Mini Split Configuration | Package |
Characteristics and Features
Auto Restart | Yes |
Control Type | Remote |
Evaporator Type | Wall Mount |
Installation Type | Mini Split |
Refrigerant | R-410A |
Wireless Communication | WiFi |
Characteristics and Features
Auto Restart | Yes |
Control Type | Remote |
Evaporator Type | Wall Mount |
Installation Type | Mini Split |
Refrigerant | R-410A |
Wireless Communication | WiFi |
Electrical and Operational Information
Amperage | 25, 20 |
Auto Shut Off | Yes |
Cooling BTU Capacity | 28400 |
EER | 12.5 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Heating BTU Capacity | 28600 |
Number of Zones | 4 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Capacity | 4 |
Zone Cooling BTU | 7000, 18000 |
Zone Heating BTU | 8100, 21600 |
Electrical and Operational Information
Amperage | 25, 20 |
Auto Shut Off | Yes |
Cooling BTU Capacity | 28400 |
EER | 12.5 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Heating BTU Capacity | 28600 |
Number of Zones | 4 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Capacity | 4 |
Zone Cooling BTU | 7000, 18000 |
Zone Heating BTU | 8100, 21600 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ETL, UL |
Collection | Multi F |
Energy Star | Yes |
Manufacturer Warranty | 7 Year Condenser, 5 Year Parts |
SEER Cooling | 20 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ETL, UL |
Collection | Multi F |
Energy Star | Yes |
Manufacturer Warranty | 7 Year Condenser, 5 Year Parts |
SEER Cooling | 20 |
