Item # bci4430574

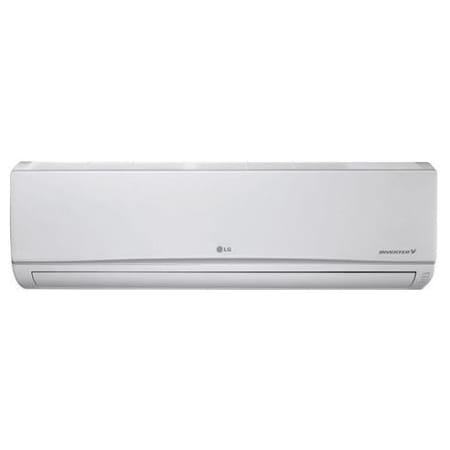

LG Multi F Series 18,000 BTU Cooling Mini Split Wall Mount Indoor Unit

Model:LSN181HSV5

$809.00
Finish: White -
60 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Their Standard line of wall mounted mini split units are the perfect blend of versatility and capability for nearly any application. Quiet operations and a clean design make the LSN181HSV5 a smart addition for all types of spaces from bedrooms to living rooms to garages. With a variety of operating modes and helpful functions, this well-rounded mini split indoor unit is an easy choice for any system. This product requires a compatible outdoor condenser for functionality.

Features:

  • The LSN181HSV5 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
  • Quiet Design
  • Self-Cleaning Coil
  • This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.

Product Technologies:

  • Sleep Mode: With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify: LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality: The LSN181HSV5 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
  • Hot Start: When the hot start function is enabled, the LSN181HSV5's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.

Specifications:

  • Zone Cooling BTU: 18000
  • Sound Level: 31 to 47 dB
  • Liquid Line Connection Size: 3/8" Inch
  • Gas Line Connection Size: 5/8" Inch
  • Depth: 9-13/16"
  • Height: 13-9/16"
  • Width: 40-9/16"
  • Voltage: 208, 230V

Product Assurance:

  • Certifications:
    • ETL
    • ISO
    • UL
  • Manufacturer Warranty: 5 Year

Required Components:

  • Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
  • Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
  • Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

Manufacturer Resources

Specification SheetOwner's Manual

Dimensions and Measurements

CFM
706, 371
Depth (Indoor Unit)
9.8125 in.
Gas Connection
5/8"
Height (Indoor Unit)
13.59 in.
Liquid Line Connection Size
3/8"
Maximum Line Set Length
114.8 ft.
Product Weight
31 lbs.
Width (Indoor Unit)
40.5625 in.

Dimensions and Measurements

CFM
706, 371
Depth (Indoor Unit)
9.8125 in.
Gas Connection
5/8"
Height (Indoor Unit)
13.59 in.
Liquid Line Connection Size
3/8"
Maximum Line Set Length
114.8 ft.
Product Weight
31 lbs.
Width (Indoor Unit)
40.5625 in.

Included Components

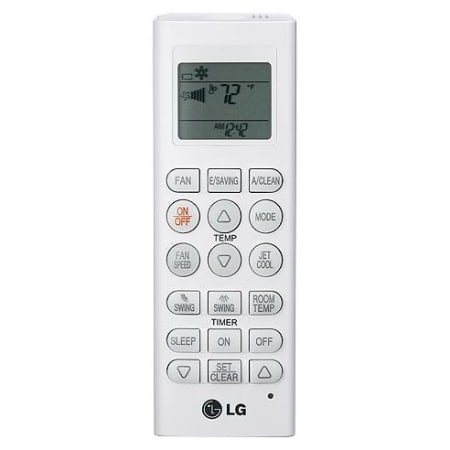

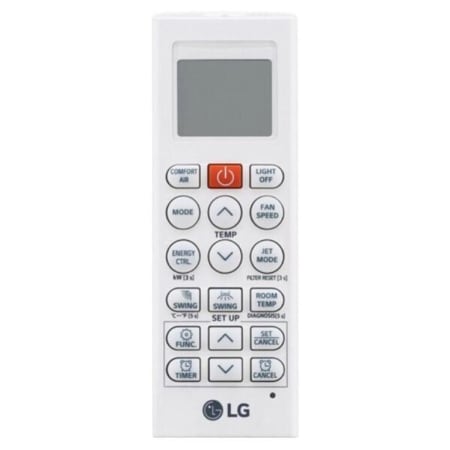

Includes Remote
Yes

Included Components

Includes Remote
Yes

Characteristics and Features

Control Type
Remote
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A

Characteristics and Features

Control Type
Remote
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A

Electrical and Operational Information

dBA (High)
47
dBA (Low)
31
Electrical Phases
1
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
18000

Electrical and Operational Information

dBA (High)
47
dBA (Low)
31
Electrical Phases
1
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
18000

Warranty and Product Information

Certifications
ETL, ISO, UL
Manufacturer Warranty
5 Year

Warranty and Product Information

Certifications
ETL, ISO, UL
Manufacturer Warranty
5 Year
