Item # bci3219746
Linnea
Finish: Polished Stainless Steel
Item # bci3219746

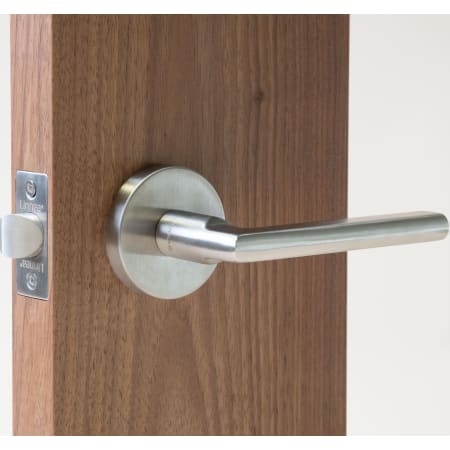

Linnea Marine Grade 316 Stainless Steel LL148 Privacy Door Lever Set with Round Rose

Model:LL148R68-PR-PSS

$381.00
Finish: Polished Stainless Steel -
25 In Stock
Finish: Polished Stainless Steel -
25 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details



privacy-functionPrivacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.



Features:

  • Exceeds criteria for BHMA Grade 1 certification
  • Constructed of marine grade 316 stainless steel
  • Corrosion-resistant material suitable for industrial and marine settings
  • This lever is reversible for right or left handed applications
  • Premium quality 28 degree latch requires less rotation than standard latches
  • Covered under a limited lifetime mechanical warranty

Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 2-1/4"
  • Handing: Left, Reversible, Right
  • Lever Length: 4-15/16"
  • Rose Diameter: 2-11/16"
  • Projection: 2-3/16"
  • Latch Faceplate: Square Corner

Product Variations:

  • LL148R68-PA: Passage Door Lever Set
  • LL148R68-PR (This Model): Privacy Door Lever Set
  • LL148R68-SD: Single Dummy Door Lever
  • LL148R68-FD00: Dummy Door Lever Set

Manufacturer Resources

InstallationDimensions

Dimensions and Measurements

Backset
2-3/8", 2-3/4"
Cross Bore
2-1/8"
Door Thickness
2-1/8", 2", 2-5/8", 1-5/8", 1-7/8", 2-1/4", 1-1/2", 1-3/8", 2-3/8", 1-3/4", 2-3/4", 2-7/8", 2-1/2"
Edge Bore
1"
Handle Length
4.92 in.
Handle Projection
2.17 in.
Trim Height
2.6772 in.
Trim Width
2.6772 in.

Dimensions and Measurements

Backset
2-3/8", 2-3/4"
Cross Bore
2-1/8"
Door Thickness
2-1/8", 2", 2-5/8", 1-5/8", 1-7/8", 2-1/4", 1-1/2", 1-3/8", 2-3/8", 1-3/4", 2-3/4", 2-7/8", 2-1/2"
Edge Bore
1"
Handle Length
4.92 in.
Handle Projection
2.17 in.
Trim Height
2.6772 in.
Trim Width
2.6772 in.

Included Components

28 Degree Latch
Yes

Included Components

28 Degree Latch
Yes

Characteristics and Features

Concealed Screws
Yes
Function
Privacy
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Square, Straight
Locking Mechanism
Thumbturn
Material
Stainless Steel
Rosette Shape
Round
Solid Construction
Solid Stainless Steel
Theme
Modern

Characteristics and Features

Concealed Screws
Yes
Function
Privacy
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Square, Straight
Locking Mechanism
Thumbturn
Material
Stainless Steel
Rosette Shape
Round
Solid Construction
Solid Stainless Steel
Theme
Modern

Warranty and Product Information

ADA
No
ANSI Certification
A156.2
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Certifications
ANSI
Country Of Origin
USA
Fire Rated
No
Made in America
Yes
Manufacturer Warranty
Limited Lifetime Mechanical
Series
LL148

Warranty and Product Information

ADA
No
ANSI Certification
A156.2
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Certifications
ANSI
Country Of Origin
USA
Fire Rated
No
Made in America
Yes
Manufacturer Warranty
Limited Lifetime Mechanical
Series
LL148
