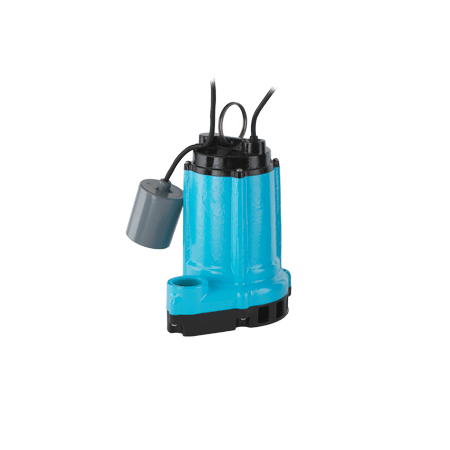

Little Giant 10ENH 60 GPM 115V High Head Fully Submersible Effluent Pump with 20' Cord
Model: 511573|Item: bci2029395
from the10ENH Collection
Details
The Little Giant 10EN Series pumps feature 1/2 HP permanent split capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler running for durability. In addition to a stainless intake plate, the 10EN also features a cast iron cover on the manual and RF (remote float switch) versions.
Product Features:- 1/2 Horse Power with overload protection
- New cooler running motor which extends the life of the pump
- Designed for continuous duty
- Covered by 12 month limited warranty
- Handles 3/4" solids
- Cover made from: Cast iron
- Housing made from: Cast iron
- Impeller Type: Non-clog
- Impeller made from: Thermoplastic
- Switch Type: Mechanical float
- Single phase operation
- 20' Cord included
- 1/2 Horse Power
- Voltage: 115V
- 9.5 Amp maximum operation
- 1-1/2" Discharge diameter
- Length: 9-1/2"
- Width: 6-3/4"
- Height: 11"
- Flow rates (GPH: gallons-per-hour):
- At 5 feet of head: 60
- At 10 feet of head: 50
- At 20 feet of head: 40
- At 30 feet of head: 30
- At 40 feet of head: 15
Dimensions and Measurements
Cord Length | 240 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 60 |
Height | 11.03 in. |
Length | 9.53 in. |
Maximum Diameter Solids | .75, 0.75 in. |
Maximum Head Height | 60 in. |
Minimum Head Height | 5 in. |
Water Connection | 1-1/2" |
Water Pressure (Max) | 26 PSI |
Width | 6.74 in. |
Dimensions and Measurements
Cord Length | 240 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 60 |
Height | 11.03 in. |
Length | 9.53 in. |
Maximum Diameter Solids | .75, 0.75 in. |
Maximum Head Height | 60 in. |
Minimum Head Height | 5 in. |
Water Connection | 1-1/2" |
Water Pressure (Max) | 26 PSI |
Width | 6.74 in. |
Characteristics and Features
Automatic | Yes |
Impeller Material | Thermoplastic |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Nitrile |
Shutoff Head in Feet | 60 |
Switch Type | Float |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Impeller Material | Thermoplastic |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Nitrile |
Shutoff Head in Feet | 60 |
Switch Type | Float |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.5 |
Electrical Phases | 1 |
Horsepower | .5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 1045 |
Electrical and Operational Information
Amperage | 9.5 |
Electrical Phases | 1 |
Horsepower | .5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 1045 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
