Metalbest Sure-Temp 7" Class A Chimney Pipe Adjustable Roof Flashing for 6/12 to 12/12 Roof Pitch
Model: 207830|Item: bci1069118
Details

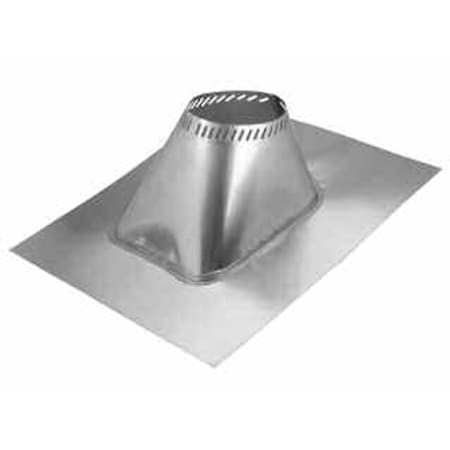

7" Class A Chimney Pipe Adjustable Roof Flashing for 6/12 to 12/12 Roof Pitch from Sure-Temp
Flashings are used to seal the opening where the chimney penetrates the roof and to divert rain and snow down from the roof and away from the chimney system. It is important to choose flashing that matches the pitch of your roof. This adjustable flashing works for 6/12 to 12/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 7 inches is a 7/12 pitch.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
- Materials: Stainless steel
- Clearance: 2" to combustibles
- Allowable Flue Gas Temperatures:
- Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
- Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
- Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
Manufacturer Resources
Installation GuideDimensions and Measurements
Base Length | 31.875 in. |
Base Width | 27 in. |
Bottom Diameter | 19.875 in. |
Pipe Inside Diameter | 7 in. |
Pitch | 6/12 - 12/12 |
Top Diameter | 9.125 in. |
Dimensions and Measurements
Base Length | 31.875 in. |
Base Width | 27 in. |
Bottom Diameter | 19.875 in. |
Pipe Inside Diameter | 7 in. |
Pitch | 6/12 - 12/12 |
Top Diameter | 9.125 in. |
Characteristics and Features
Configuration | Flashing |
Material | Aluminum, Stainless Steel |
Pipe Class | Class A |
Pipe Shape | Round |
Vent Construction | Double Wall |
Characteristics and Features
Configuration | Flashing |
Material | Aluminum, Stainless Steel |
Pipe Class | Class A |
Pipe Shape | Round |
Vent Construction | Double Wall |
Electrical and Operational Information
Fuel Type | Coal, Oil, Wood |
Electrical and Operational Information
Fuel Type | Coal, Oil, Wood |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | Limited Lifetime |
