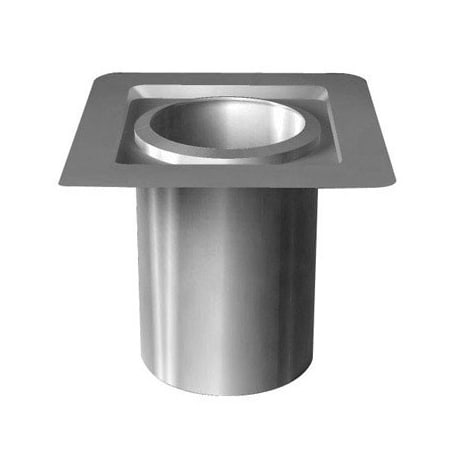

Metalbest Sure-Temp 8" Class A Chimney Pipe Firestop / Joist Shield

Model:208465

$77.65
Finish: Stainless Steel -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 7 to 12 weeks
-
Return & Shipping Details

Details

8" Class A Chimney Pipe Firestop / Joist Shield from Sure-Temp

This piece is used in floor/ceiling penetrations other than those which include a ceiling support or attic insulation shield. This shield is not required when passing through roof.

The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.

Features:

  • Materials: Stainless steel
  • Clearance: 2" to combustibles
  • Allowable Flue Gas Temperatures:
  • Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
  • Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
  • Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
  • UL Listed: UL-103-HT
  • Warranty: Lifetime Limited Warranty
  • 77955
Additional Metalbest Links

Manufacturer Resources

Installation Guide

Dimensions and Measurements

Base Length
16 in.
Base Width
14 in.
Height
12 in.
Inside Diameter
10.125 in.
Outside Diameter
12 in.
Pipe Inside Diameter
8 in.

Dimensions and Measurements

Base Length
16 in.
Base Width
14 in.
Height
12 in.
Inside Diameter
10.125 in.
Outside Diameter
12 in.
Pipe Inside Diameter
8 in.

Characteristics and Features

Configuration
Shield
Material
Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Characteristics and Features

Configuration
Shield
Material
Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime
