Item # bci1070052
Metalbest
Galvanized
Item # bci1070052

Metalbest Sure-Temp 8" Class A Chimney Pipe Adjustable Roof Flashing for 2/12 to 6/12 Roof Pitch

Model:208825

$134.57
Finish: Galvanized -
14 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

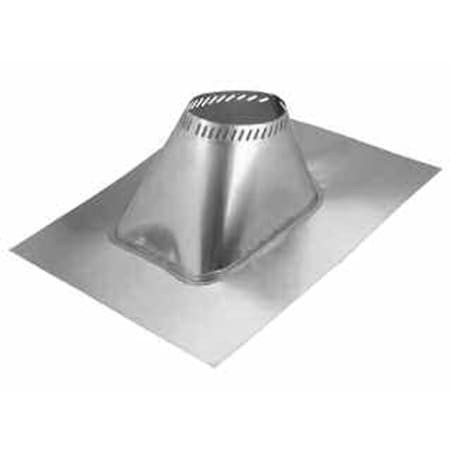

8" Class A Chimney Pipe Adjustable Roof Flashing for 2/12 to 6/12 Roof Pitch from Sure-Temp

Flashings are used to seal the opening where the chimney penetrates the roof and to divert rain and snow down from the roof and away from the chimney system. It is important to choose flashing that matches the pitch of your roof. This adjustable flashing works for 2/12 to 6/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 5 inches is a 5/12 pitch.

The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.

Features:

  • Materials: Stainless steel
  • Clearance: 2" to combustibles
  • Allowable Flue Gas Temperatures:
    • Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
    • Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
    • Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
  • .025 aluminum base
  • UL Listed: UL-103-HT
  • Warranty: Lifetime Limited Warranty
Additional Metalbest Links

Manufacturer Resources

Installation Guide

Dimensions and Measurements

Base Length
31.875 in.
Base Width
27 in.
Bottom Diameter
19.875 in.
Pipe Inside Diameter
8 in.
Pitch
2/12 - 6/12
Top Diameter
10.125 in.

Dimensions and Measurements

Base Length
31.875 in.
Base Width
27 in.
Bottom Diameter
19.875 in.
Pipe Inside Diameter
8 in.
Pitch
2/12 - 6/12
Top Diameter
10.125 in.

Characteristics and Features

Configuration
Flashing
Material
Aluminum, Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Characteristics and Features

Configuration
Flashing
Material
Aluminum, Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime
