Item # bci3170518
Progress Lighting
Finish: Antique Bronze
Item # bci3170518

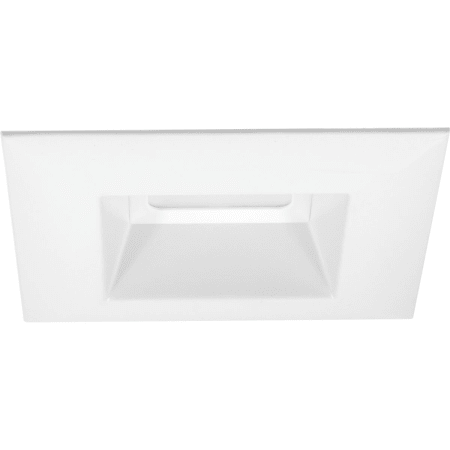

Progress Lighting Recessed LED 5" Square Trim with Diffused Polycarbonate Lens

Model:P8161-20-30K

$58.59
Finish: Antique Bronze -
789 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

The P8161 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 60W incandescent downlight, providing up to 75% energy savings. The P8161 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.

Features

  • Can be installed in most 5" round recessed housings
  • Suitable for use in IC or NON-IC applications
  • Diffused polycarbonate lens controls direct glare from the LEDs
  • Easy “Push and Twist” installation with (3) friction spring clips
  • Comes with diffused polycarbonate lens
  • Dimmable to 10% with many Triac/Forward Phase dimmers
  • Rated for wet locations
  • Energy Star approved for energy efficiency
  • Compliant with California Title 24 energy standards
  • Fully covered under Progress Lighting 5 year limited warranty

Dimensions

  • Trim Size: 5"
  • Height: 4-1/16"
  • Width: 5-3/4"
  • Product Weight: 1.0 lbs

Electrical Specifications

  • Bulb Base: Integrated LED
  • Number of Bulbs: 1
  • Bulb Included: Yes
  • Watts Per Bulb: 9 watts
  • Wattage: 9 watts
  • Voltage: 120 volts
  • Color Temperature: 3000K
  • Average Hours: 50000
  • Lumens: 550
Additional Progress Lighting Links

Dimensions and Measurements

Height
4.06 in.
Product Weight
1.04 lbs.
Trim Size
5 in.
Width
5.78 in.

Dimensions and Measurements

Height
4.06 in.
Product Weight
1.04 lbs.
Trim Size
5 in.
Width
5.78 in.

Included Components

Bulb Included
Yes
Shade
Yes

Included Components

Bulb Included
Yes
Shade
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
3000K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Down Lighting
Number of Bulbs
1
Number of Light Source(s)
1
Retrofit
Yes
Shade Color
White
Shade Material
Synthetic
Shade Shape
Rectangle
Theme
Transitional, Modern
Trim Style
Shower Trims, Square Trims

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
3000K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Down Lighting
Number of Bulbs
1
Number of Light Source(s)
1
Retrofit
Yes
Shade Color
White
Shade Material
Synthetic
Shade Shape
Rectangle
Theme
Transitional, Modern
Trim Style
Shower Trims, Square Trims

Electrical and Operational Information

Average Hours
50000 Hours
Lumens
550
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
9
Watts Per Bulb
9

Electrical and Operational Information

Average Hours
50000 Hours
Lumens
550
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
9
Watts Per Bulb
9

Warranty and Product Information

Collection
Recessed LED
Country Of Origin
China
Energy Star
Yes
IC Rating
IC
Location Rating
Wet Location
Manufacturer Warranty
5 Year Limited
Title 24
Yes

Warranty and Product Information

Collection
Recessed LED
Country Of Origin
China
Energy Star
Yes
IC Rating
IC
Location Rating
Wet Location
Manufacturer Warranty
5 Year Limited
Title 24
Yes
