Item # bci4633024

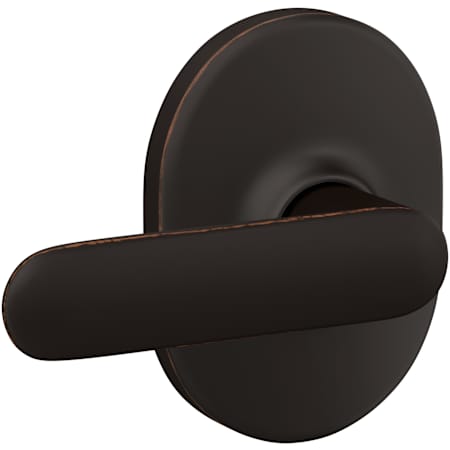

Schlage Davlin Passage Door Lever Set with Decorative Remsen Trim

Model:F10DAV716RMN

$59.11
Finish: Aged Bronze -
15 In Stock
Finish: Aged Bronze -
15 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details



passage-functionPassage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.



Features:

  • Tested to exceed ANSI/BHMA Grade 2 security requirements
  • Constructed of high quality materials for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Covered by Schlage's limited lifetime manufacturer warranty
  • ADA compliant

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Handle Length: 3-13/16"
  • Handle Projection: 1-5/8"
  • Trim Width: 2-1/2"
  • Trim Height: 4"
  • Product Weight: 2.02 lbs.
  • Latch Faceplate: Drive-In or Round Corner
Additional Schlage Links

Manufacturer Resources

Handing GuideInstallationWarranty

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
3.80 in.
Handle Projection
1.60 in.
Product Weight
2.02 lbs.
Trim Height
4 in.
Trim Width
2.5 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
3.80 in.
Handle Projection
1.60 in.
Product Weight
2.02 lbs.
Trim Height
4 in.
Trim Width
2.5 in.

Characteristics and Features

Concealed Screws
No
Function
Passage
Handing
Left, Reversible, Right
Handle Design
Davlin
Handle Material
Metal
Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Lever Shape
Flat, Straight
Material
Zinc
Rosette Shape
Oval
Theme
Contemporary
Trim Design
Remsen

Characteristics and Features

Concealed Screws
No
Function
Passage
Handing
Left, Reversible, Right
Handle Design
Davlin
Handle Material
Metal
Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Lever Shape
Flat, Straight
Material
Zinc
Rosette Shape
Oval
Theme
Contemporary
Trim Design
Remsen

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Davlin
Country Of Origin
Mexico
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
F-Series

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Davlin
Country Of Origin
Mexico
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
F-Series
