Item # bci4648475

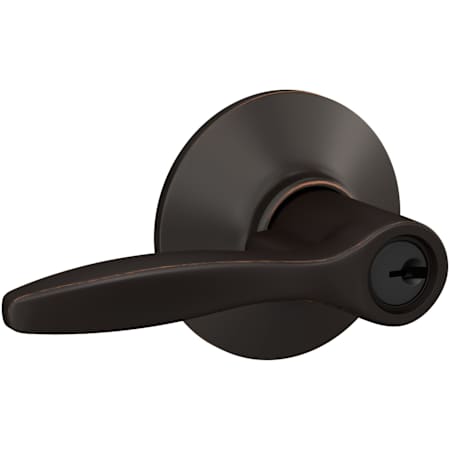

Schlage Delfayo Left Handed Single Cylinder Keyed Entry Door Lever Set with Plymouth Trim

Model:F80DEL716LH

$83.43
Finish: Aged Bronze -
Special Order
Finish: Aged Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

storeroom-functionStoreroom: Storeroom door hardware feature an outside handle that is always locked while the inside handle is always unlocked and free turning. Entry from exterior is only possible via key.

Features:

  • Tested to exceed ANSI/BHMA Grade 2 security requirements
  • Constructed of high quality materials for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Covered by Schlage's limited lifetime manufacturer warranty
  • ADA compliant

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Left
  • Handle Length: 3-7/8"
  • Handle Projection: 1-11/16"
  • Trim Width: 2-3/4"
  • Trim Height: 2-3/4"
  • Product Weight: 1.77 lbs.
  • Latch Faceplate: Drive-In, Round Corner, or Square Corner
  • Cylinder: 5 Pin C
Additional Schlage Links

Manufacturer Resources

Handing GuideInstallationWarranty

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
3.86 in.
Handle Projection
1.67 in.
Product Weight
1.77 lbs.
Trim Height
2.75 in.
Trim Width
2.75 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
3.86 in.
Handle Projection
1.67 in.
Product Weight
1.77 lbs.
Trim Height
2.75 in.
Trim Width
2.75 in.

Included Components

Cylinder Included
Yes

Included Components

Cylinder Included
Yes

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin C
Cylinder Type
Single Cylinder
Function
Keyed Entry, Single Cylinder, Storeroom
Handing
Left
Handle Design
Delfayo
Handle Material
Metal
Handle Style
Lever
Keyway
C
Latch Faceplate
Drive-In, Round Corner, Square Corner
Lever Shape
Straight
Material
Zinc
Panic Proof
Yes
Rosette Shape
Round
Theme
Contemporary
Trim Design
Plymouth

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin C
Cylinder Type
Single Cylinder
Function
Keyed Entry, Single Cylinder, Storeroom
Handing
Left
Handle Design
Delfayo
Handle Material
Metal
Handle Style
Lever
Keyway
C
Latch Faceplate
Drive-In, Round Corner, Square Corner
Lever Shape
Straight
Material
Zinc
Panic Proof
Yes
Rosette Shape
Round
Theme
Contemporary
Trim Design
Plymouth

Manufacturer Technology

SmartKey
No

Manufacturer Technology

SmartKey
No

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Delfayo
Country Of Origin
Mexico
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
F-Series

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Delfayo
Country Of Origin
Mexico
Fire Rated
No
Manufacturer Warranty
Limited Lifetime
Series
F-Series
