Item # bci2948871
Schlage
Finish: Aged Bronze
Schlage-F80-SIE-ADD-Schlage Finishes
Schlage-F80-SIE-ADD-Understanding Grading
Schlage-F80-SIE-ADD-Alternative View
Finish: Aged Bronze
Schlage-F80-SIE-ADD-Schlage Finishes
Schlage-F80-SIE-ADD-Understanding Grading
Schlage-F80-SIE-ADD-Alternative View
Item # bci2948871

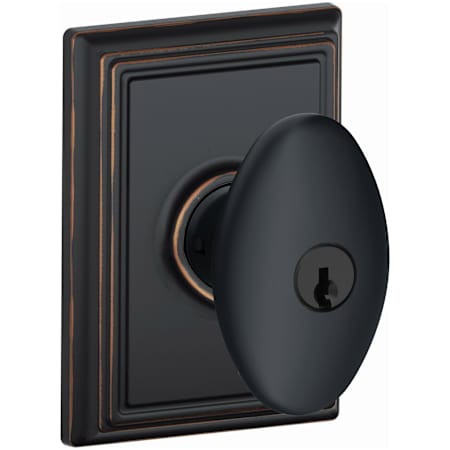

Schlage Siena Single Cylinder Keyed Entry Storeroom Door Knob Set with Decorative Addison Trim

Model:F80SIE716ADD

$68.68
Finish: Aged Bronze -
Special Order
Finish: Aged Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

storeroom-functionStoreroom Function: Schlage storeroom knob sets feature an outside knob that is always locked while the inside knob is always unlocked and free turning. Entry from exterior is only possible via key.

Product Features:

lifetimeA Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)

easyinstallInstallation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.

grade2BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.

Specifications:

  • Backset: Adjustable to 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 7/8"
  • Projection: 2-3/8"
  • Door Thickness: 1-3/8" - 1-3/4"
  • Handing: Left, Right, Reversible
  • Product Weight: 1.55 lbs
  • Handle Design: Siena
  • Trim Design: Addison
  • Latch Faceplate: Drive-in, Square Corner, Round Corner
  • Cylinder: 5 Pin Schlage C
Additional Functions:
  • F10-SIE-ADD: Passage Door Knob Set
  • F40-SIE-ADD: Privacy Door Knob Set
  • F51A-SIE-ADD: Panic Proof Keyed Entry Door Knob Set
  • F80-SIE-ADD (This Model): Storeroom Keyed Entry Door Knob Set
  • F170-SIE-ADD: Single Dummy Knob
Additional Schlage Links

Dimensions and Measurements

Backset
2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
7/8"
Handle Projection
2.375 in.
Product Weight
1.55 lbs.
Trim Height
4 in.
Trim Width
2.75 in.

Dimensions and Measurements

Backset
2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
7/8"
Handle Projection
2.375 in.
Product Weight
1.55 lbs.
Trim Height
4 in.
Trim Width
2.75 in.

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin Schlage C
Function
Keyed Entry, Storeroom
Handing
Left, Reversible, Right
Handle Design
Siena
Handle Material
Metal
Keyway
C
Knob Shape
Egg
Latch Faceplate
Drive-In, Round Corner, Square Corner
Rosette Shape
Rectangle
Theme
Modern
Trim Design
Addison

Characteristics and Features

Concealed Screws
No
Cylinder
5 Pin Schlage C
Function
Keyed Entry, Storeroom
Handing
Left, Reversible, Right
Handle Design
Siena
Handle Material
Metal
Keyway
C
Knob Shape
Egg
Latch Faceplate
Drive-In, Round Corner, Square Corner
Rosette Shape
Rectangle
Theme
Modern
Trim Design
Addison

Warranty and Product Information

ADA
No
ANSI Certification
A156.5
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI
Collection
Addison, Siena
Manufacturer Warranty
Lifetime Finish, Limited Lifetime Mechanical
Series
F-Series

Warranty and Product Information

ADA
No
ANSI Certification
A156.5
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI
Collection
Addison, Siena
Manufacturer Warranty
Lifetime Finish, Limited Lifetime Mechanical
Series
F-Series
