Item # bci4648438

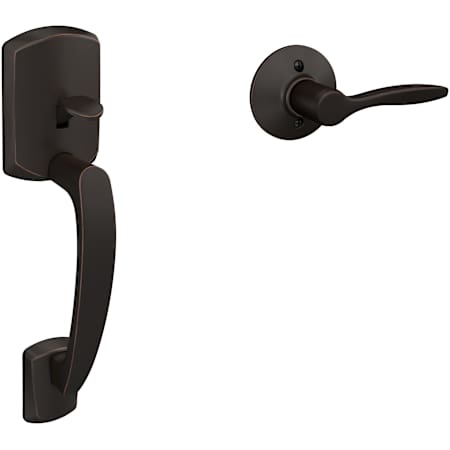

Schlage Greenwich Left Handed Sectional Lower Half Handleset with Delfayo Interior Lever

Model:FE285GRW716DELLH

$173.82
Finish: Aged Bronze -
Special Order
Finish: Aged Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

lower-half-entry-setHandleset (Lower Half): This is the lower half of a keyed entry set and is meant to be paired with a deadbolt. Choose from the standard single cylinder turn-key deadbolt or go with an electronic deadbolt that adds a variety of safety and convenience features.

Features:

  • Constructed of high quality materials for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Covered by Schlage's limited lifetime manufacturer warranty
  • Pair with the deadbolt of your choice for a complete entry set

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-1/2" to 1-7/8"
  • Handing: Left
  • Latch Faceplate: Drive-In or Round Corner
  • Mounting Center to Center: 5-1/2"
  • Overall Height: 12-1/4"
  • Handle Projection: 2-7/8"
  • Trim Height: 12-1/4"
  • Trim Width: 3"
  • Interior Handle Length: 3-7/8"
  • Interior Handle Projection: 1-11/16"
  • Interior Trim Height: 2-3/4"
  • Interior Trim Width: 2-3/4"
Additional Schlage Links

Manufacturer Resources

Handing GuideWarranty

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Center to Center
5.5 in.
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-5/8", 1-7/8"
Edge Bore
1"
Handle Projection
2.875 in.
Interior Handle Length
3.86 in.
Interior Handle Projection
1.67 in.
Interior Trim Height
2.75 in.
Interior Trim Width
2.75 in.
Overall Height
12.25 in.
Product Weight
3.06 lbs.
Trim Height
12.25 in.
Trim Width
3 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Center to Center
5.5 in.
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-5/8", 1-7/8"
Edge Bore
1"
Handle Projection
2.875 in.
Interior Handle Length
3.86 in.
Interior Handle Projection
1.67 in.
Interior Trim Height
2.75 in.
Interior Trim Width
2.75 in.
Overall Height
12.25 in.
Product Weight
3.06 lbs.
Trim Height
12.25 in.
Trim Width
3 in.

Characteristics and Features

Adjustable Throughbolt
Yes
Concealed Screws
No
Function
Handle Only
Handing
Left
Handle Design
Delfayo
Handle Material
Metal
Handle Style
Lever
Handleset Design
Greenwich
Interior Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Material
Zinc
Mount
Sectional
Theme
Contemporary
Trim Design
Plymouth

Characteristics and Features

Adjustable Throughbolt
Yes
Concealed Screws
No
Function
Handle Only
Handing
Left
Handle Design
Delfayo
Handle Material
Metal
Handle Style
Lever
Handleset Design
Greenwich
Interior Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Material
Zinc
Mount
Sectional
Theme
Contemporary
Trim Design
Plymouth

Warranty and Product Information

ADA
No
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Greenwich
Country Of Origin
Mexico
Manufacturer Warranty
Limited Lifetime
Series
F-Series

Warranty and Product Information

ADA
No
ANSI Certification
A156.2, A156.39
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Greenwich
Country Of Origin
Mexico
Manufacturer Warranty
Limited Lifetime
Series
F-Series
