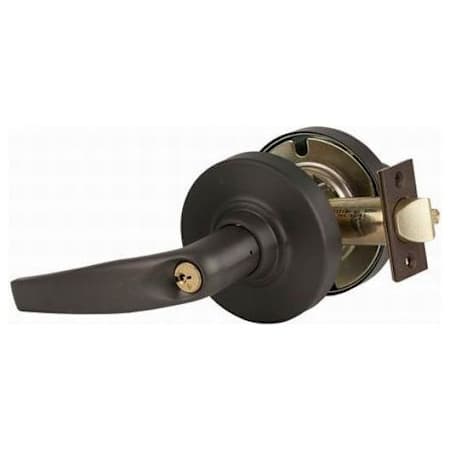

Schlage Athens Commercial ANSI Grade 1 Keyed Corridor Door Lever Set

Keyed Corridor Lock: The corridor function provides push-button locking from the inside and by a key on the outside. When locked from the inside by the push-button turning the inside lever or closing the door will release the button. When the lever is locked by a key it can only be unlocked by a key. The inside lever is always unlocked providing panic proof exiting.

Features:

• Cylinder options are provided for Schlage C keyway
• Meets ANSI/BHMA Certification A156.2/Grade 1
• All metal construction for durability
• Left or right handing allows versatile application
• This product is compliant with ADA standards
• Panic Proof: Yes
• Fire Rated: Yes
• This lever and trim have concealed screws

Product Technologies:

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.

Specifications:

• Lever Length: 4-9/16"
• Handing: Reversible (left or right)
• Backset: 2-3/4", 2-3/8", 3-3/4", 5"
• Door Thickness: 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8"
• Handle Design: Athens
• Cylinder: Cylinder: Schlage C Keyway 6-Pin
