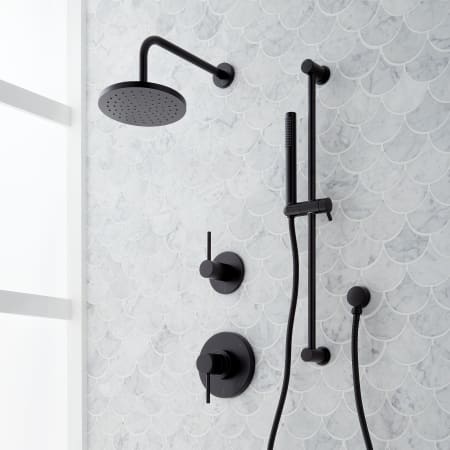

Signature Hardware Lexia Pressure Balanced Shower System with Rainfall Shower Head, Hand Shower, Slide Bar, Shower Arm, Hose, and Valve Trim - Accufit Rough-In Valve Included
Model: SHK483762|Item: bci4413715







This package includes the following items
Details
Experience the simple elegance of the Lexia Pressure Balance Shower System. Minimalist in design while delivering spa-like luxury, this system allows for a truly customized shower setup. A slide bar and hand shower ensure no spots are out of reach while the single-lever pressure balance system easily keeps your settings from fluctuating. To ensure lasting beauty and reliability, these fixtures are made of durable metal in a variety of rust-resistant finishes.
Signature Hardware 953776 Features:
- Shower Package Includes: diverter, handshower, hose, shower arm, slide bar, rough-in, and valve trim
- Covered under Signature Hardware's 25 year limited warranty
- Pressure balanced valve trim - dual cartridges control water temperature and volume independently
- 2 lever style metal handles
- 28" slide bar included
- Matching hand shower with 60" hose
- Pressure balanced rough-in valve
- High quality finish – will resist rust and corrosion through everyday use
- Metal lever handle
- Single function 8" rainfall shower head
- Single function hand shower with easy-clean spray nozzles
- 60" - 72" stretchable metal shower hose
- Included rough-in valves:

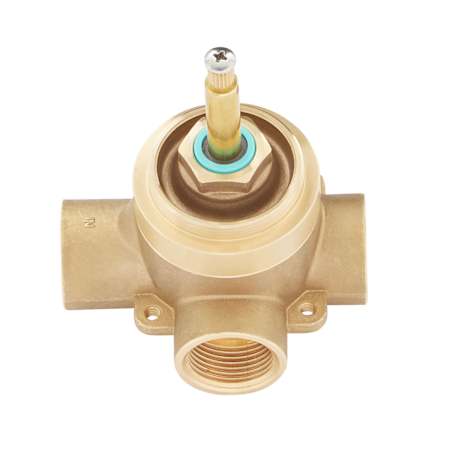

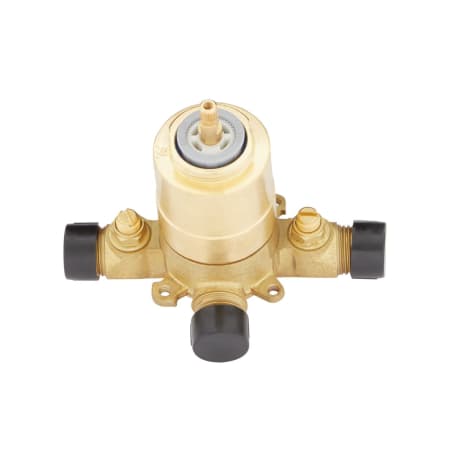

- Pressure balance valve features a one-piece cartridge design for ease of maintenance, back-to-back capability, a ceramic disc cartridge, cast bronze valve body, adjustable temperature limit stop, a quick remove plaster guard, easy mounting brackets and integral stops
- Ceramic cartridge

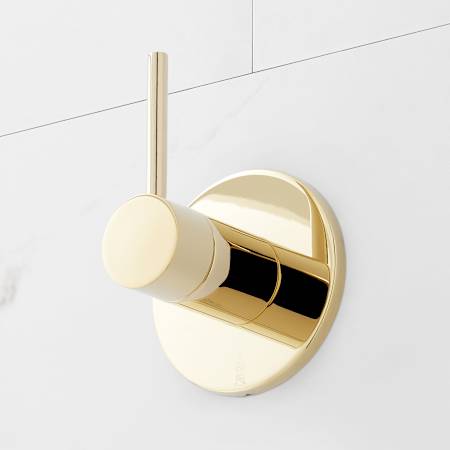

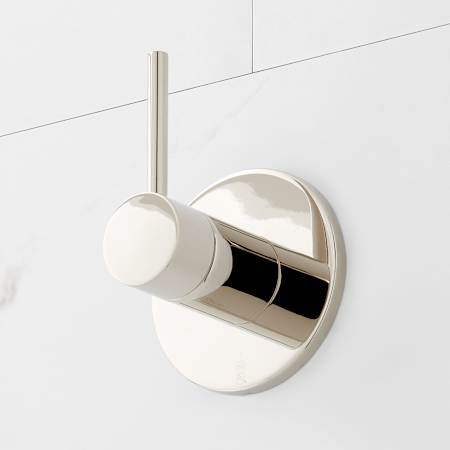

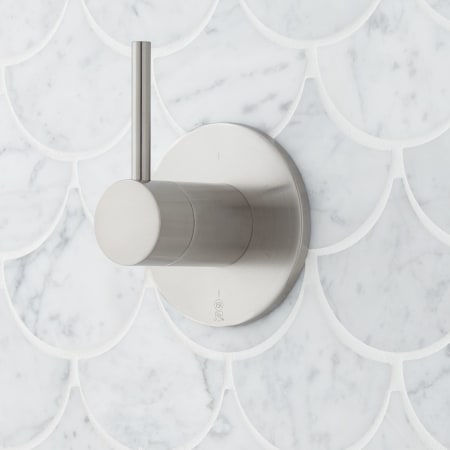

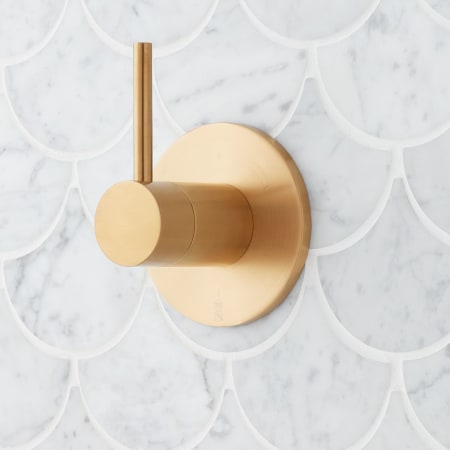

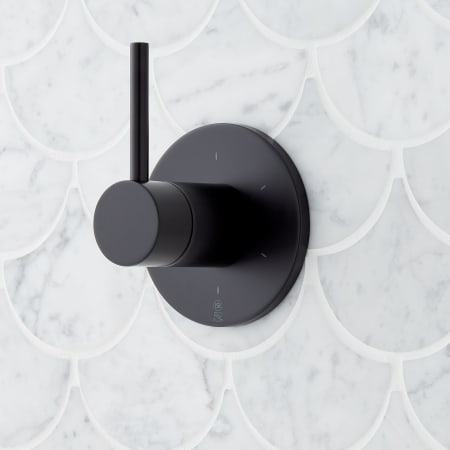

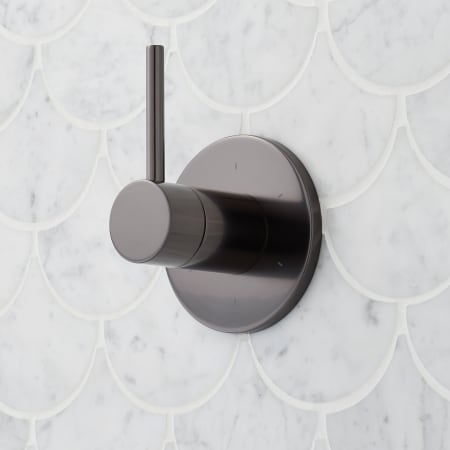

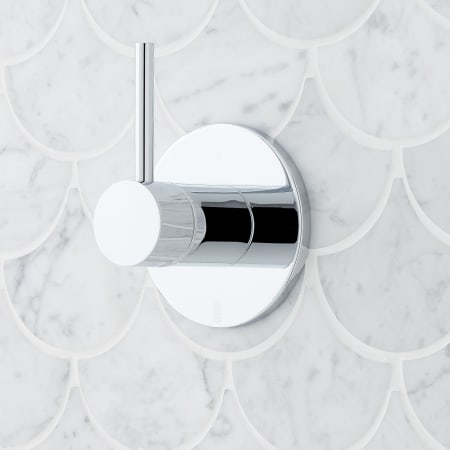

- Diverter valve features a ceramic disc cartridge, brass valve body, and available single-function diverter valve cartridge restricts water flow to one outlet at a time
Signature Hardware 953776 Technologies and Benefits:
- ACCUFIT: With more than 20 years of proven dependability and hundreds of thousands in service, the ACCUFIT Rough-In Valve has been designed for ease of maintenance. True to its name, it fits all Signature Hardware Key Bath Faucet Collection Pressure Balanced Shower Systems.

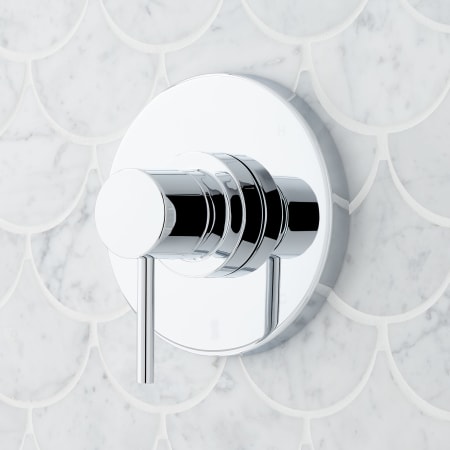

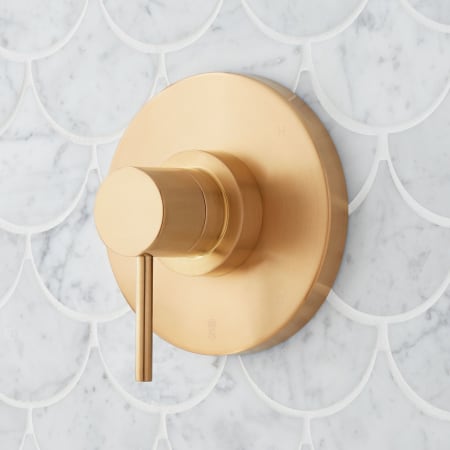

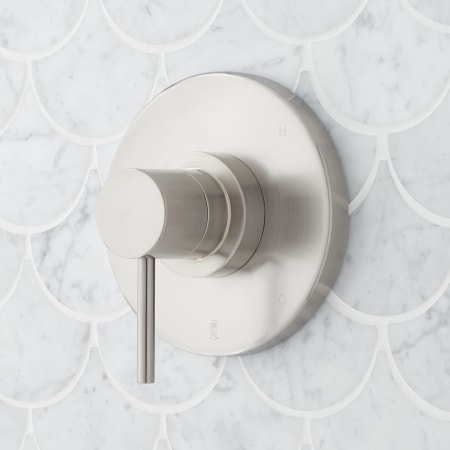

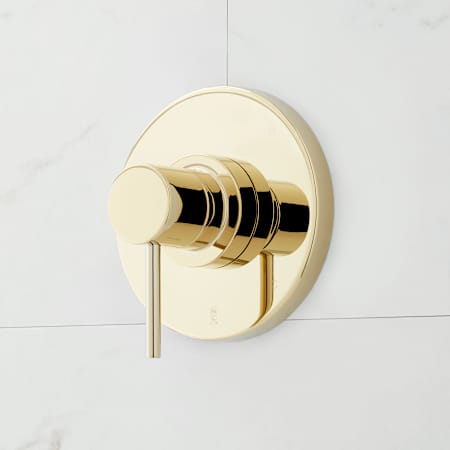

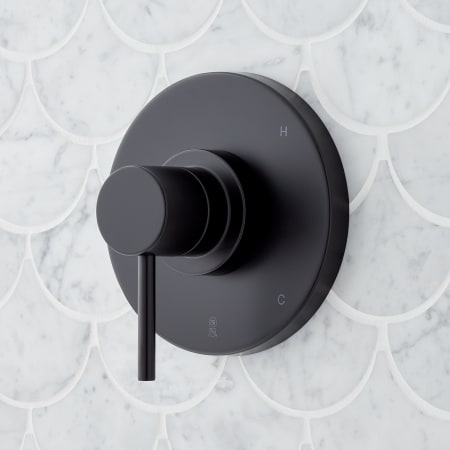

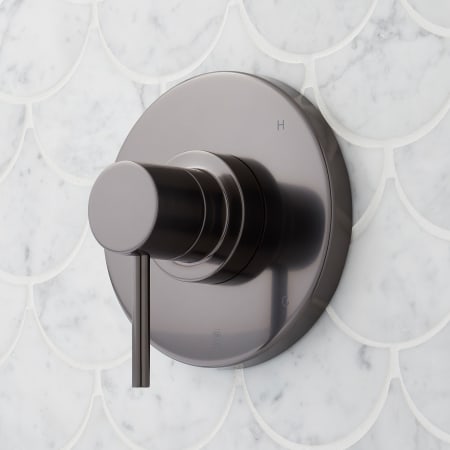

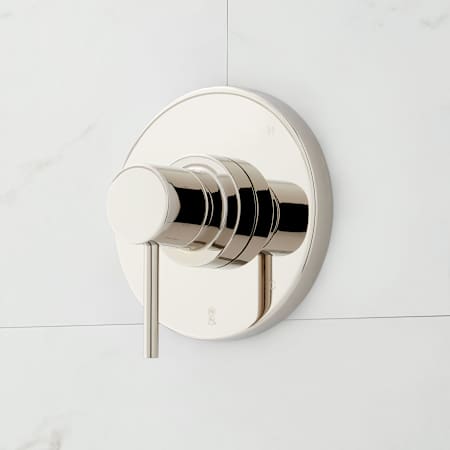

Signature Hardware 953776 Shower Valve Trim Specifications:
- Valve trim constructed of metal ensuring dependability and longevity
- Features a pressure balanced valve
- Rough-in valve is included with this package

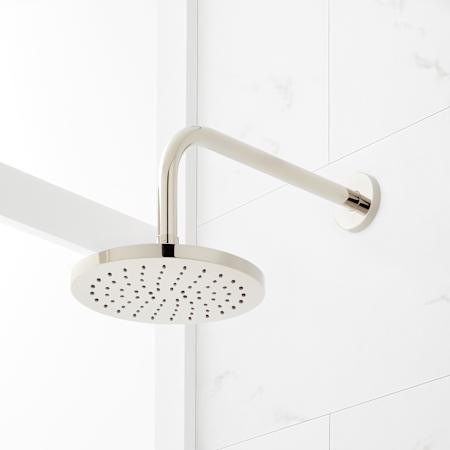

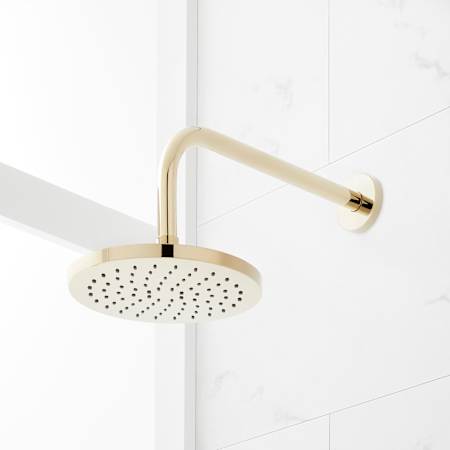

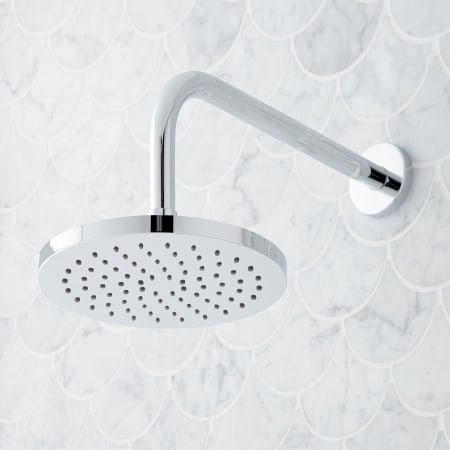

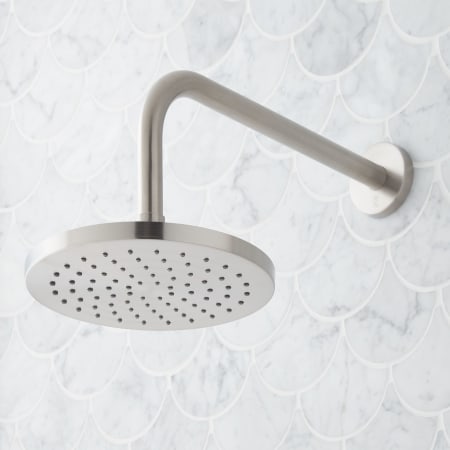

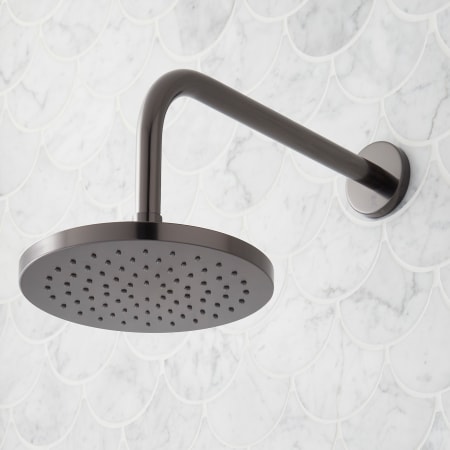

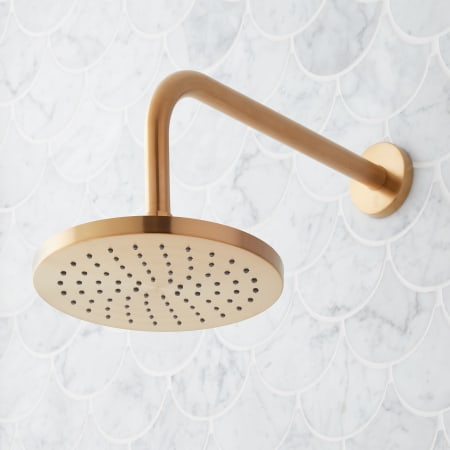

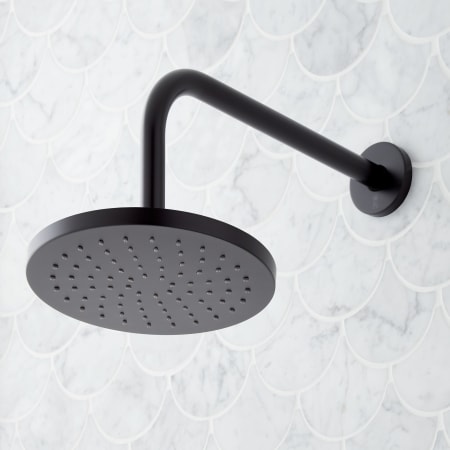

Signature Hardware 953776 Shower Head Specifications:
- Single function showerhead with rain spray pattern
- Shower Head Flow Rate: 1.8 gallons-per-minute
- Shower Arm Length: 12-3/8"

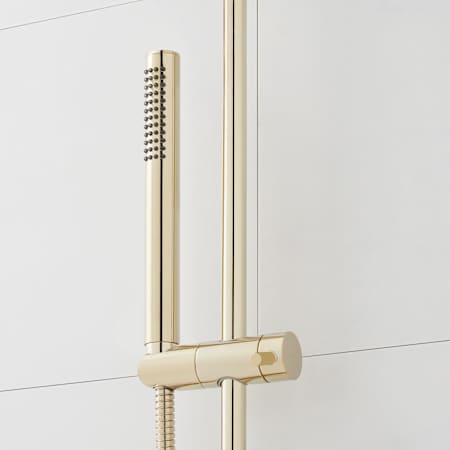

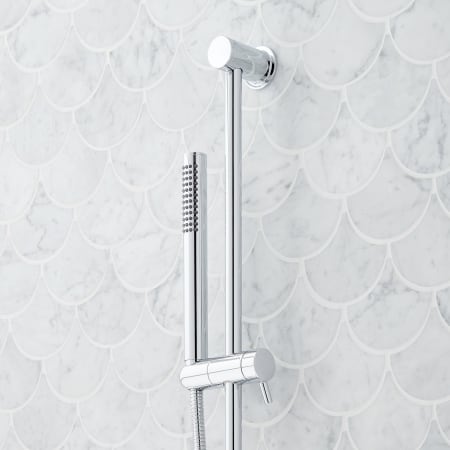

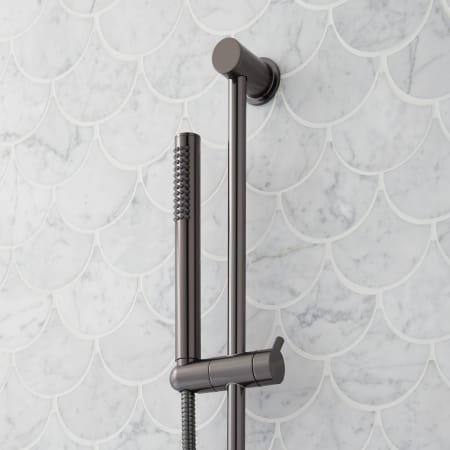

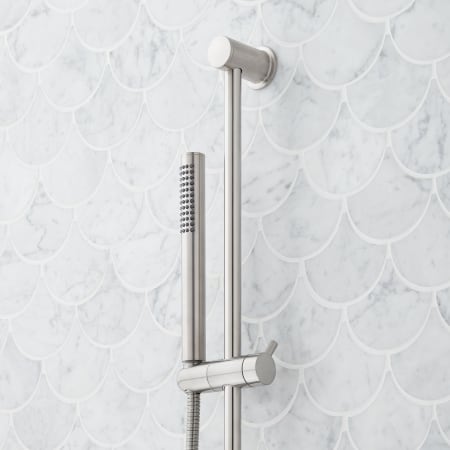

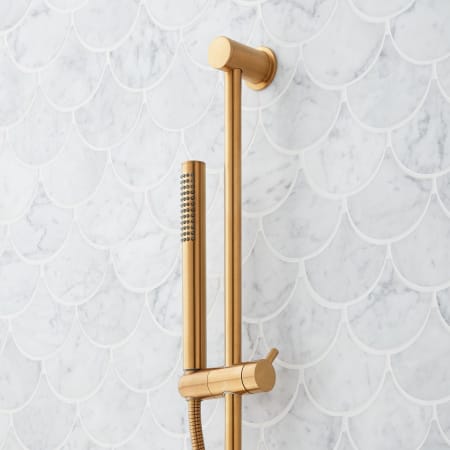

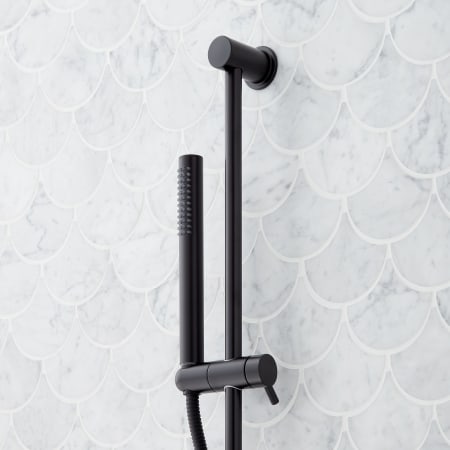

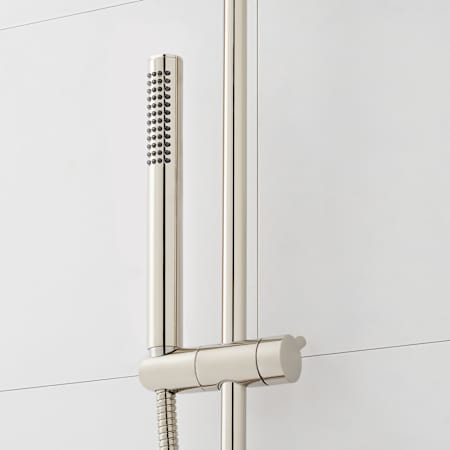

Signature Hardware 953776 Hand Shower Specifications:
- Hose Length: 60"
- Hand Shower Flow Rate: 1.8 gallons-per-minute
- Hand Shower Type: Single Function
Dimensions and Measurements
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 60 in. |
Shower Arm Reach | 12.375 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 2.0625 in. |
Showerhead Width | 7.875 in. |
Slide Bar Height | 28 in. |
Valve Trim Height | 7.125 in. |
Valve Trim Width | 6.6875 in. |
Dimensions and Measurements
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 60 in. |
Shower Arm Reach | 12.375 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 2.0625 in. |
Showerhead Width | 7.875 in. |
Slide Bar Height | 28 in. |
Valve Trim Height | 7.125 in. |
Valve Trim Width | 6.6875 in. |
Included Components
Bodysprays Included | No |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Slide Bar Included | Yes |
Valve Included | Yes |
Valve Trim Included | Yes |
Wall Supply Included | Yes |
Included Components
Bodysprays Included | No |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Slide Bar Included | Yes |
Valve Included | Yes |
Valve Trim Included | Yes |
Wall Supply Included | Yes |
Characteristics and Features
Control Type | Lever |
Diverter Location | Wall Mounted |
Faucet Type | Shower System |
Handle Material | Metal |
Handle Style | Lever |
Handshower | Single Function |
Installation Type | Wall Mounted |
Material | Metal |
Number Of Handles | 2 |
Showerhead | Single Function |
Showerhead Material | ABS |
Showerhead Shape | Round |
Spray Pattern | Rain |
Spray Settings | 1 |
Theme | Modern |
Valve Trim Material | Metal |
Valve Type | Pressure Balanced |
Water Efficient | Yes |
Characteristics and Features
Control Type | Lever |
Diverter Location | Wall Mounted |
Faucet Type | Shower System |
Handle Material | Metal |
Handle Style | Lever |
Handshower | Single Function |
Installation Type | Wall Mounted |
Material | Metal |
Number Of Handles | 2 |
Showerhead | Single Function |
Showerhead Material | ABS |
Showerhead Shape | Round |
Spray Pattern | Rain |
Spray Settings | 1 |
Theme | Modern |
Valve Trim Material | Metal |
Valve Type | Pressure Balanced |
Water Efficient | Yes |
Warranty and Product Information
ASME Code | A112.18.1 |
ASSE Code | 1016 |
CA Drought Compliant | Yes |
Certifications | AMSE, ANSI, ASSE, CSA, UPC |
Collection | Lexia |
Country Of Origin | China |
CSA Code | B125.1 |
Manufacturer Warranty | 25 Year Limited |
