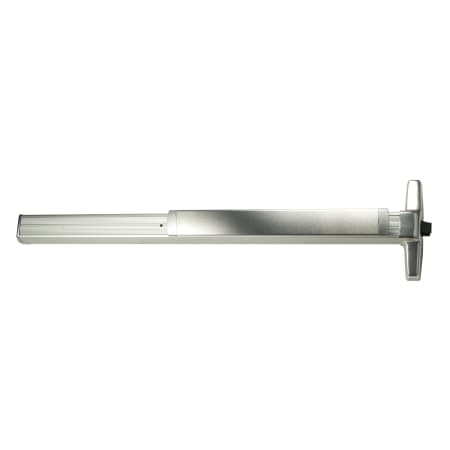

Von Duprin 4 Foot Exit Only Rim Exit Device from the 33A Series
Model: 33AEO26D4|Item: bci2368553
from the33A Collection
$1,812.24
Finish: Satin Chrome -
2 In Stock
Details
Features:
- Rim Device for Single and Double Doors with Mullion Applications
- UL Listed for Panic Exit Hardware
- 33A Series Devices Have Grooved Case
- Rim Device is Non-Handed Except when Single Switch Option is Used
- Ships with 1439 Roller Strike Standard
- Fits Door Styles as Narrow as 1-3/4"
- Device Length: 4'
- For Use on 2'10" to 4' Sized Doors
- Center Case Dimensions: 8-3/16" x 1-9/16" x 2-13/32"
- Mechanism Case Dimensions: 2-1/4" x 2-1/4"
- Push bar Neutral Projection: 3-13/16"
- Push bar Depressed Projection: 3-1/16"
- Latch Bolt: Deadlocking 3/4" Throw
- Includes: Screw Pack for 1-3/4 to 2-1/4" Thick Metal or Wood Doors
- ANSI A156.3-2001 Grade 1
Manufacturer Resources
Specification SheetDimensions and Measurements
Door Thickness | 1-3/4" |
Length | 48 in. |
Max Door Width | 48 in. |
Projection | 3.8125 in. |
Width | 8.1875 in. |
Dimensions and Measurements
Door Thickness | 1-3/4" |
Length | 48 in. |
Max Door Width | 48 in. |
Projection | 3.8125 in. |
Width | 8.1875 in. |
Characteristics and Features
Exit Device Type | Rim Device |
Exit Trim Function | Exit Only |
Handing | Left, Reversible, Right |
Panic Proof | Yes |
Characteristics and Features
Exit Device Type | Rim Device |
Exit Trim Function | Exit Only |
Handing | Left, Reversible, Right |
Panic Proof | Yes |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.3 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | 33A |
Fire Rated | No |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.3 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | 33A |
Fire Rated | No |
