Item # bci3154748
Von Duprin
Finish: Aged Bronze

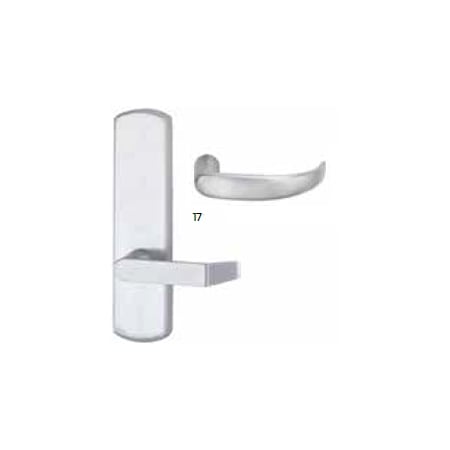

Von Duprin-98LBE17F3LH-17 Lever

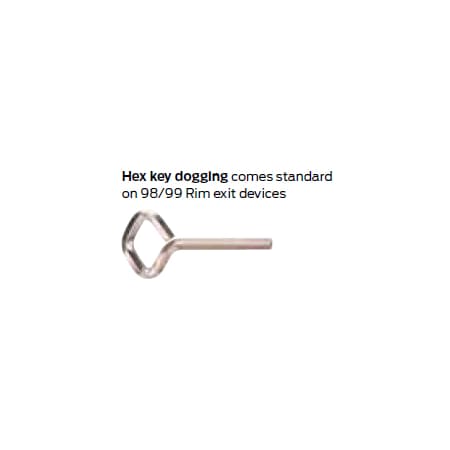

Von Duprin-98LBE17F3LH-Hex key

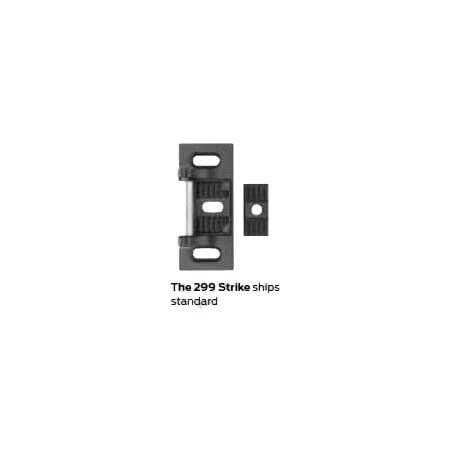

Von Duprin-98LBE17F3LH-Rim strike
Finish: Aged Bronze
Von Duprin-98LBE17F3LH-17 Lever
Von Duprin-98LBE17F3LH-Hex key
Von Duprin-98LBE17F3LH-Rim strike
Item # bci3154748

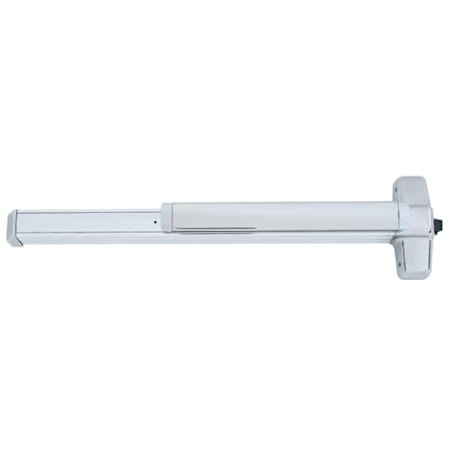

Von Duprin 3' 98 Series Fire Rated Rim Exit Device with Left Hand 17 Lever Blank Escutcheon Trim

Model:98LBEF643E3LHR17

$2,513.77
Finish: Aged Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

Product Features:

  • BHMA Grade 1 rated exit device
  • 3' exit device
  • Covered under manufacturer's 3 year limited warranty
  • 3 hour fire rating
  • Includes blank escutcheon 17 lever exterior trim

Product Specifications:

  • ANSI Certification: A156.3
  • BHMA Certification: Grade 1
  • Cylinder Type: Single Cylinder
  • Exit Device Type: Rim Device
  • Exit Trim Function: Keyed Entry
  • Fire Rated: Yes
  • Handing: Left
  • Projection: 3-13/16"
  • UL Listed: Yes
  • Width: 3'

Dimensions and Measurements

Projection
3.8125 in.
Width
36 in.

Dimensions and Measurements

Projection
3.8125 in.
Width
36 in.

Characteristics and Features

Cylinder Type
Single Cylinder
Dogging
No Dogging
Exit Device Type
Rim Device
Exit Trim Function
Keyed Entry
Handing
Left Hand Reverse

Characteristics and Features

Cylinder Type
Single Cylinder
Dogging
No Dogging
Exit Device Type
Rim Device
Exit Trim Function
Keyed Entry
Handing
Left Hand Reverse

Warranty and Product Information

ANSI Certification
A156.3
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Fire Rated
Yes
Manufacturer Warranty
3 Year Limited
Series
98

Warranty and Product Information

ANSI Certification
A156.3
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Fire Rated
Yes
Manufacturer Warranty
3 Year Limited
Series
98
