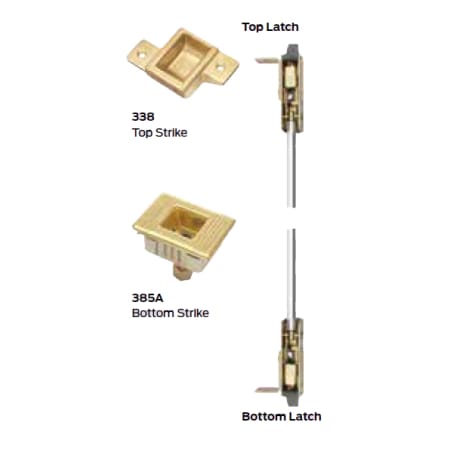

Von Duprin-9948EOF3-Concealed vertical strike

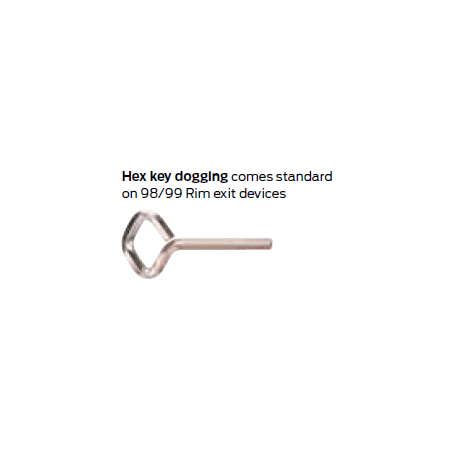

Von Duprin-9948EOF3-Hex key
Real Review of Von Duprin 22 and 99 Exit Devices
Finish: Aged Bronze
Von Duprin-9948EOF3-Concealed vertical strike
Von Duprin-9948EOF3-Hex key
Real Review of Von Duprin 22 and 99 Exit Devices
Item # bci3154930

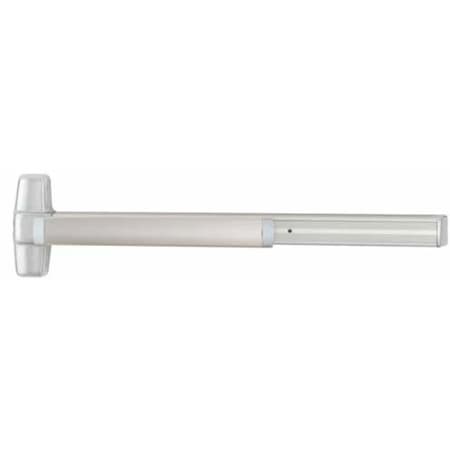

Von Duprin 3' 99 Series Fire Rated Concealed Vertical Rod Exit Device with 1-1/2" Bottom Latch Bolt

Model:9948EOF643E3

$2,902.78
Finish: Aged Bronze -
Special Order
Finish: Aged Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

Product Features:

  • BHMA Grade 1 rated exit device
  • 3' exit device
  • Covered under manufacturer's 3 year limited warranty
  • 1-1/2 or 3 hour fire rating (depending on installation)
  • Exit only function - Exterior trim sold separately

Product Specifications:

  • ANSI Certification: A156.3
  • BHMA Certification: Grade 1
  • Concealed: Yes
  • Cylinder Type: Single Cylinder
  • Exit Device Type: Concealed Vertical Rod Device
  • Exit Trim Function: Exit Only
  • Fire Rated: Yes
  • Handing: Reversible
  • Projection: 3-13/16"
  • UL Listed: Yes
  • Width: 3'

Manufacturer Resources

Service Manual

Dimensions and Measurements

Projection
3.8125 in.
Width
36 in.

Dimensions and Measurements

Projection
3.8125 in.
Width
36 in.

Characteristics and Features

Concealed
Yes
Cylinder Type
Single Cylinder
Dogging
No Dogging
Exit Device Type
Concealed Vertical Rod Device
Exit Trim Function
Exit Only
Handing
Left, Reversible, Right

Characteristics and Features

Concealed
Yes
Cylinder Type
Single Cylinder
Dogging
No Dogging
Exit Device Type
Concealed Vertical Rod Device
Exit Trim Function
Exit Only
Handing
Left, Reversible, Right

Warranty and Product Information

ANSI Certification
A156.3
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Fire Rated
Yes
Manufacturer Warranty
3 Year Limited
Series
99

Warranty and Product Information

ANSI Certification
A156.3
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Fire Rated
Yes
Manufacturer Warranty
3 Year Limited
Series
99
