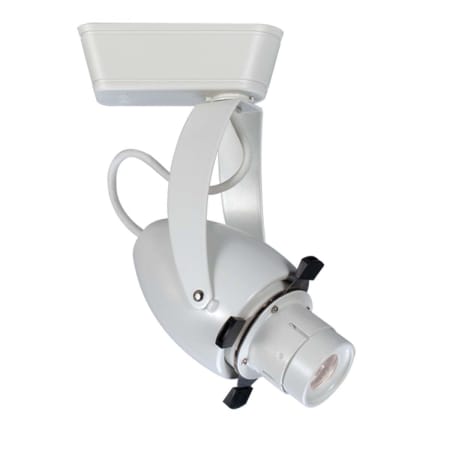

WAC Lighting-H-LED810F-Alternate Image
WAC Lighting required track system components
WAC Lighting track system accessories
Finish: Black / 2700K / 80CRI

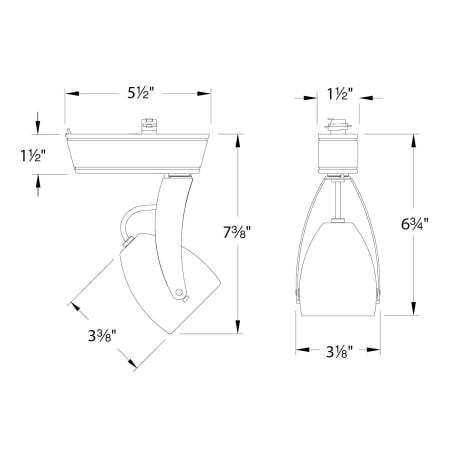

WAC Lighting-H-LED810F-Line Drawing

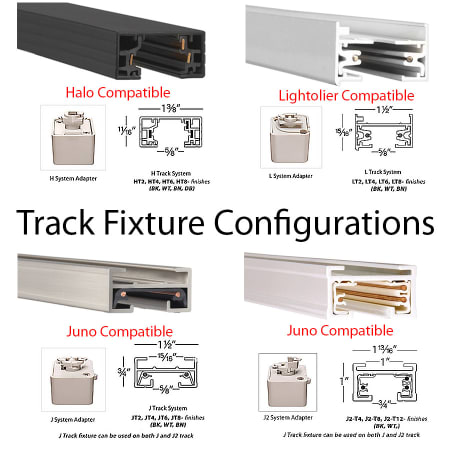

WAC Lighting-H-LED810F-Track Compatibility

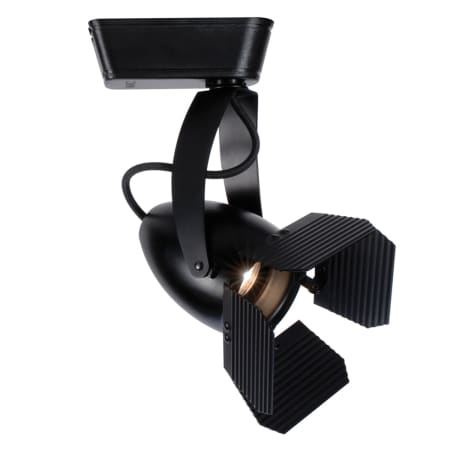

WAC Lighting-H-LED810F-Head with Barndoor
WAC Lighting-H-LED810F-Alternate Image
WAC Lighting required track system components
WAC Lighting track system accessories
Item # bci3493149

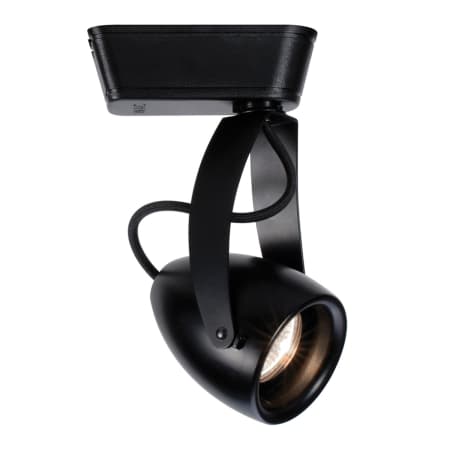

WAC Lighting Impulse H-Track 7" Tall LED Track Head - 40° Flood Beam Spread and 14.5 Watts

Model:H-LED810F-27-BK

$179.95
Finish: Black / 2700K / 80CRI -
84 In Stock
Finish: Black / 2700K / 80CRI -
84 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this thermally efficient luminaire offers architectural lighting options including a framing projector and barn door accessories. Spot and flood beam spreads and two color temperatures make this an all-in-one choice for lighting. For use with 120V track. Track Fixture is available in H, J/J2, and L track configurations. Order according to track layout specifications. Available in 14W and 23W options.

Features

  • 360° horizontal rotation and 180° vertical aiming
  • Die-cast aluminum construction
  • Integrated LED lighting
  • 40° beam spread
  • Smooth and continuous dimming to 10% with an ELV dimmer
  • UL and CUL rated for dry locations
  • California Title 24 energy compliant (90CRI only)
  • Covered under WAC Lighting's 5 year functional and 2 year finish warranties

Dimensions

  • Height: 7-3/8"
  • Width: 3-3/8"
  • Depth: 3-1/8"
  • Product Weight: 1.95 lbs

Track Lighting Specifications

  • System Type: H-Track
  • Accessory Type: Heads
  • Voltage Type: Line Voltage
  • Transformer Wattage: 14.5

Electrical Specifications

  • Wattage: 14.5 watts
  • Lumens: 695, 700, 800, 875, 905, or 950
  • Color Temperature: 2700K, 3000K, 3500K, or 4000K
  • Color Rendering Index: 80 or 90CRI
  • Average Hours: 60000
Additional WAC Lighting Links

Dimensions and Measurements

Beam Spread
40 Degrees
Depth
3.13 in.
Height
7.38 in.
Length
3.38 in.
Nominal Height
7 in.
Nominal Width
3 in.
Product Weight
1.95 lbs.
Width
3.38 in.

Dimensions and Measurements

Beam Spread
40 Degrees
Depth
3.13 in.
Height
7.38 in.
Length
3.38 in.
Nominal Height
7 in.
Nominal Width
3 in.
Product Weight
1.95 lbs.
Width
3.38 in.

Included Components

Bulb Included
Yes
Shade
No

Included Components

Bulb Included
Yes
Shade
No

Characteristics and Features

Accessory Type
Heads
Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
2700K, 3000K, 3500K, 4000K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Adjustable Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Shade Color
Black, Bronze, White
Shade Material
Metal
Shade Shape
Tapered
System Type
H-Track
Theme
Contemporary

Characteristics and Features

Accessory Type
Heads
Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
2700K, 3000K, 3500K, 4000K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Adjustable Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Shade Color
Black, Bronze, White
Shade Material
Metal
Shade Shape
Tapered
System Type
H-Track
Theme
Contemporary

Electrical and Operational Information

Average Hours
60000 Hours
Color Rendering Index (CRI)
80, 90
Lumens
695, 700, 800, 875, 905, 950
Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
14.5
Watts Per Bulb
14.5

Electrical and Operational Information

Average Hours
60000 Hours
Color Rendering Index (CRI)
80, 90
Lumens
695, 700, 800, 875, 905, 950
Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
14.5
Watts Per Bulb
14.5

Warranty and Product Information

Certifications
ETL, UL
Collection
Impulse
Country Of Origin
China
Energy Star
No
Location Rating
Dry Location
Manufacturer Warranty
5 Year Mechanical, 2 Year Finish
Title 24
Yes

Warranty and Product Information

Certifications
ETL, UL
Collection
Impulse
Country Of Origin
China
Energy Star
No
Location Rating
Dry Location
Manufacturer Warranty
5 Year Mechanical, 2 Year Finish
Title 24
Yes
