ZLINE Professional 280 - 700 CFM 46 Inch Wide Outdoor Insert Range Hood
Model:721-304-46
Details
The ZLINE 721-304-46 is a 46 in. outdoor approved stainless steel range hood insert with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 700 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. With its classic 304 outdoor grade stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This range hood insert has a ducted vent with easy, simple installation. Experience Attainable Luxury® in the heart of your home, with a ZLINE range hood. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty.
Features:
- Powerful air flow requires ducted, external venting
- Easy-to-use push button controls lets you easily control fan speed and lighting
- 4-Speed fan control (280/420/560/700) to choose the appropriate air flow for your cooking situation
- 700 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
- Ductwork easily connects to the top of the range hood
- Dishwasher-safe Stainless Steel Baffle Filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 110V/60HZ
- Please note the position of a grill lid can block the range hood filters and decrease range hood performance. We recommend moving the range hood to accommodate your grill lid or ensure range hood depth will surpass the size of the grill and mounted 38-42 inches above the grill
- Covered under a 3 year parts warranty
Specifications:
- CFM: 280, 420, 560, 700
- Sones: 1.1, 2.5, 4.3, 5.3
- Nominal Width: 46"
- Width: 46"
- Height: 14-3/16"
- Depth: 21"
- Duct Size: 8" Round
- Amperage: 5A
- Voltage: 120V
- Wattage: 550W
Manufacturer Resources

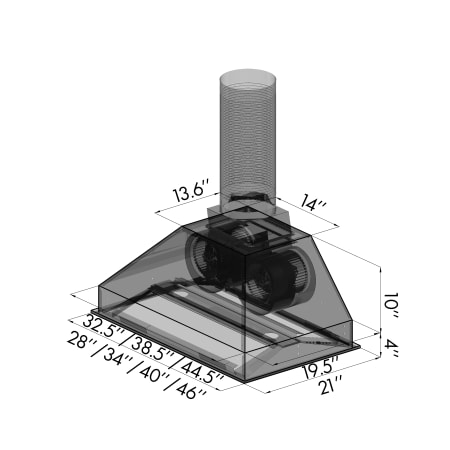

Installation SheetDimensions and Measurements
CFM | 280, 420, 560, 700 |
CFM (High) | 700 |
Depth | 21 in. |
Duct Size | 8" Round |
Height | 14.2 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 46 in. |
Product Weight | 60 lbs. |
Width | 46 in. |
Dimensions and Measurements
CFM | 280, 420, 560, 700 |
CFM (High) | 700 |
Depth | 21 in. |
Duct Size | 8" Round |
Height | 14.2 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 46 in. |
Product Weight | 60 lbs. |
Width | 46 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Stainless Steel Grade | 304 |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Stainless Steel Grade | 304 |
Electrical and Operational Information
Amperage | 5 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Maximum Sones | 5.3 |
Minimum Sones | 1.1 |
Sones | 1.1, 2.5, 4.3, 5.3 |
Speeds | 4 |
Voltage | 120 |
Wattage | 550 |
Electrical and Operational Information
Amperage | 5 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Maximum Sones | 5.3 |
Minimum Sones | 1.1 |
Sones | 1.1, 2.5, 4.3, 5.3 |
Speeds | 4 |
Voltage | 120 |
Wattage | 550 |
Warranty and Product Information
ADA | No |
Certifications | HVI, ETL |
Collection | Professional |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | Yes |
Title 24 | No |
Warranty and Product Information
ADA | No |
Certifications | HVI, ETL |
Collection | Professional |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | Yes |
Title 24 | No |
