Metalbest Sure-Temp 14" Class A Chimney Pipe Adjustable 0/12 to 6/12 Pitched Ceiling Plate

Model: 214512
|
Item: bci1069199

$147.48
Finish: Galvanized Steel -
1 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

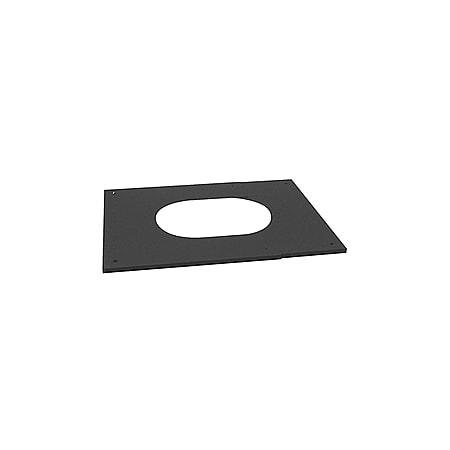

14" Class A Chimney Pipe Adjustable 0/12 to 6/12 Pitched Ceiling Plate from Sure-Temp

The Pitched Ceiling Plate provides a finished appearance where the chimney passes through a sloped ceiling. It is important to choose a plate that matches the pitch of your roof. This adjustable plate works for 0/12 to 6/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 5 inches is a 5/12 pitch.

The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.

Features:

  • Materials: Stainless steel
  • Clearance: 2" to combustibles
  • Allowable Flue Gas Temperatures:
    • Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
    • Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
    • Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)
  • UL Listed: UL-103
  • Warranty: Lifetime Limited Warranty
Additional Metalbest Links

Manufacturer Resources

Installation Guide

Dimensions and Measurements

Maximum Length
45 in.
Minimum Length
27 in.
Pipe Inside Diameter
14 in.
Width
24.5 in.

Dimensions and Measurements

Maximum Length
45 in.
Minimum Length
27 in.
Pipe Inside Diameter
14 in.
Width
24.5 in.

Characteristics and Features

Configuration
Trim
Material
Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Characteristics and Features

Configuration
Trim
Material
Stainless Steel
Pipe Class
Class A
Pipe Shape
Round
Vent Construction
Double Wall

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Electrical and Operational Information

Fuel Type
Coal, Oil, Wood

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime

Warranty and Product Information

Approved for Commercial Use
No
Certifications
UL
Manufacturer Warranty
Limited Lifetime
