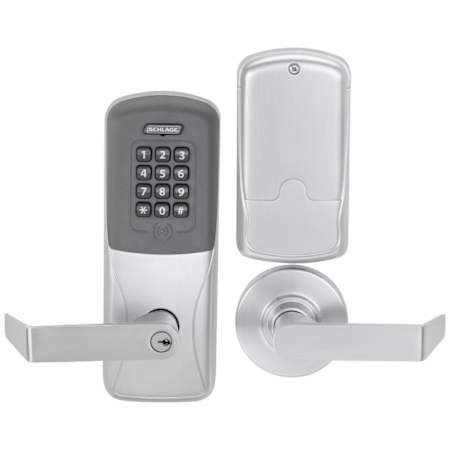

Schlage CO-200-CY-70-PRK-RHO Satin Chrome CO-Series Commercial Electronic Cylindrical Lock with Proximity / Keypad and Rhodes Lever

- Item #: BCI1954690

Offer Ends

Originally $1,054.00, You Save 39%
Satin Chrome
Free Shipping!
12 In Stock
Ships in 1 to 2 business days, by December 23rd


Please select a finish

Earn 642 - 710 points with the purchase of this product Learn More

and earn 350pts

Questions about Schlage CO200CY70PRKRHO626?

Contact us for advice or more details. Our product specialists are here to help.

Configure your Schlage CO200CY70PRKRHO626 CO-Series Commercial Electronic Cylindrical Lock with Proximity / Keypad and Rhodes Lever

  • Backset more info ►

    The backset of your door is the measurement from the edge of the door to the center of the bore hole. Some products have an adjustable backset latch; however this product does require a designation.
    • Please Select One
    • View Product Detail
  • Door Thickness more info ►

    Measure this dimension to determine what your needs are for your door hardware. Please refer to the installation instructions and technical specifications of each product to make sure your doors and the door hardware you choose are compatible.
    • Please Select One
  • Free Keying Option more info ►

    Choose "Keyed Alike" to use the same key on multiple locks or "Keyed Different" to ensure that your locks will have different key codes.

    Please contact customer service for quotes on master keying or to key multiple manufacturers alike.

    Two keys provided per key code.

    • Please Select One


Please select a finish

$641.50 - $709.66

CO-Series Manually or Computer Programmable Classroom / Storeroom Commercial Electronic Cylindrical Lock with Proximity / Keypad and Rhodes Lever

Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-200 is a computer programmable lock that can provide audit trails. It also offers dual credential options (card + PIN) that provide an even greater level of security. The CO-200 can accommodate up to 2000 users and 2000 audits, depending on access control software.

Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more.

In Classroom application, a toggle credential can be used to put the lock into a "locked" or "unlocked" state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.


  • Standalone, offline, computer or manually programmable lock
  • User rights stored on the lock
  • Proximity Reader plus Keypad
  • ANSI A156.25 / BHMA Grade 1
  • Mechanical key override is standard and compatible with multiple cylinder types
  • Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
  • Cylindrical (Tubular) locking mechanism
  • Schlage key-in-lever 6 pin cylinder
  • 12 button keypad compatible with 3-6 digit PIN codes
  • 125 kHz Proximity Reader
  • Rhodes Style Lever


  • Maximum Users: Up to 2000 (depending on access control software)
  • Credential Verification Time: Less Than 1 Second
  • Operating Temperature - Exterior: -31 to 151F (-35 to 66C)
  • Operating Temperature - Interior: 32 to 120F (0 to 49C) due to battery
  • Operating Humidity: 0 - 100% condensing
  • Max Current Requirement: Up to 250 mA
  • Exterior Dimensions:
    • Height: 9.46"
    • Width: 3.44"
    • Projection: 3.67"
  • Interior Dimensions:
    • Height: 10.1"
    • Width: 3.44"
    • Projection: 2.96"
  • Door Thickness: 1-3/8" to 2-3/4"
  • Backset Options: 2-3/8", 2-3/4", 3-3/4", 5"
  • Strike: 4-7/8" x 1-1/4" Square Corner T Strike with 1-3/16" Curved Lip
  • Latch: 1-1/8" x 2-1/4" Square Corner Faceplate, 1/2" Throw

There are industry standards, and then there are Schlage standards. If it has the Schlage name on it, you can be sure they put it through more punishment than you ever will. Schlage has a rich history in security. For over 90 years they've endeavored to develop a complete line-up of security solutions you can trust. Simply put, they believe everyone deserves peace of mind, every day.

Additional Schlage Links

Our SKU: Schlage CO-200-CY-70-PRK-RHO

This product is listed under the following manufacturer number(s):

  • Schlage CO200CY70PRKRHO643
    Aged Bronze
  • Schlage CO200CY70PRKRHO605
    Polished Brass
  • Schlage CO200CY70PRKRHO625
    Polished Chrome
  • Schlage CO200CY70PRKRHO606
    Satin Brass
  • Schlage CO200CY70PRKRHO612
    Satin Bronze
  • Schlage CO200CY70PRKRHO626
    Satin Chrome
  • Schlage CO200CY70PRKRHO616
    Satin Nickel

*Denotes a finish or option that has been discontinued

Schlage CO200CY70PRKRHO626 Product Specifications

User Guide
Specification Sheet
Installation Instructions
ANSI Certification A156.25
Approved for Commercial Use Yes
Auto-Lock Capable Yes
BHMA Certification Grade 1
Backset 2-3/4", 2-3/8", 3-3/4", 5"
Collection CO-Series, Rhodes
Concealed Screws Yes
Cylinder 6 Pin Schlage C
Cylinder Type Single Cylinder
Door Thickness 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8"
Exterior Height 9.46
Exterior Projection 3.67
Exterior Width 3.44
Function Entrance/Office Lock
Handing Left, Right
Handle Design Rhodes
Handle Material Metal
Handle Style Lever
Height 9.46
Input Type Keypad
Interchangeable Core No
Interior Height 10.1
Interior Projection 2.96
Interior Width 3.44
Keyway C123
Latch Faceplate Square Corner
Lever Length 4.9375
Lit Keypad No
Material Zinc
Mortise No
Number of Codes 2000
Power Source Battery
Product Class Commercial
Projection 3.67
Remote Access No
Series CO-Series
Smartphone Enabled No
Temperature (Max) 120, 151
Temperature (Min) -31, 32
Temporary Access Yes
Theme Basic
UL Listed Yes
Usage Monitoring No
Width 3.44

Installation Resource Center

Whether you are installing the product yourself or hiring a professional, our installation Resource Center has everything you need to get your project done. Visit the Installation Resource Center to get started.

Buy the Schlage CO200CY70PRKRHO626 in Satin Chrome at Research Schlage CO200CY70PRKRHO626 in Satin Chrome online. Find Schlage CO200CY70PRKRHO626 in Satin Chrome features and specifications. Get the best deal by comparing the Schlage CO200CY70PRKRHO626 in Satin Chrome today.
