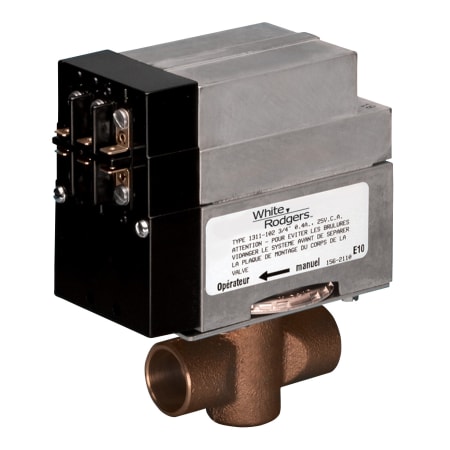

White-Rodgers 3/4" 2-Wire Zone Valve

3/4" 2-Wire Zone Valve

The White-Rodgers 1361-102 3/4" 2-wire zone valve features quiet operation and built-in auxiliary contacts to control burner or circulator relay and compatible with systems up to 50 PSI.

Features:

• 2-Wire, 24 V Valve with screw terminal wiring panel and auxiliary switch
• 3/4" Tubing
• Quiet operation
• Valve stem made of stainless steel
• Automatic recycling manual operator shows valve position at all times
• Built-in auxiliary contacts to control burner or circulator relay
• Motor can be removed from valve assembly without draining system

Specifications:

• 2.0 A at 24 VAC
• Maximum Differential Across Valve: 15 PSI
• Maximum System Pressure: 50 PSI
• Maximum Water Temperature: 240°F
• Flow Capacity Cv: 23.5
• Equivalent Feet of Friction Loss: 2.5
• 15 PSI Max Differential Across Valve
• Thermostat Circuit Rating: 0.2 A @ 24 VAC
