The Kwikset 665RDT-26SV1 has been discontinued
** See similar or replacement items below **

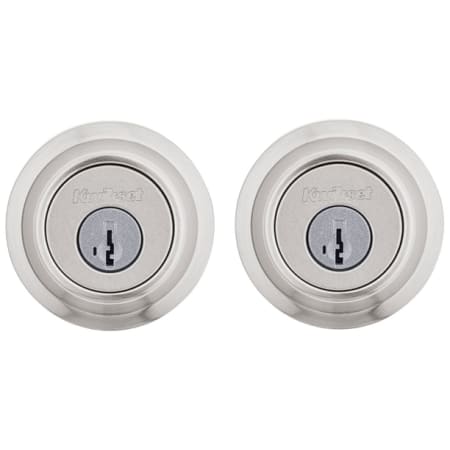

Kwikset Contemporary Double Cylinder Deadbolt with SmartKey
Model:665RDT-26SV1
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Double Cylinder Function: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.
Features:
- Exceeds criteria for BHMA Grade 3 certification
- All metal construction ensures a long lasting and great looking product
- Latch can be adjusted for a backset of 2-3/8" or 2-3/4"
- Includes all necessary hardware for easy installation on standard prep doors
- Complies with the Americans with Disabilities Act (ADA)
- Covered by a Limited Lifetime Mechanical and Finish Warranty
Product Technologies:
BumpGuard™: Lock bumping is an attack technique used to defeat conventional pin and tumbler locks. Kwikset's BumpGuard™ component utilizes a patented side locking bar which replaces the traditional pin and tumbler design providing protection against lock bumping.
SmartKey®:
- This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Door Thickness: 1-1/2", 1-3/4", 1-3/8", 1-5/8"
- Diameter: 2-7/16"
- Function: Double Cylinder
- Product Weight: 2.5 lbs
- Removable Core: No
- Projection: 1-1/16"
- Product Class: Residential
- Cylinder: SmartKey 5 Pin
Manufacturer Resources
Installation GuideSmartKey InstructionsUser CareSpecificationsKwikset WarrantyDimensions and Measurements
Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/8", 1-3/4", 1-1/2", 1-5/8" |
Edge Bore | 1" |
Exterior Height | 2.4375 in. |
Exterior Projection | 1.0625 in. |
Exterior Width | 2.78, 2.4375 in. |
Interior Height | 2.4375 in. |
Interior Projection | 1.0625 in. |
Interior Width | 2.4375 in. |
Product Weight | 2.5 lbs. |
Dimensions and Measurements
Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/8", 1-3/4", 1-1/2", 1-5/8" |
Edge Bore | 1" |
Exterior Height | 2.4375 in. |
Exterior Projection | 1.0625 in. |
Exterior Width | 2.78, 2.4375 in. |
Interior Height | 2.4375 in. |
Interior Projection | 1.0625 in. |
Interior Width | 2.4375 in. |
Product Weight | 2.5 lbs. |
Characteristics and Features
Concealed Screws | No |
Cylinder | SmartKey 5 Pin |
Function | Double Cylinder |
Handing | Reversible, Right, Left |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Material | Zinc |
Number of Keys | 2 |
Removable Core | No |
Rosette Shape | Round |
Theme | Modern |
Trim Design | Contemporary |
Characteristics and Features
Concealed Screws | No |
Cylinder | SmartKey 5 Pin |
Function | Double Cylinder |
Handing | Reversible, Right, Left |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Material | Zinc |
Number of Keys | 2 |
Removable Core | No |
Rosette Shape | Round |
Theme | Modern |
Trim Design | Contemporary |
Manufacturer Technology
SmartKey | Yes |
Manufacturer Technology
SmartKey | Yes |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Certifications | ANSI |
Collection | Contemporary Deadbolt |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Contemporary, Kwikset Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Certifications | ANSI |
Collection | Contemporary Deadbolt |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Contemporary, Kwikset Series |
