The Lithonia Lighting CPANL 2X2 35K WITH BRACKET has been discontinued

** See similar or replacement items below **

Lithonia Lighting
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci4146537

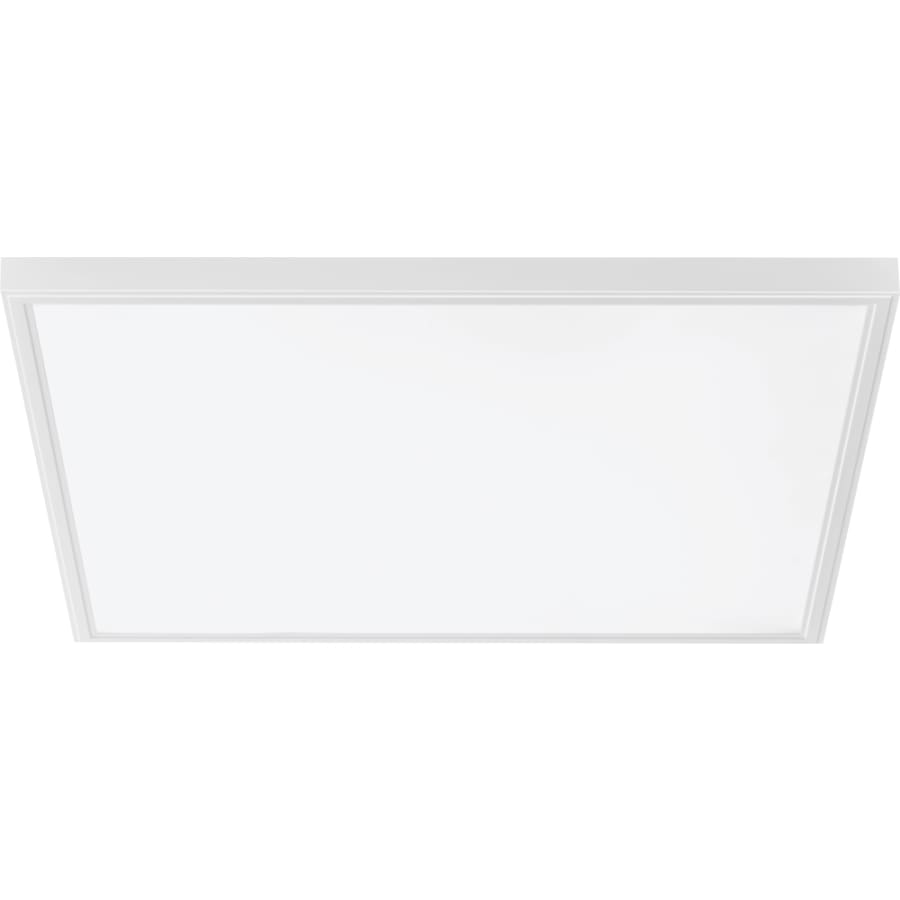

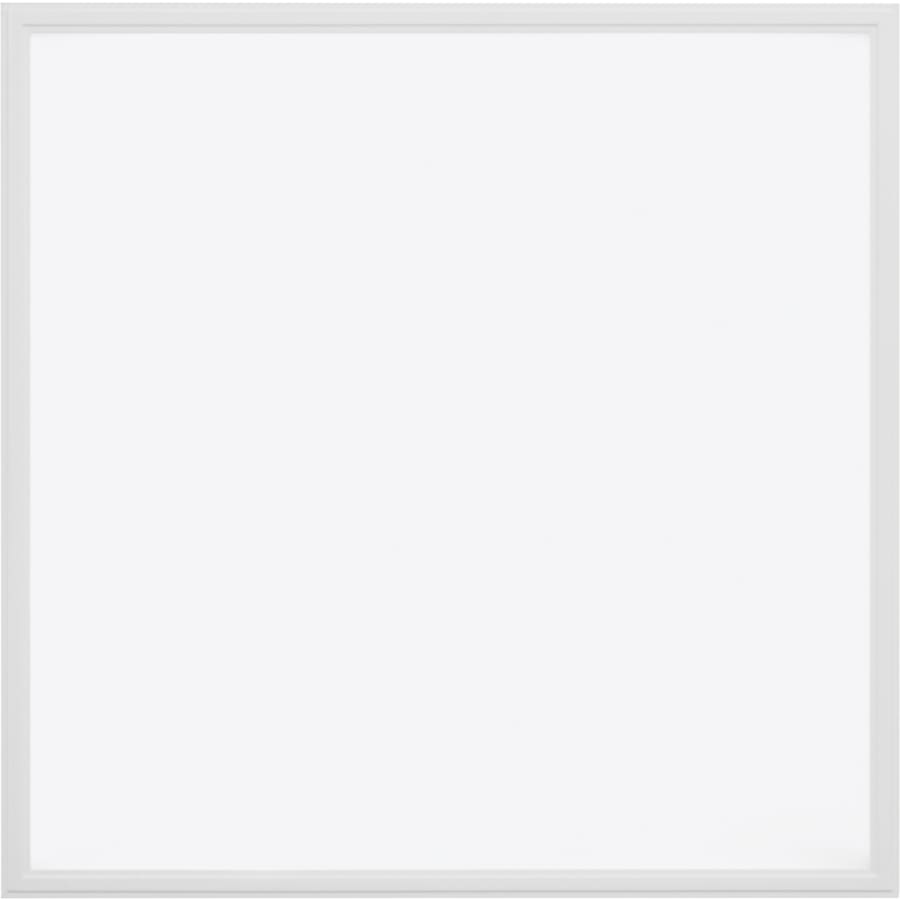

Lithonia Lighting Contractor Select 2 ft. x 2 ft. CPANL LED Flat Panel 3500 lumens CCT with brackets

Model: CPANL 2X2 35K WITH BRACKET
|
Item: bci4146537

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

The 2 ft. x 2 ft. CPANL LED Flat Panel features an integrated driver, with a rigid, deep-drawn backplate that allows CPANL to be suspended or mounted directly to a surface. This CPANL offers 3500 lumens and 3500K CCT for a warm color temperature. CPANL is ideal for applications such as schools, commercial office, retail and healthcare spaces. CPANL panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price.

Features:

  • Versatile mounting options and low-profile design is perfect for restricted plenum spaces
  • Dimmable, high-efficiency LEDs provide general illumination with a 3,500 Kelvin color temperature
  • 0-10 volts dimming driver, dims to 10 percent
  • CSA certified, damp location listed, IC rated and DLC Standard
  • This reliable and rigid flat panel can be recessed, suspended, direct or surface box mounted and offers standard MVOLT 120-277 volts
  • Save on maintenance time and expense with the CPANL extended service life; 70 percent LED lumen maintenance at 60,000 hours (L70/60000)
  • The seamless, aluminum frame is durable and prevents light leak in the corners
  • Emergency battery backup available factory-installed as an option, or ordered separately as an accessory
  • Constructed of steel
  • Made in China
  • Rated for damp locations
  • Covered under a 5 Year Limited manufacturer warranty

Dimensions:

  • Height: 1-1/4"
  • Width: 23-13/16"
  • Depth: 23-13/16"

Specifications:

  • Wattage: 29
  • Color Temperature: 3500K
  • Color Rendering Index: 80CRI
  • Voltage: 120-277
  • Bulb Included: Yes
Additional Lithonia Lighting Links

Dimensions and Measurements

Depth
23.79 in.
Height
1.26 in.
Nominal Width
24 in.
Product Weight
9.45 lbs.
Width
23.79 in.

Dimensions and Measurements

Depth
23.79 in.
Height
1.26 in.
Nominal Width
24 in.
Product Weight
9.45 lbs.
Width
23.79 in.

Characteristics and Features

Color Temperature
3500K
Dimmable
No
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Light Source(s)
1
Theme
Traditional

Characteristics and Features

Color Temperature
3500K
Dimmable
No
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Light Source(s)
1
Theme
Traditional

Electrical and Operational Information

Color Rendering Index (CRI)
80
Lumens
3496
Voltage
120, 277
Wattage
29

Electrical and Operational Information

Color Rendering Index (CRI)
80
Lumens
3496
Voltage
120, 277
Wattage
29

Warranty and Product Information

Collection
Contractor Select
Country Of Origin
China
Location Rating
Damp Location
Manufacturer Warranty
5 Year Limited

Warranty and Product Information

Collection
Contractor Select
Country Of Origin
China
Location Rating
Damp Location
Manufacturer Warranty
5 Year Limited
