Item # bci3167616

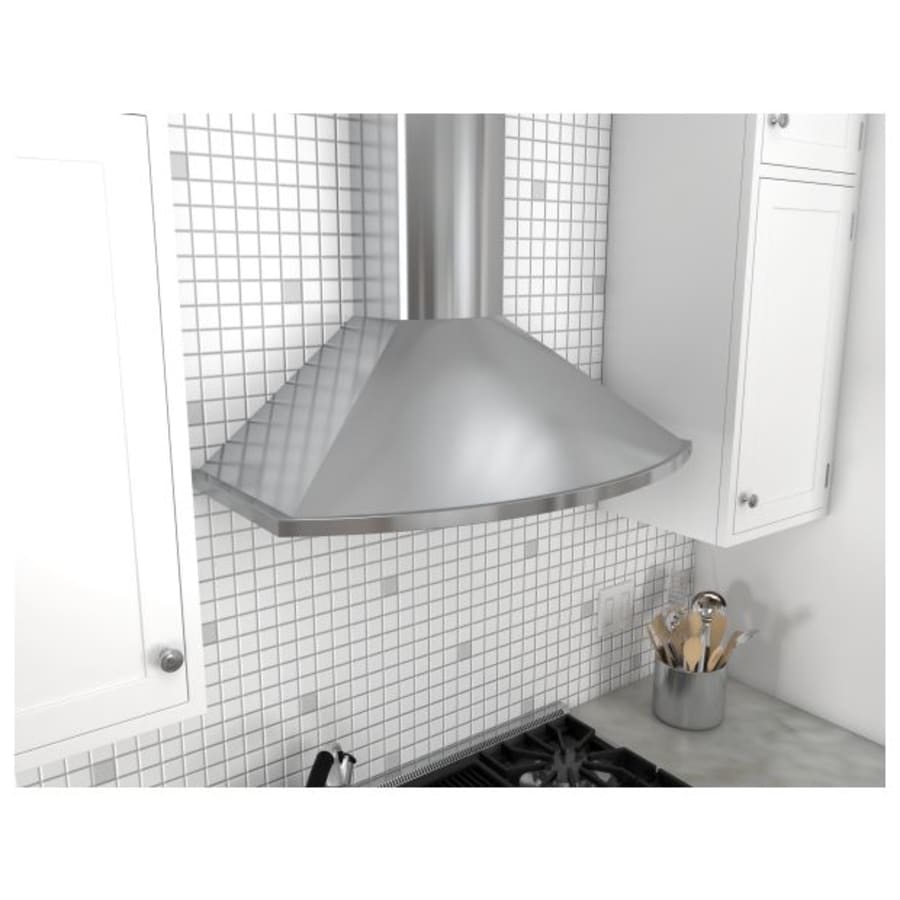

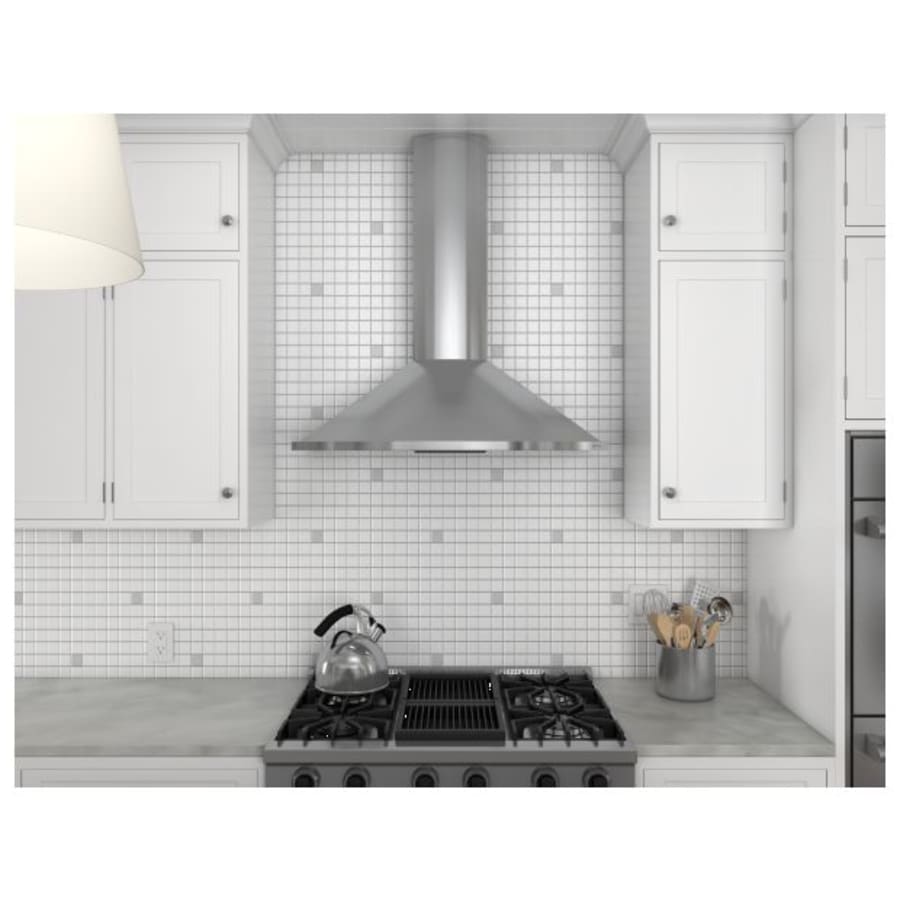

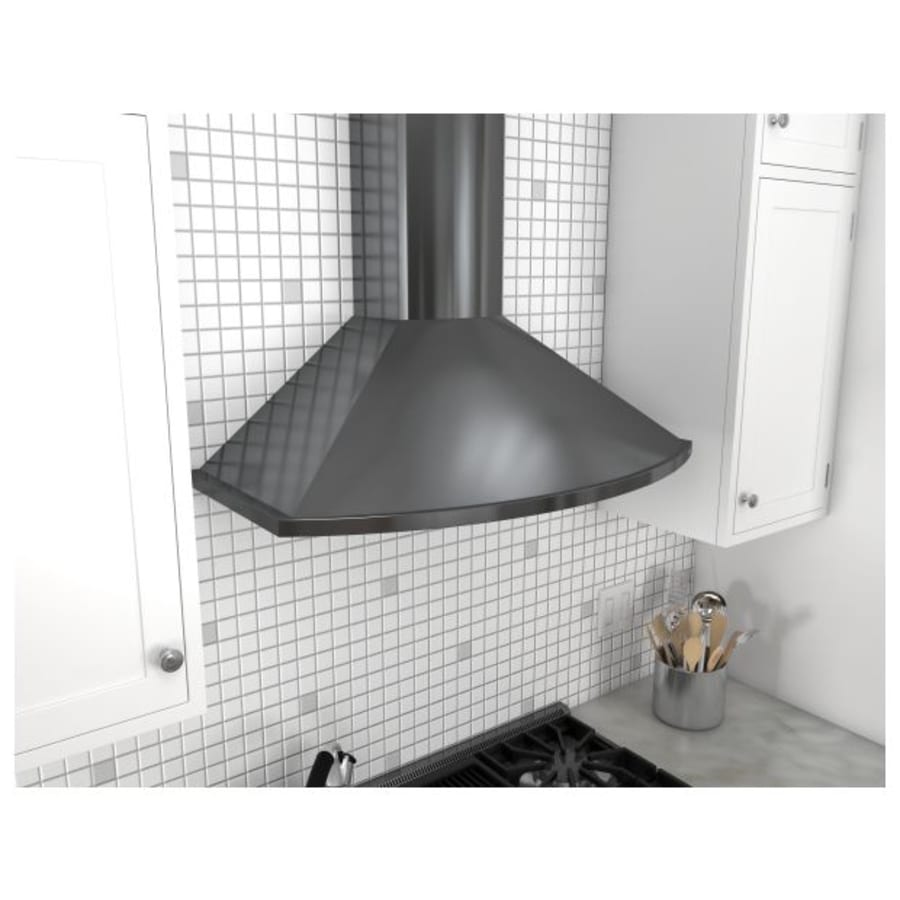

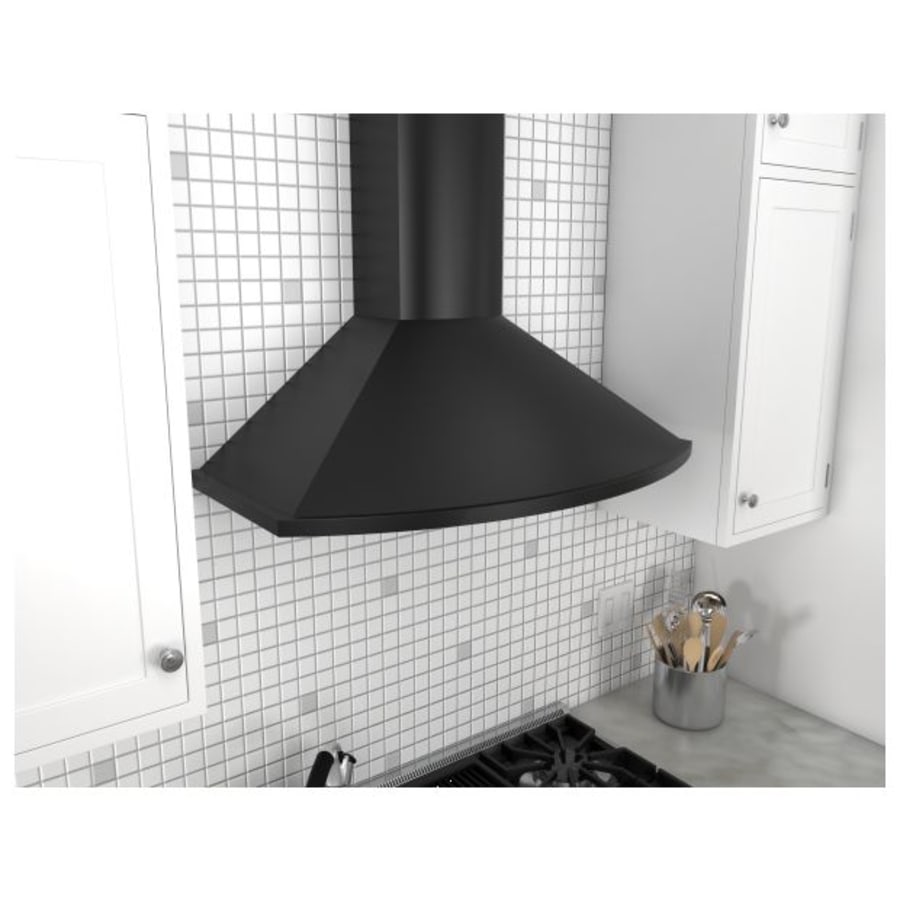

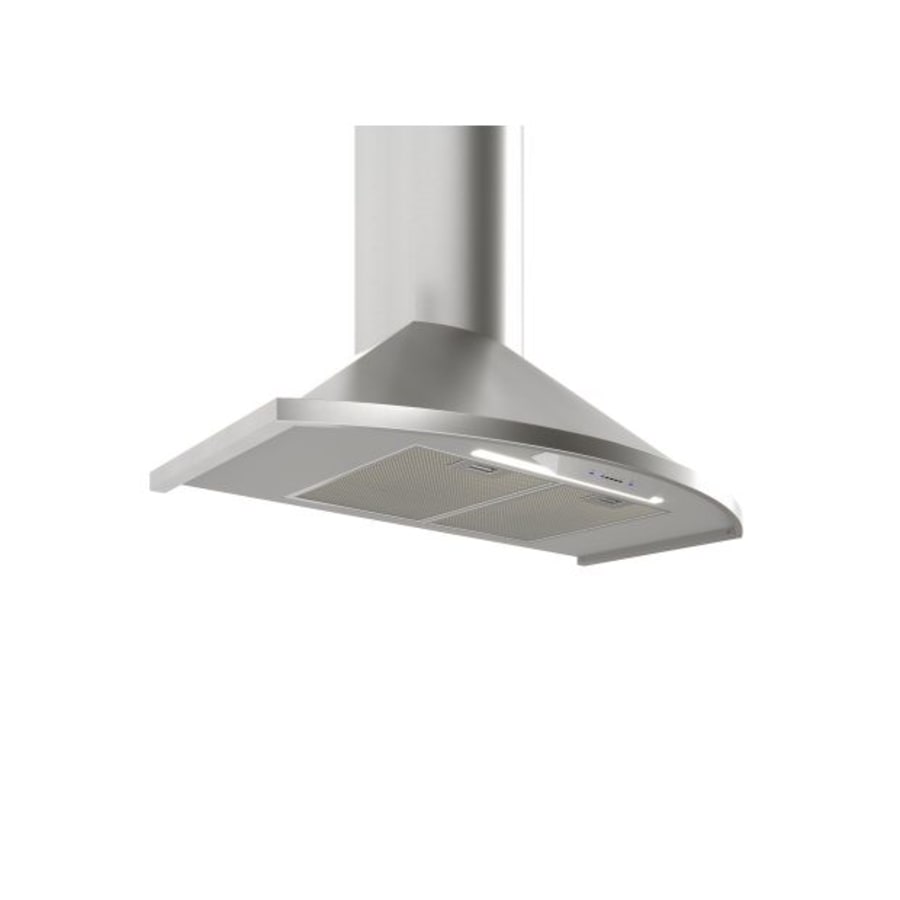

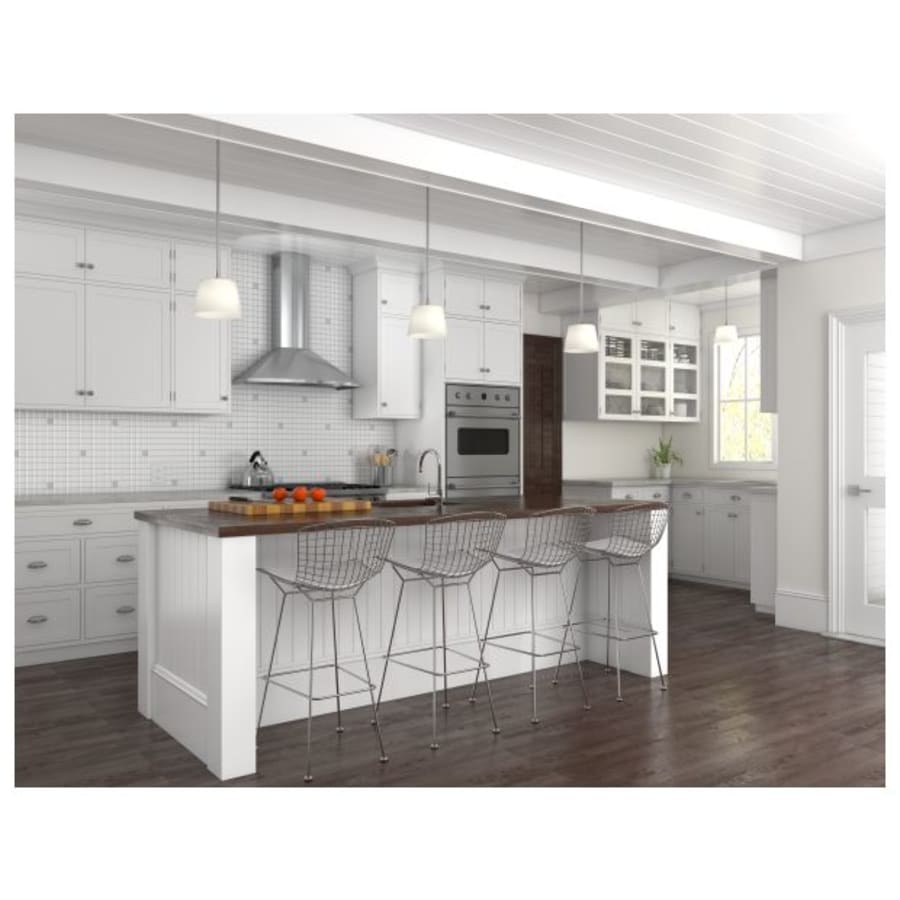

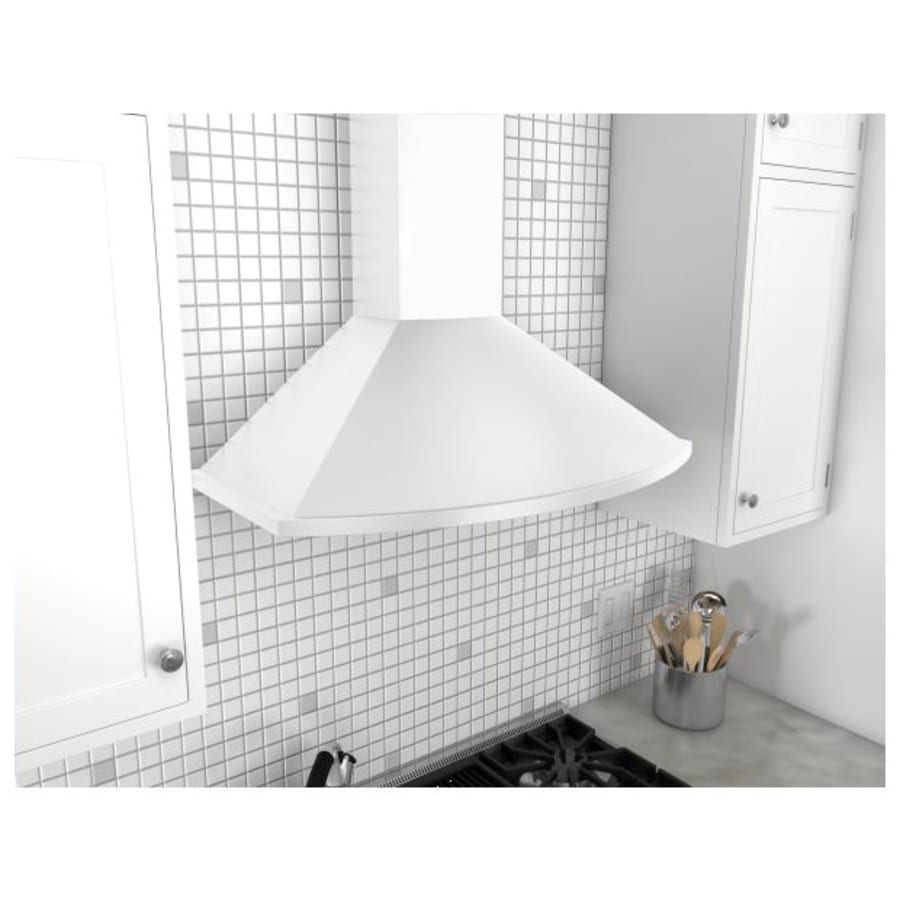

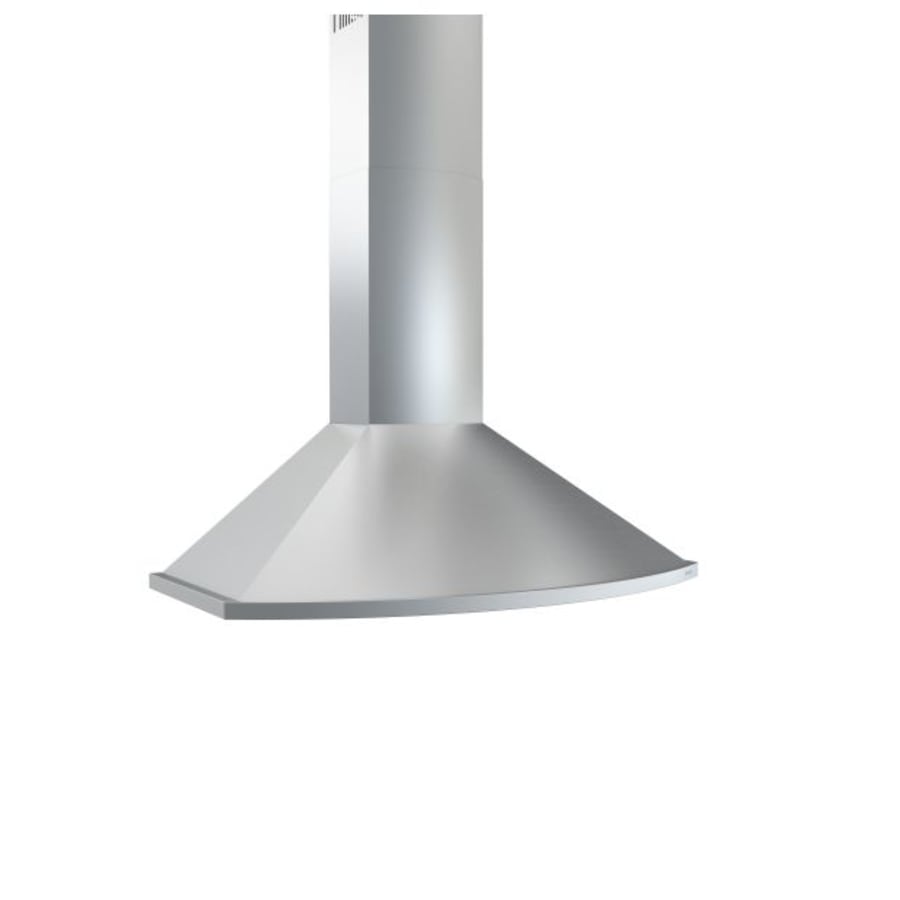

Zephyr Savona 200 - 685 CFM 36 Inch Wide Wall Mounted Range Hood

Model:ZSA-M90DB

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Features:

  • An included 685 CFM built-in blower quickly clears your kitchen of unwanted odors and residual cooking heat
  • Dishwasher safe aluminum filters keep your kitchen clean with low-maintanance

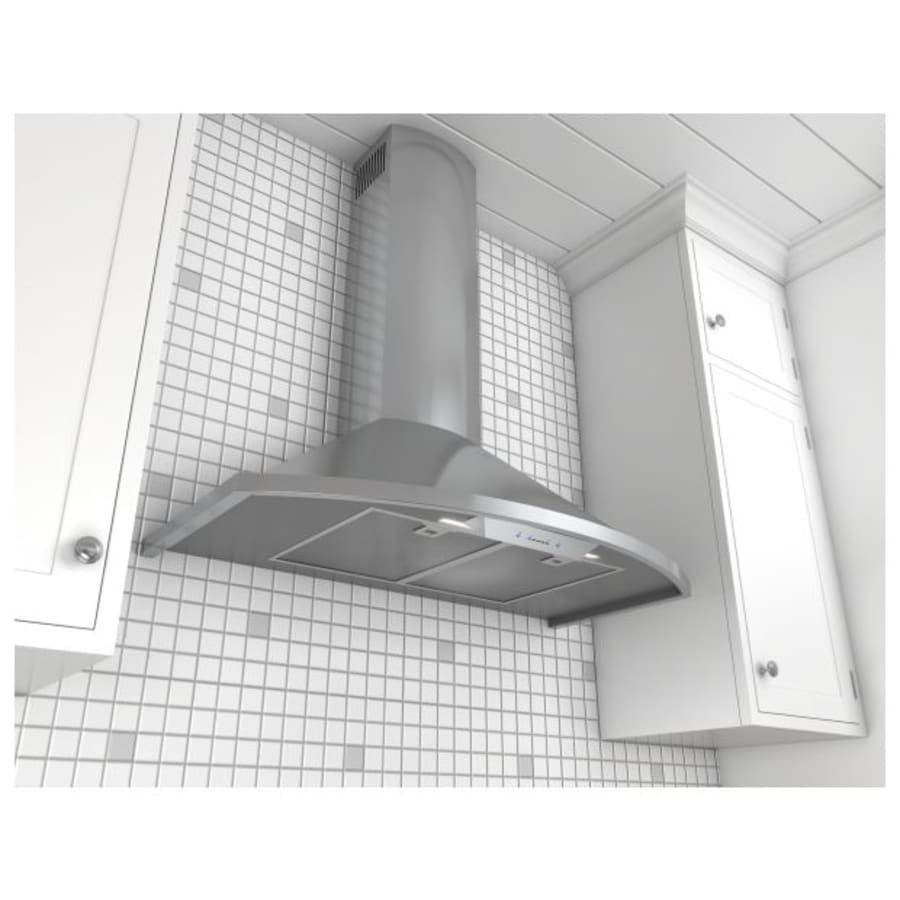

  • The cooking area is illuminated by a BrightStrip™ LED light strip
  • Innovative 5 speed ICON Touch™ controls allow for precise control of your cooking environment
  • Integrated auto delay-off function powers down the range hood after 5 minutes when activated
  • Optional recirculating kit available (model ZRC-00SV)
  • Duct cover extension available for ceilings up to 12' (sold separately)

Product Technologies:

  • Airflow Control Technology™: Zephyr hoods provide Airflow Control Technology™ which is a proprietary feature that limits blower CFM to 590, 390, or 290 to comply with local code restrictions.
  • ICON Touch™ Controls: The 5-speed touch controls provide a wide array of function while seamlessly blending with your kitchen decor. An innovative set of indicators display information about fan speed, light intensity, filter status, and an auto-shutoff feature. On onboard memory chip remembers your last light and fan settings for even greater convenience.
  • Recirculating Range Hood (Optional): Recirculating range hoods require no external venting of air. Instead, air is pushed through a charcoal filtration system that removes pollutants before circulating it back into the home. The benefit of such a system is that household temperatures and humidity are easier to maintain, as the internal air never leaves the kitchen. A recirculating range hood is also generally far easier to install, as complex ventilation systems and vent pipe are not required.

Specifications:

  • CFM: 200 to 685
  • Sones: 6.0
  • Speeds: 5
  • Duct Size: 6" Round
  • Duct Discharge: Vertical
  • Width: 35-7/16"
  • Depth: 19-1/2"
  • Height: 45"
  • Ceiling Height: 96" to 144"
  • Height Above Cooktop: 26" to 34"
  • Watts: 480
  • Voltage: 120
  • Amperage: 4A
Additional Zephyr Links

Dimensions and Measurements

Ceiling Height (Max)
115 in.
Ceiling Height (Min)
90 in.
CFM
200, 290, 390, 685
CFM (High)
685
Depth
19.5 in.
Duct Size
6" Round
Height
28, 45 in.
Height Above Cooktop
26" to 34"
Maximum Height
45 in.
Minimum Height
28 in.
Nominal Width
36 in.
Product Weight
31.5 lbs.
Width
35.4375 in.

Dimensions and Measurements

Ceiling Height (Max)
115 in.
Ceiling Height (Min)
90 in.
CFM
200, 290, 390, 685
CFM (High)
685
Depth
19.5 in.
Duct Size
6" Round
Height
28, 45 in.
Height Above Cooktop
26" to 34"
Maximum Height
45 in.
Minimum Height
28 in.
Nominal Width
36 in.
Product Weight
31.5 lbs.
Width
35.4375 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
LED
Yes
Material
Stainless Steel
Number of Bulbs
1
Theme
Contemporary, Industrial, Modern, Traditional

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
LED
Yes
Material
Stainless Steel
Number of Bulbs
1
Theme
Contemporary, Industrial, Modern, Traditional

Manufacturer Technology

ACT (Airflow Control Technology)
Yes

Manufacturer Technology

ACT (Airflow Control Technology)
Yes

Electrical and Operational Information

Amperage
5
Fan Speeds
5
Frequency
60 Hertz
Maximum Sones
6
Minimum Sones
1
Sones
1, 3, 4, 6
Speeds
5
Voltage
120
Watts Per Bulb
9

Electrical and Operational Information

Amperage
5
Fan Speeds
5
Frequency
60 Hertz
Maximum Sones
6
Minimum Sones
1
Sones
1, 3, 4, 6
Speeds
5
Voltage
120
Watts Per Bulb
9

Warranty and Product Information

Approved for Commercial Use
No
Certifications
HVI
Country Of Origin
USA
Energy Star
No
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
Series
Savona

Warranty and Product Information

Approved for Commercial Use
No
Certifications
HVI
Country Of Origin
USA
Energy Star
No
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
Series
Savona
