Item # bci2624918

The Zephyr ALA-M90BBX has been discontinued

** See similar or replacement items below **

Zephyr

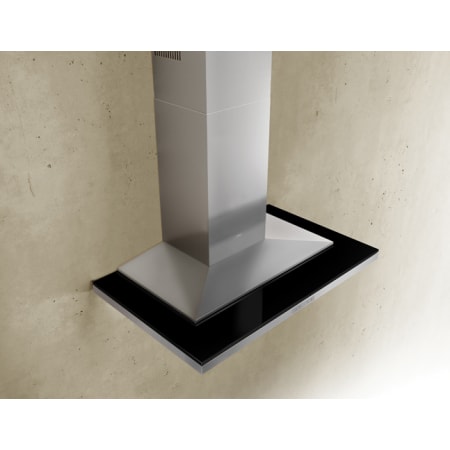

Zephyr-ALA-M90-Layers Wall Mount Range Hood in Black Downward Angle

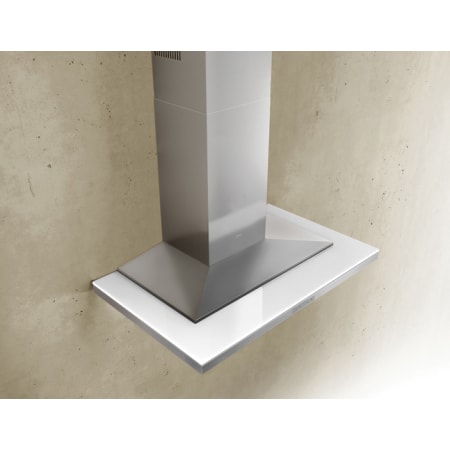

Zephyr-ALA-M90-Layers Wall Mount Range Hood in White Downward Angle
Zephyr-ALA-M90-Layers Wall Mount Range Hood Remote Control
Zephyr-ALA-M90-Layers Wall Mount Range Hood Capacitive Touch Control
Zephyr-ALA-M90-Layers Wall Mount Range Hood LED Light Strip
Zephyr-ALA-M90-Layers Wall Mount Range Hood in Black Downward Angle
Zephyr-ALA-M90-Layers Wall Mount Range Hood in White Downward Angle
Zephyr-ALA-M90-Layers Wall Mount Range Hood Remote Control
Zephyr-ALA-M90-Layers Wall Mount Range Hood Capacitive Touch Control
Zephyr-ALA-M90-Layers Wall Mount Range Hood LED Light Strip
Item # bci2624918

Zephyr 200 - 1000 CFM 36 Inch Wide Arc Wall Mounted Range Hood with RF Remote Control from the Arc Collection

Model:ALA-M90BBX

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

In the design world, Robert Brunner is a game changer. Bringing a sleek, minimalist aesthetic to the kitchen, Zephyr is proud to showcase Brunner's design talents with the Arc Collection.

Features:

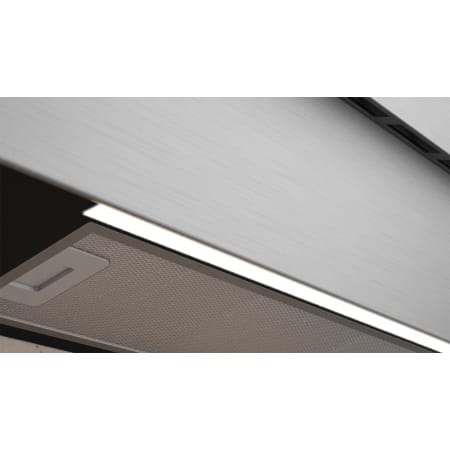

  • Illuminate your cooking area with LED light strip technology

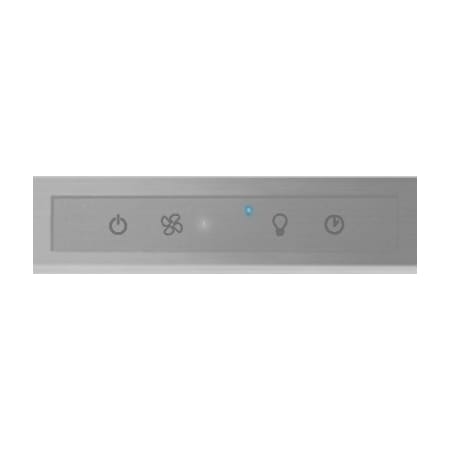

  • Innovative 3 speed capacitive touch controls provide for unprecedented mastery of your kitchen environment
  • Tri-level lighting
  • Decorative mesh filters
  • RF remote control
  • Optional ductless kit available
  • Duct cover extension available for ceilings up to 12' (sold separately)
  • Stylish and beautiful stainless steel and glass construction

Product Technologies:

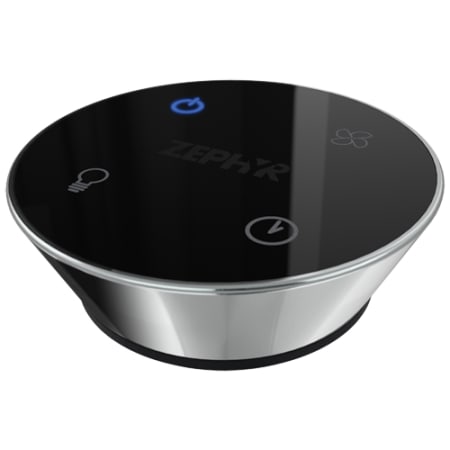

Arc Wireless RemoteArc Wireless Remote: This wireless remote control uses capacitive touch controls to power on your hood, as well as control the fan speed, clock, and lighting. It is small enough to fit in the palm of your hand and can be tucked neatly out of the way, giving maximum space on your countertop.



Recirculating Range Hood (Optional)Recirculating Range Hood (Optional): Recirculating range hoods require no external venting of air. Instead, air is pushed through a charcoal filtration system that removes pollutants before circulating it back into the home. The benefit of such a system is that household temperatures and humidity are easier to maintain, as the internal air never leaves the kitchen. A recirculating range hood is also generally far easier to install, as complex ventilation systems and vent pipe are not required.



Specifications:

  • Ceiling Height (Max): 144"
  • Ceiling Height (Min): 87"
  • CFM: 200, 240, 290, 500, 600, 1000
  • Depth: 22"
  • Duct Size: 6" Round, 8" Round
  • Height: 44"
  • Sones: 1.4, 1.8, 3.2, 6
  • Voltage: 120v
  • Width: 35-3/8"
Additional Zephyr Links

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
87 in.
CFM
1000, 200, 240, 290, 500, 600
CFM (High)
1000
Depth
22 in.
Duct Size
6" Round, 8" Round
Height
44 in.
Nominal Depth
22 in.
Nominal Height
44 in.
Nominal Width
36 in.
Width
35.375 in.

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
87 in.
CFM
1000, 200, 240, 290, 500, 600
CFM (High)
1000
Depth
22 in.
Duct Size
6" Round, 8" Round
Height
44 in.
Nominal Depth
22 in.
Nominal Height
44 in.
Nominal Width
36 in.
Width
35.375 in.

Included Components

Available Without Blower
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
Yes
Light Included
Yes

Included Components

Available Without Blower
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
Yes
Light Included
Yes

Characteristics and Features

Blower Type
Built-In, External, In-Line
Bulb Type
LED
Control Type
Electronic
Duct Discharge
Horizontal, Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
Material
Stainless Steel
Theme
Modern, Contemporary

Characteristics and Features

Blower Type
Built-In, External, In-Line
Bulb Type
LED
Control Type
Electronic
Duct Discharge
Horizontal, Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
Material
Stainless Steel
Theme
Modern, Contemporary

Electrical and Operational Information

Amperage
7
Fan Speeds
3
Sones
1.4, 1.8, 3.2, 6
Voltage
120

Electrical and Operational Information

Amperage
7
Fan Speeds
3
Sones
1.4, 1.8, 3.2, 6
Voltage
120

Warranty and Product Information

Collection
Arc
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Series
Layers

Warranty and Product Information

Collection
Arc
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Series
Layers
